54 34 101 Removing and installing complete convertible top

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

IMPORTANT: Risk of damage: Cover vehicle rear end.
Risk of dirt accumulation: Clean and tape off convertible top compartment.

Close convertible top.

Release hexagon screws (1) on convertible top strip at rear all round.

NOTE: Carry out tasks from luggage compartment.

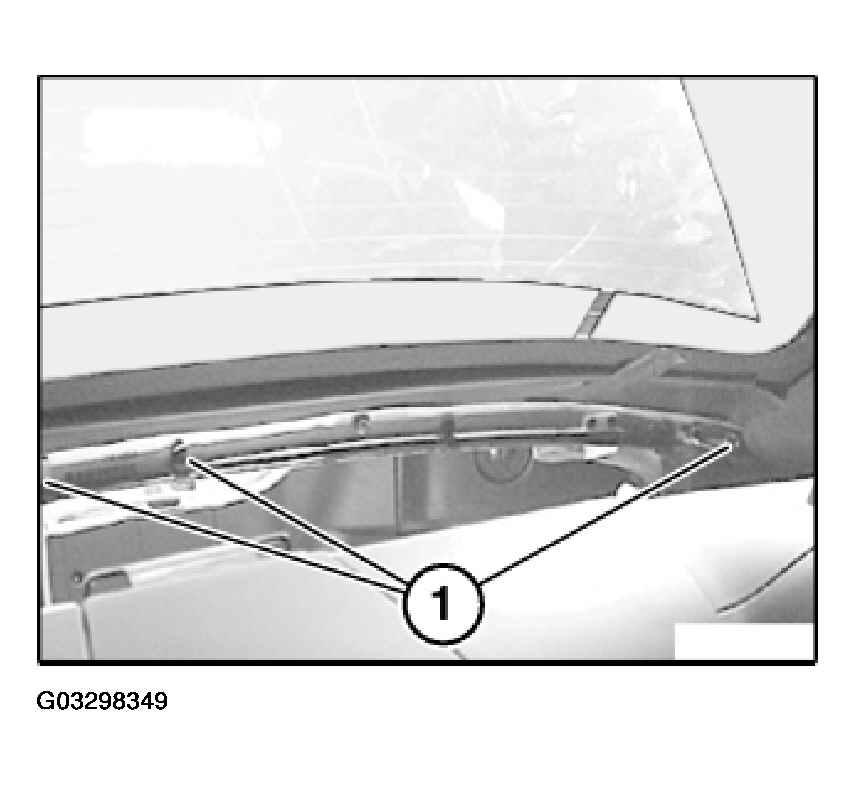

Fig 1: Releasing Hexagon Screws On Convertible Top Strip At Rear All Round
G03298349Courtesy of BMW OF NORTH AMERICA, INC.

Open convertible top halfway.

Detach convertible top compartment seal all round from outer skin.

Open convertible top.

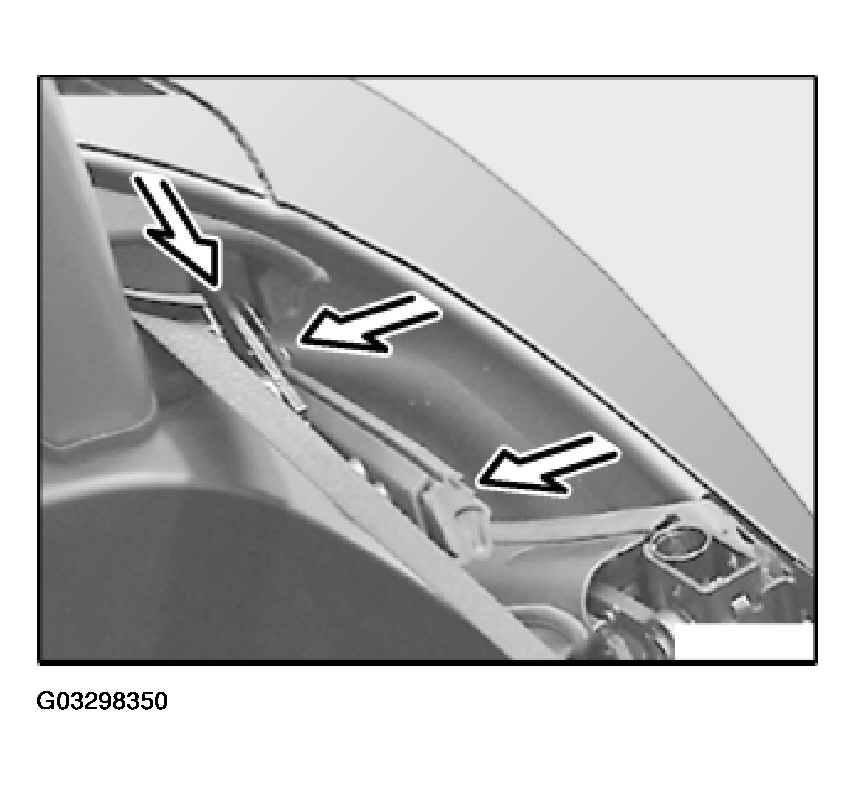

Fig 2: Detaching Convertible Top Compartment Seal All Round From Outer Skin
G03298350Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cover (1) towards top.

Release seal (2) at point (5).

NOTE:
  • New version: Point (5) secured with rubber plug in B-pillar.
  • Old version: Point (5) secured with double-sided adhesive tape.
  • Replacing old version: Cut off rubber plug from seal (2).

Fold tab of seal (2) upwards. Bend retaining lugs (4) to one side slightly and pull seal (2) towards top and feed towards front out of convertible top compartment seal (3).

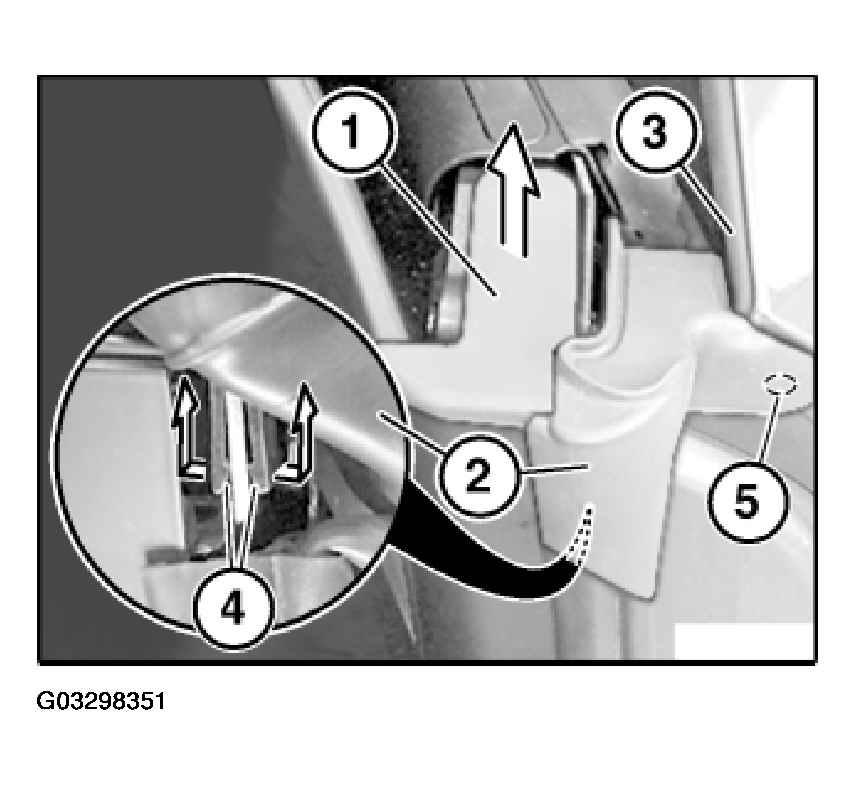

Fig 3: Releasing Seal At Point
G03298351Courtesy of BMW OF NORTH AMERICA, INC.

Remove lock from convertible top.

Unclip removal cover (1) and grill (2) with special tool 00 9 323 (apply at top) on left and right.

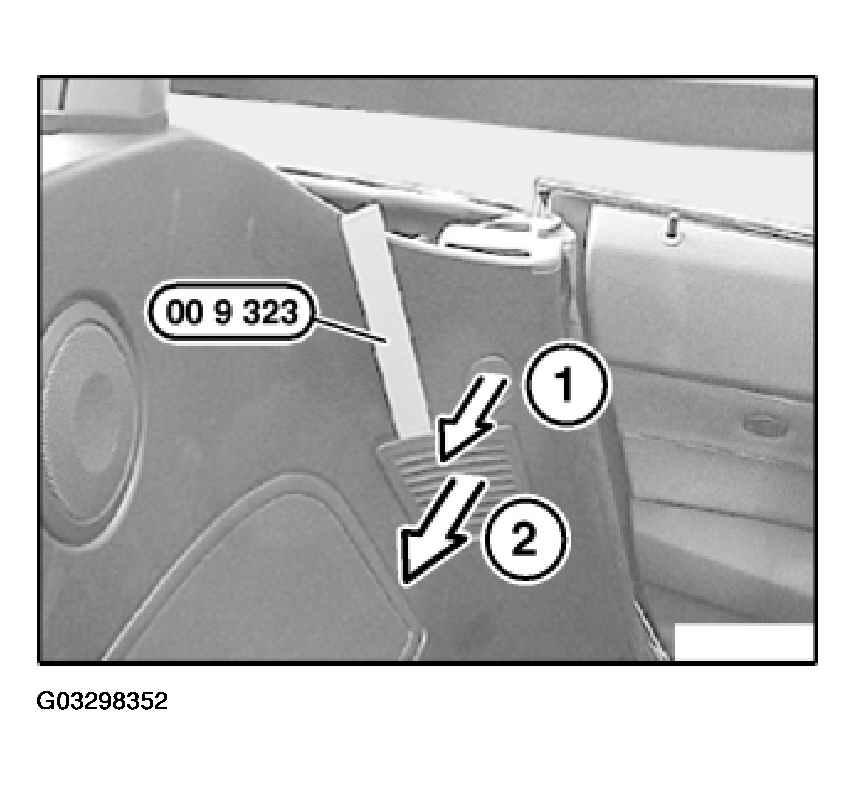

Fig 4: Removing Cover And Grill With Special Tool
G03298352Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew left and right bolts.

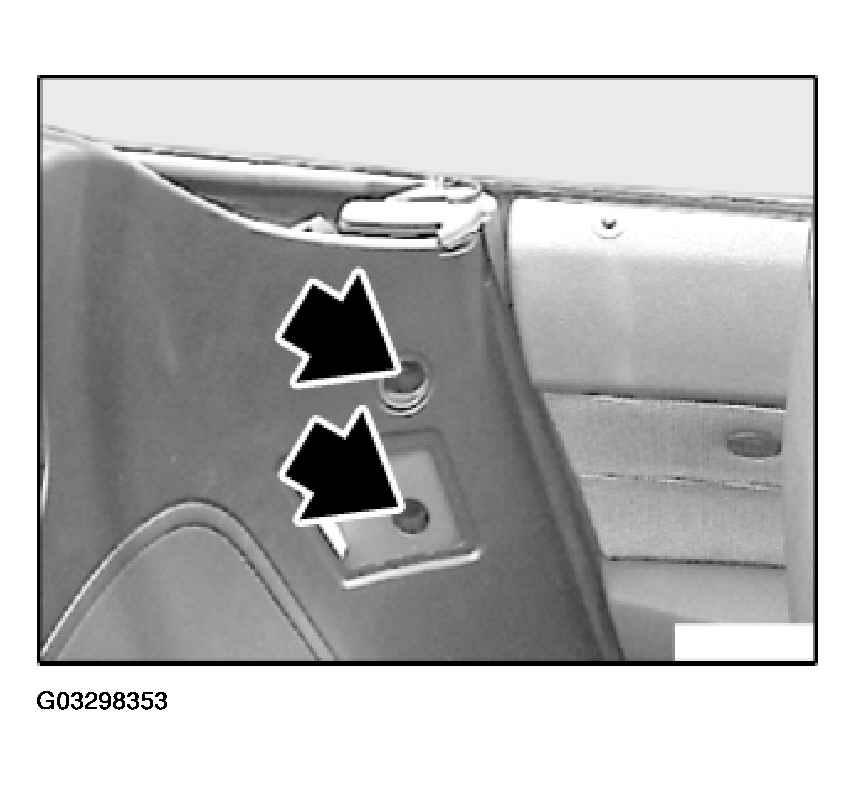

Fig 5: Unscrewing Left And Right Bolts
G03298353Courtesy of BMW OF NORTH AMERICA, INC.

Detach side trim slightly and disconnect plug connections:

  1. EH convertible top only
  2. EH convertible top only
  3. Manual and EH convertible tops

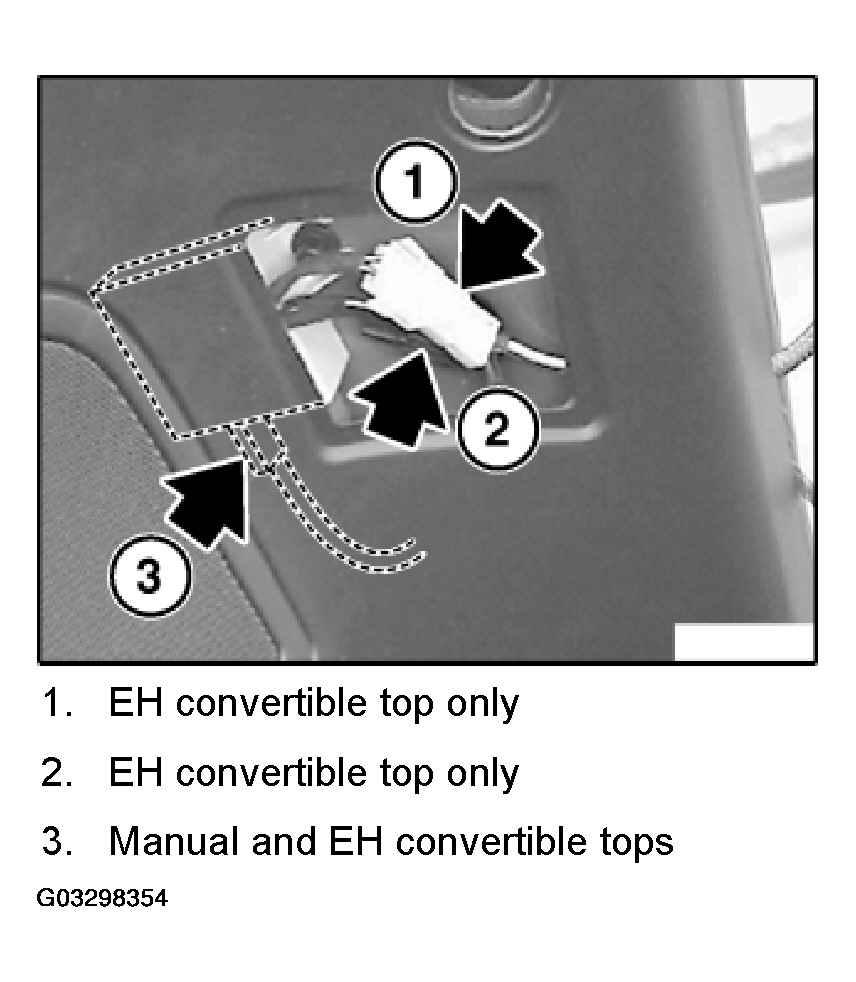

    Fig 6: Disconnecting Plug Connections
    G03298354Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cable.

Installation:

Observe cable routing on B-pillar.

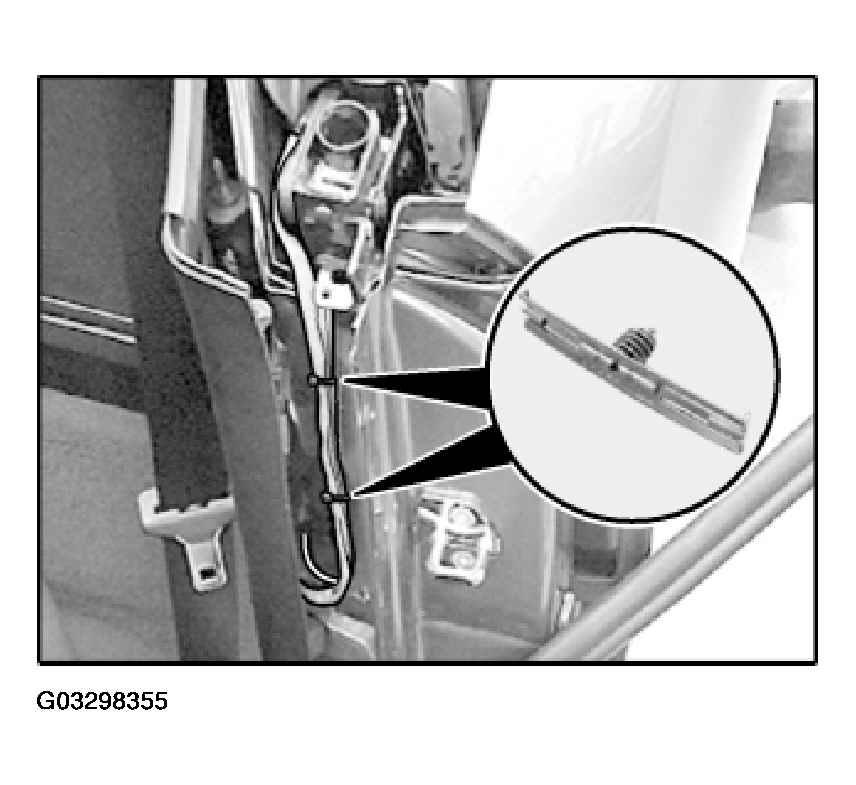

Fig 7: Observing Cable Routing On B-Pillar
G03298355Courtesy of BMW OF NORTH AMERICA, INC.

Press convertible top strip inwards with special tool 00 9 318 and at same time lift out of retainer (1).

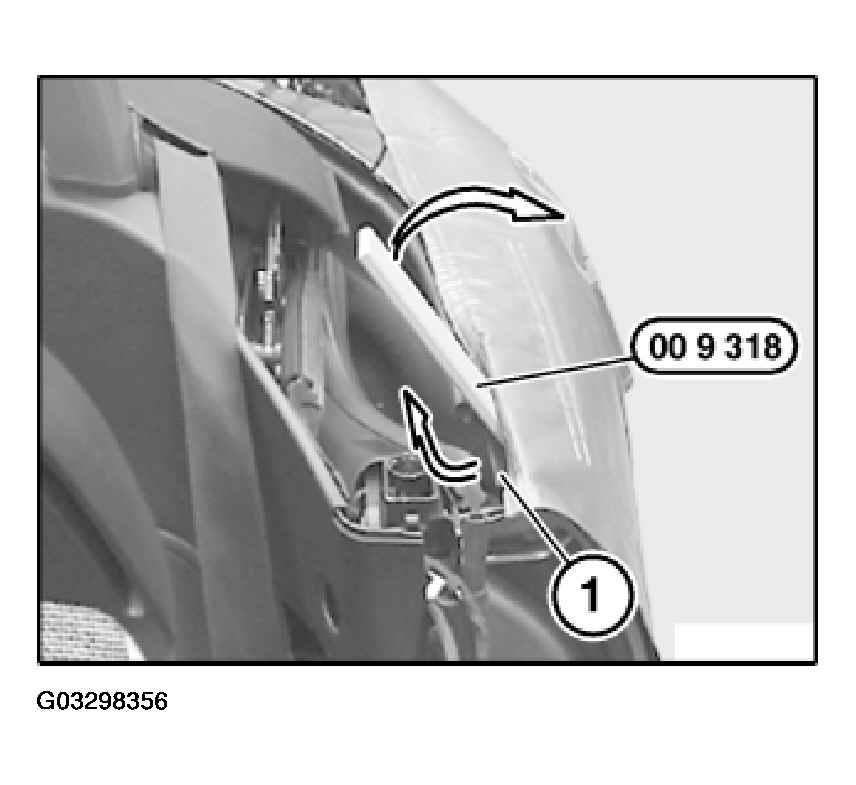

Fig 8: Pressing Convertible Top Strip Inwards With Special Tool
G03298356Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: A 2nd person is needed to help carry out the following tasks.

Lift convertible top frame on left and right out of B-pillar.

If necessary, lift hydraulic unit out of B-pillar on left side.

Lift convertible top (with hydraulic unit) towards front top out of convertible top compartment.

NOTE: If the convertible top jams or the hydraulic unit sticks under the retainer of the convertible top strip:
  • Close convertible top almost (do not lock)
  • Pull hydraulic unit inwards from inside
  • Lift out closed convertible top

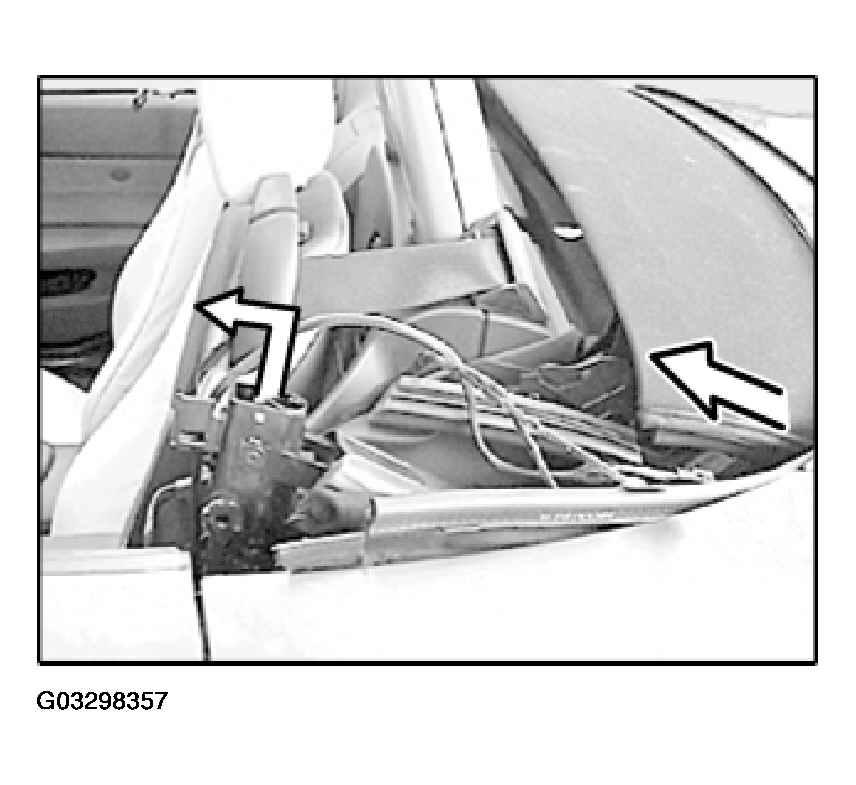

Fig 9: Lifting Hydraulic Unit Out Of B-Pillar On Left Side
G03298357Courtesy of BMW OF NORTH AMERICA, INC.

Set convertible top  down on special tool 54 3 200.

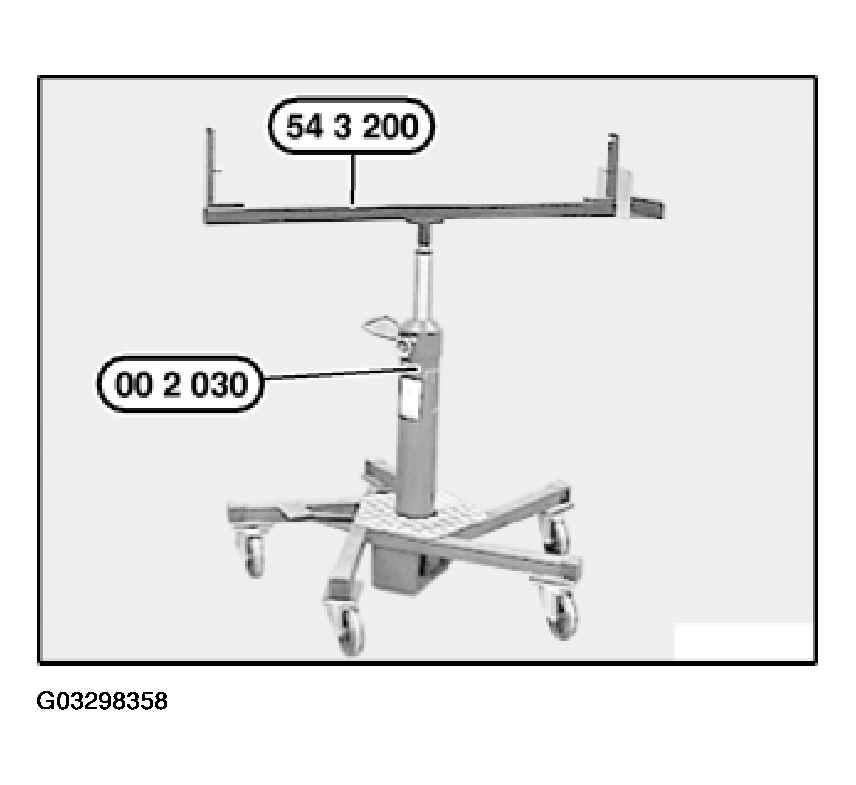

Fig 10: Identifying Convertible Top Special Tool
G03298358Courtesy of BMW OF NORTH AMERICA, INC.
