52 13... Removing and installing/replacing guide for front left or right head restraint

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Replace front head restraint. See 52 13 390 Removing And Installing Or Replacing Front Left Or Right Headrest .
Remove rear panel on front seat backrest. See 52 13 198 Removing And Installing/Replacing Rear Panel On Left Or Right Front Seat Backrest .
Detach backrest cover for front seat. See 52 13 405 Replacing Backrest Cover For Left Or Right Front Seat .

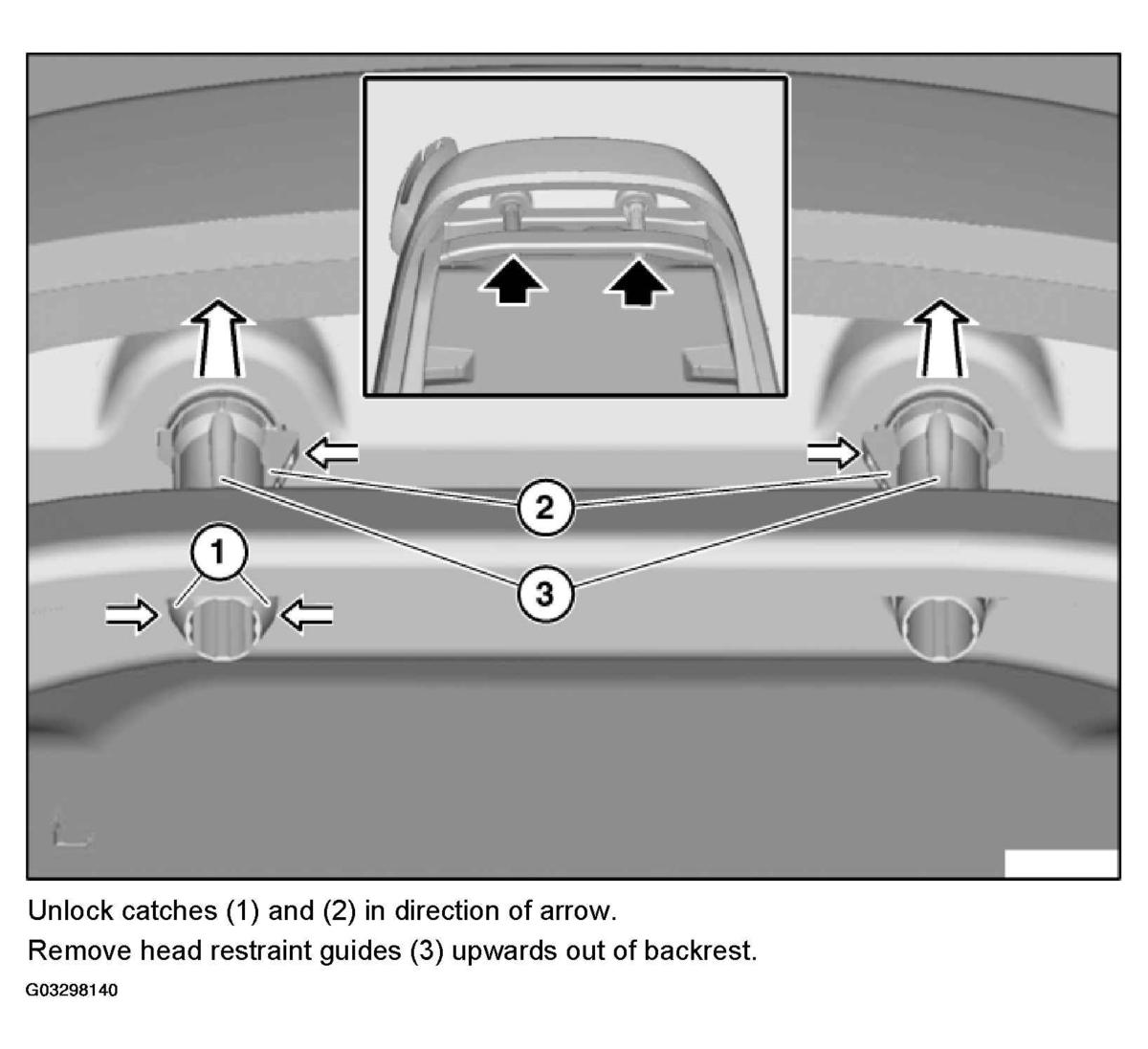

Fig 1: Removing Head Restraint Guide Upwards Out Of Backrest

Courtesy of BMW OF NORTH AMERICA, INC.
