52 13 415 Replacing padding for left or right front seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
US/CND front passenger seat (with OC3 mat) only:
Seat cover must not be separated from padding.
All parts must be replaced completely and released with the diagnosis system in event of defective seat cover, seat heating, OC3 mat or padding.
Seat cover must not be separated from padding.
All parts must be replaced completely and released with the diagnosis system in event of defective seat cover, seat heating, OC3 mat or padding.
This operation is identical to:
Replacing seat cover for front seat. See 52 13 400 Replacing Cover For Left Or Right Front Seat .

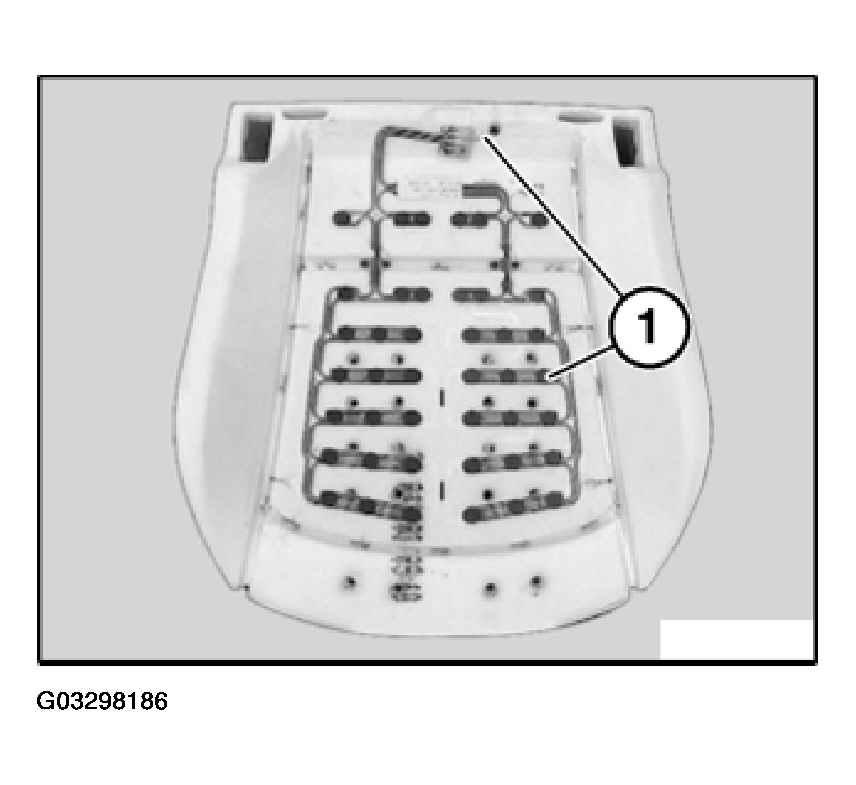

If necessary, remove sensor mat (1).
Installation:
Make sure sensor mat (1) is in correct installation position and its cable routing is correct.
