51 24 100 Removing and installing/replacing rear lid lock (upper section)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Rear Lid Recessed Handle .

Disconnect plug connection (1).

Loosen screws (2).

Push upper section of rear lid lock (3) fully into rear lid and feed out towards front.

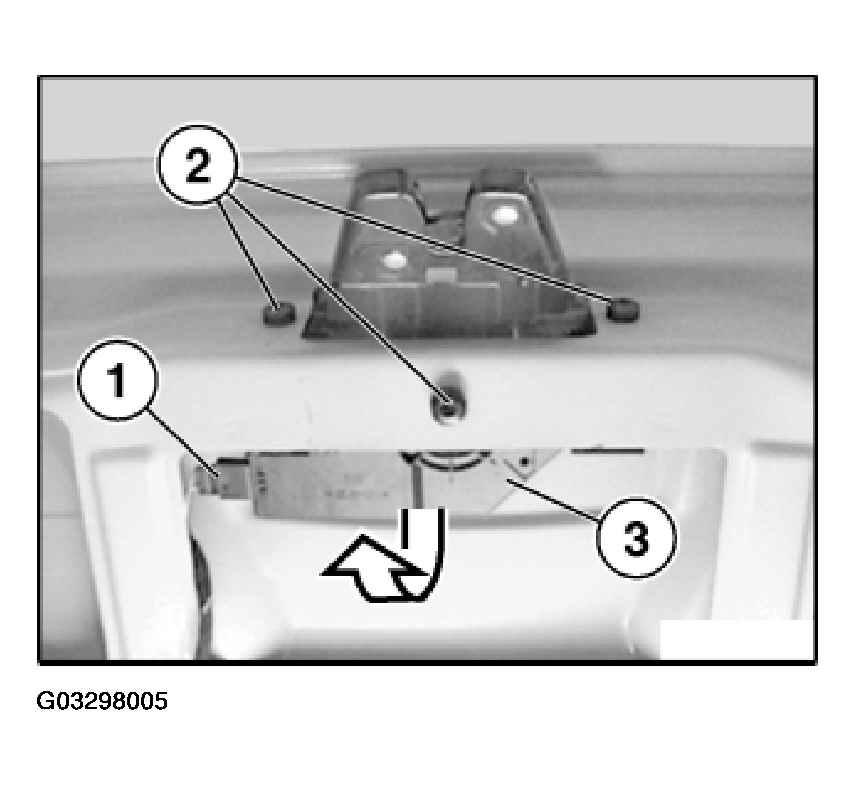

Fig 1: Pushing Upper Section Of Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Use thread-tapping screws.

Remove lock (1).

Lever out Bowden cable (2) and remove upper section of rear lid lock (3).

Installation:

Bowden cable (2) and lock must be correctly fitted.

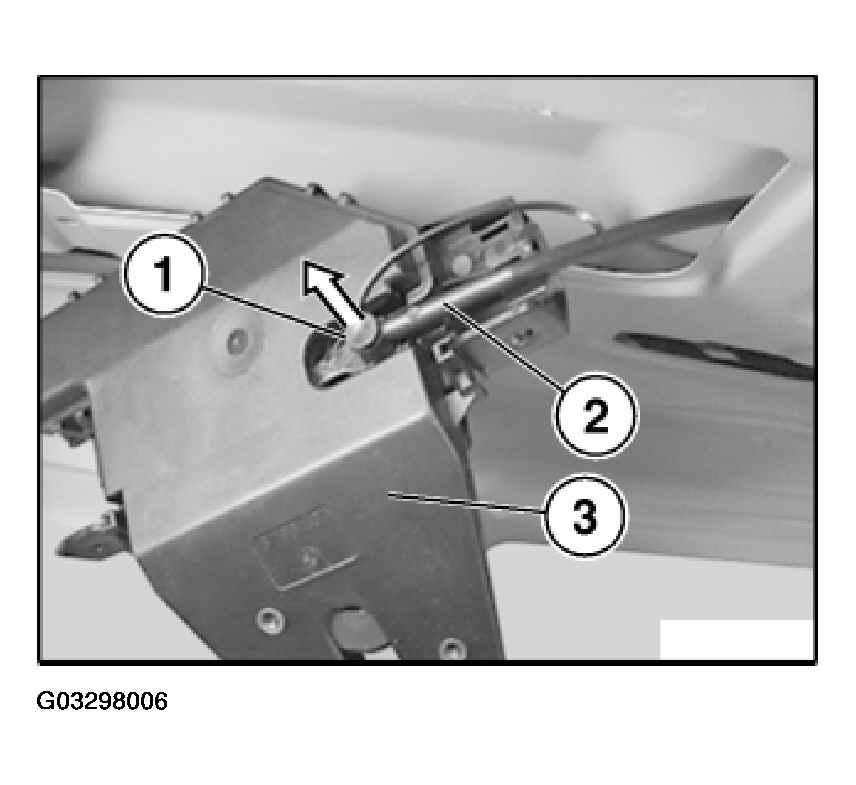

Fig 2: Removing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with trunk lid open.
