51 49... Removing and installing/replacing rear lid recessed handle
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

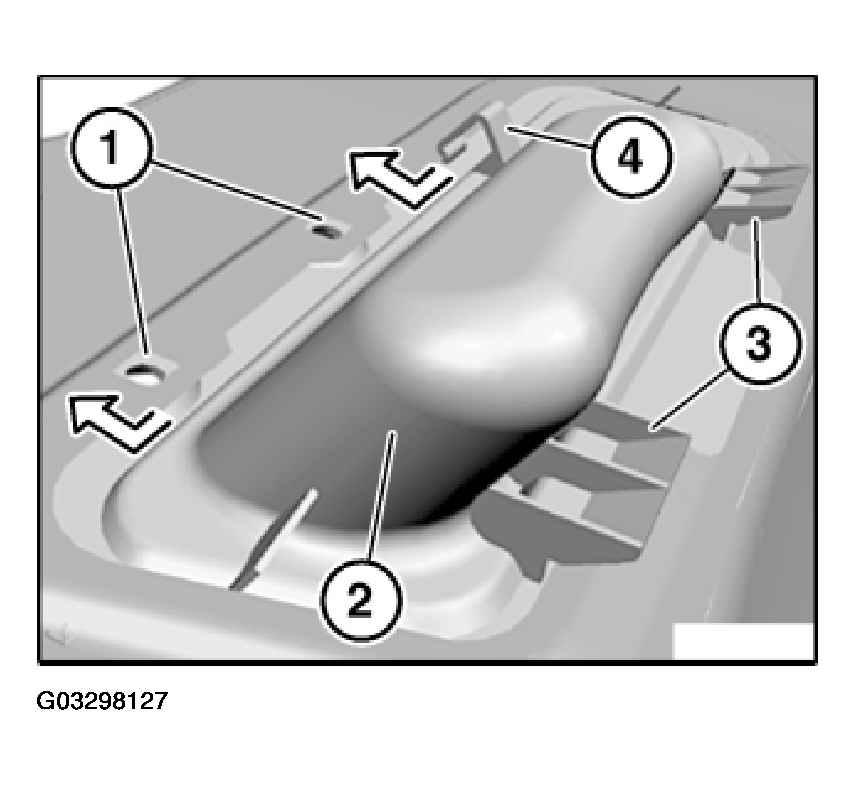

Shown with view of fitted recessed handle on inside of rear lid.
Release screws (1) from expansion nut.
Remove recessed handle (2) in direction of arrow.
Installation:
Following parts of recessed handle (2) must not be damaged or missing:
(3) Retaining hooks
(4) Catch
