63 31 000 Removing and installing/replacing complete ceiling light
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Secure complete ceiling light against falling out.

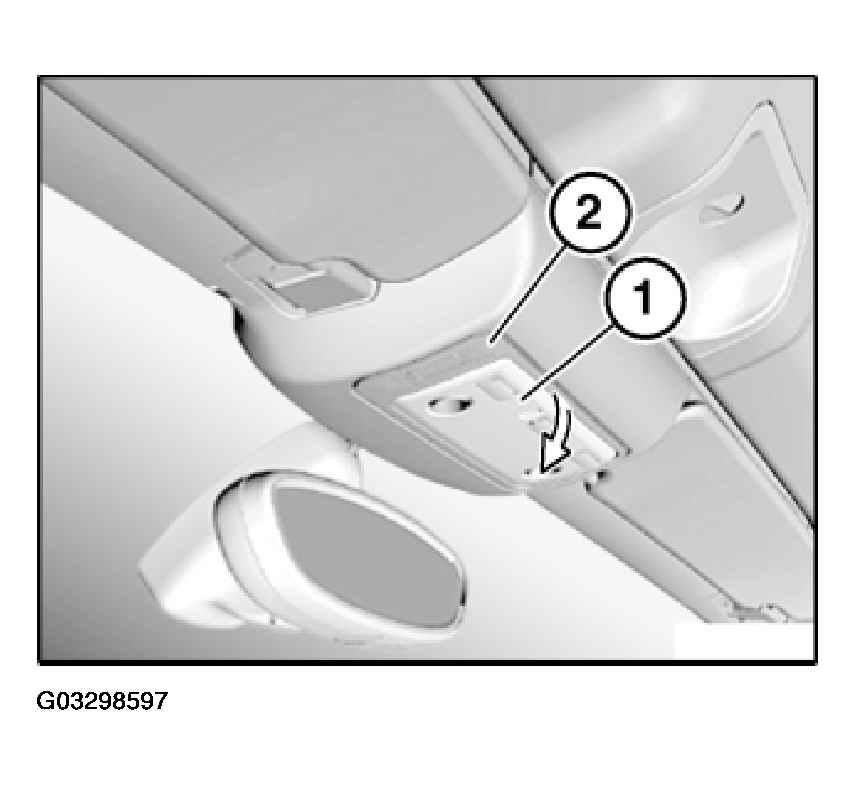

Unclip complete ceiling light (1) in direction of arrow from cowl panel insert (2).
Disconnect associated plug connections and remove complete ceiling light (1).
IMPORTANT:
Follow instructions for handling light bulbs (interior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights)
.
Replacement:
If necessary, remove bulbs.
