51 16 248 Removing and installing/replacing lock on rear storage box

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary task:

Remove cover on trim for rear storage box. See 51 16... Removing And Installing Cover On Panel For Rear Storage Box .

Release screws (1) on lock (2).

Installation:

Press lock (2) to right (3) and tighten screws (1).

Fig 1: Releasing Screws On Lock

G03297950

Courtesy of BMW OF NORTH AMERICA, INC.

Release spring washer (1).

Withdraw pin with spring washer (2).

Disconnect cable (3) from mounting (4).

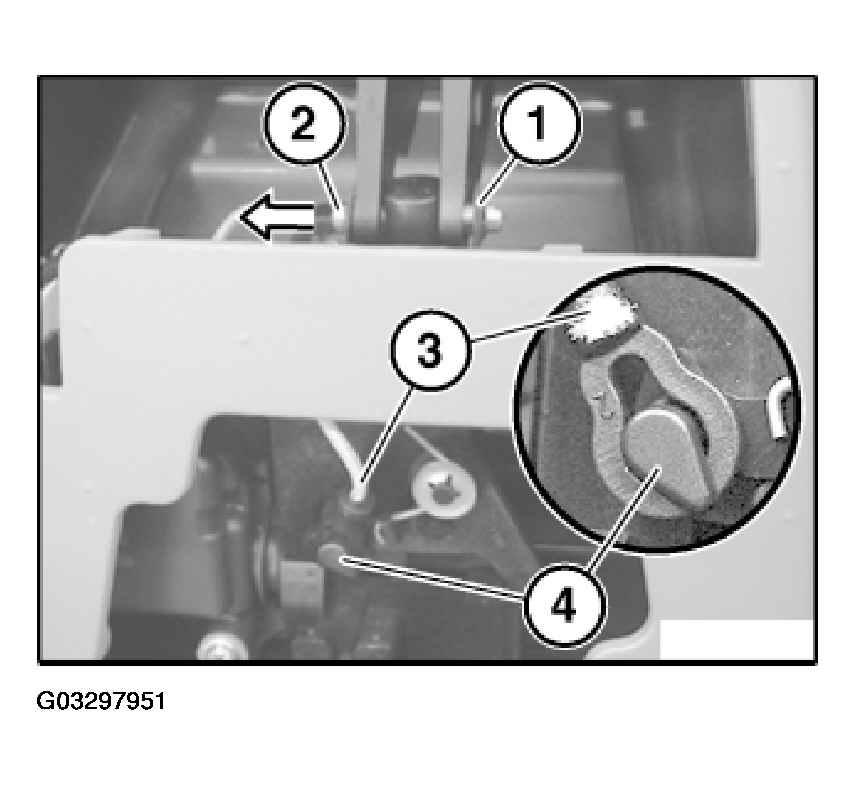

Fig 2: Disconnecting Cable From Mounting

G03297951

Courtesy of BMW OF NORTH AMERICA, INC.

Pull trims for glove box (1) in direction of arrow and pull out lock (2) in direction of arrow towards bottom.

Feed cable (3) out of guides (4)

Remove lock (2).

Installation:

Lay emergency release cable (3) correctly in guides (4) of lock (2).

Fig 3: Pulling Trims For Glove Box In Direction Of Arrow

G03297952

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Join lock and servomotor correctly.

Press lock (2) to right (3) and tighten screws (1).

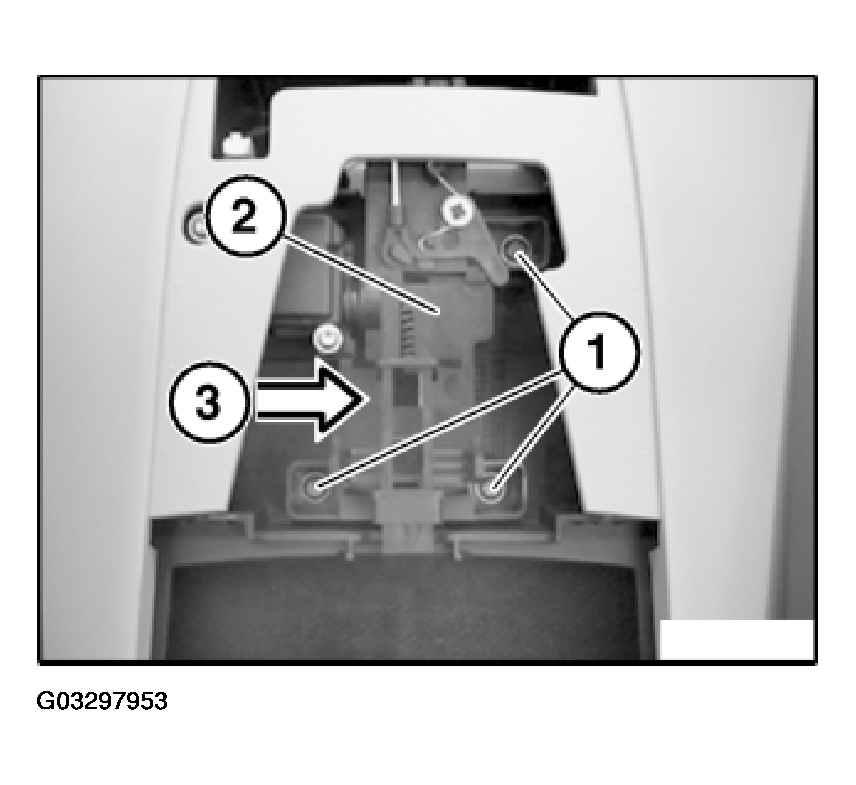

Fig 4: Pressing Lock To Right

G03297953

Courtesy of BMW OF NORTH AMERICA, INC.
