51 32 170 Removing and installing/replacing door window glass, front left or right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Window Cavity Cover Strip .
Remove acoustic insulation.

Door window glass (1) must be opened to dimension (A).

A= approx. 110 mm

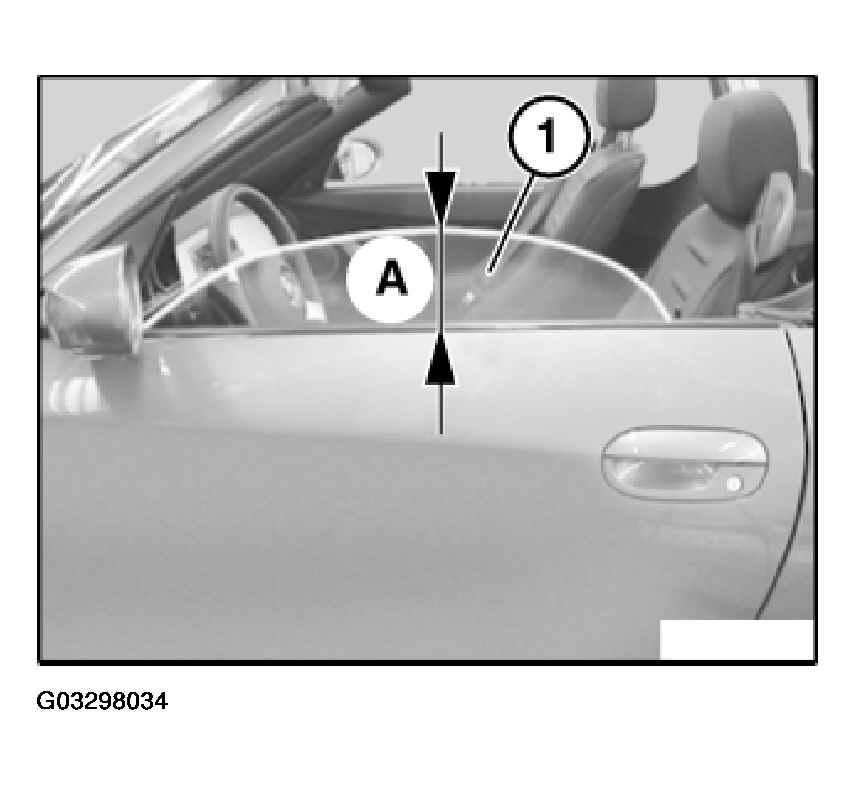

Fig 1: Locating Dimension A In Door Window Glass

G03298034

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Disconnect plug connection (1) from power window motor (2) (risk of trapping).

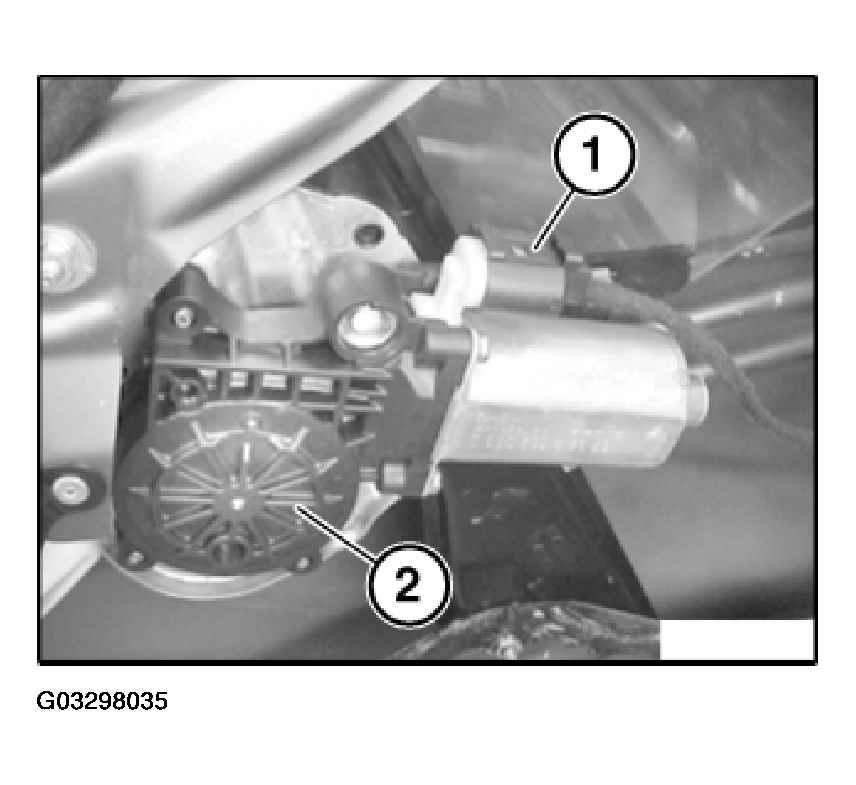

Fig 2: Disconnecting Plug Connection From Power Window Motor

G03298035

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) through bore on inner door panel (2).

Installation:

Insert door window glass (3) with clamping plate (4) in mounting (5).

Tightening torque, see 51 32 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

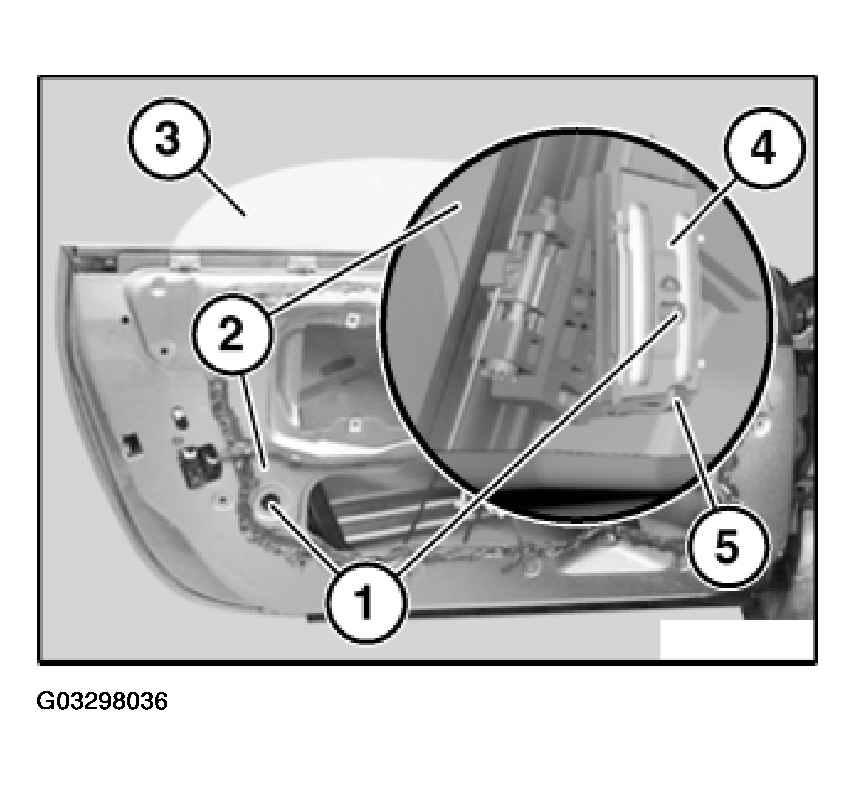

Fig 3: Inserting Door Window Glass With Clamping Plate In Mounting

G03298036

Courtesy of BMW OF NORTH AMERICA, INC.

Slide locking clip (1) to one side.

Grip door window glass (4) and detach mounting (3) from power window (2).

Turn door window glass (4) and lift out.

Installation:

Adjust Door Window Glass .

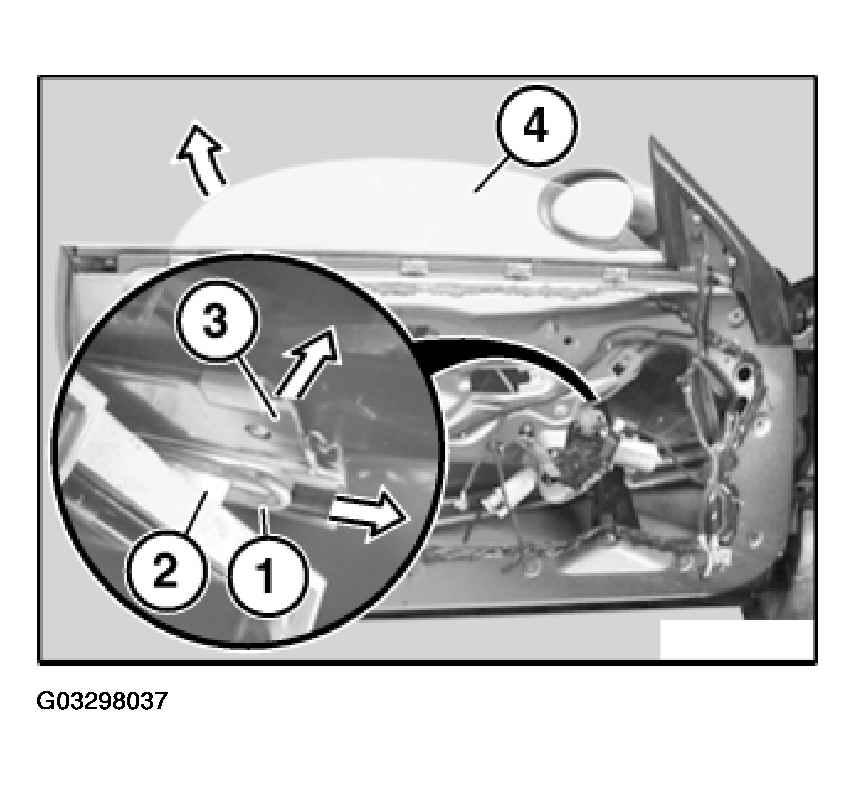

Fig 4: Turning Door Window Glass And Lifting Out

G03298037

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Sliding block (1) must be correctly positioned in mounting (2).

Clamping plate (4) must be correctly engaged with shim (3) on door window glass (5).

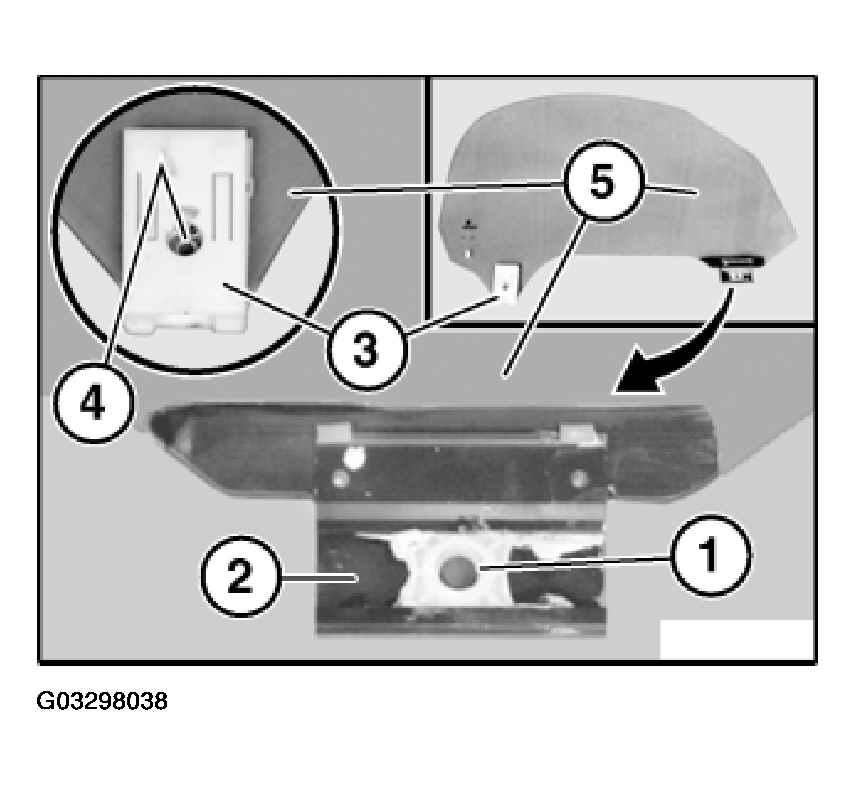

Fig 5: Identifying Sliding Block (1), Mounting (2), Clamping Plate (4), Shim (3) & Glass (5)

G03298038

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Lever out catch (2) from shim (4) and remove with clamping plate (3) from door window glass (1).

Lever out catches (5) and remove clamping plate (3) from shim (4).

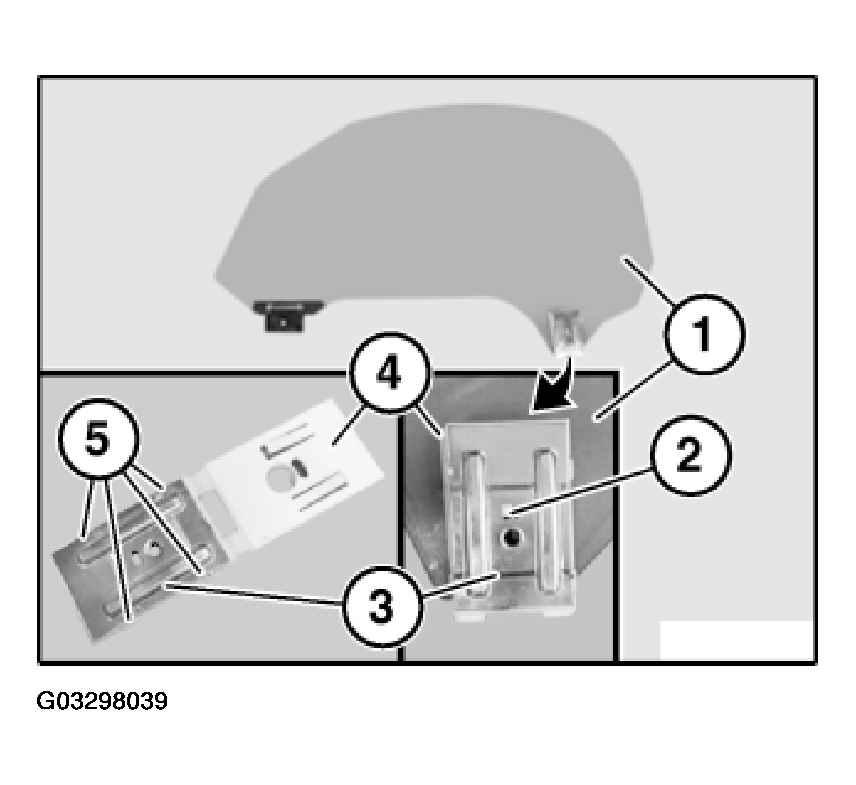

Fig 6: Removing Clamping Plate (3) From Shim (4)

G03298039

Courtesy of BMW OF NORTH AMERICA, INC.
