17 11 000 Removing and installing radiator (M54)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of scalding!
Only perform this work after engine has cooled down.
Only perform this work after engine has cooled down.
NOTE:
Follow instructions for working on cooling system.
Necessary preliminary tasks:
- Remove radiator cover. See Removing Radiator Cover .
- Remove fan cowl. See 17 11 031 Removing And Installing/Replacing Fan Cowl .
- Drain off and top up coolant. See BMW Operating Fluids .
- If fitted:
Remove heat exchanger for automatic transmission fluid. See 17 22 010 Removing And Installing/Replacing Heat Exchanger For Automatic Transmission .
- Remove coolant expansion tank. See 17 11 100 Removing And Installing/Replacing Coolant Expansion Tank (M54) .
- Unlock coolant hoses and detach.

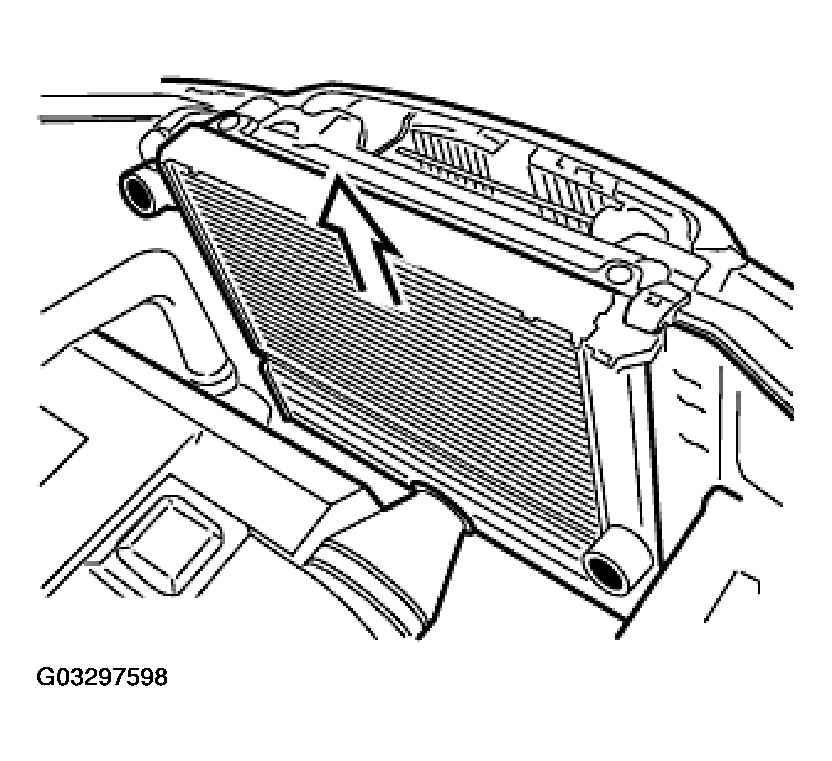

Lift radiator out of mountings.
