17 11 031 Removing and installing/replacing fan cowl
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Switch off ignition.
- Remove radiator cover. See Removing Radiator Cover .

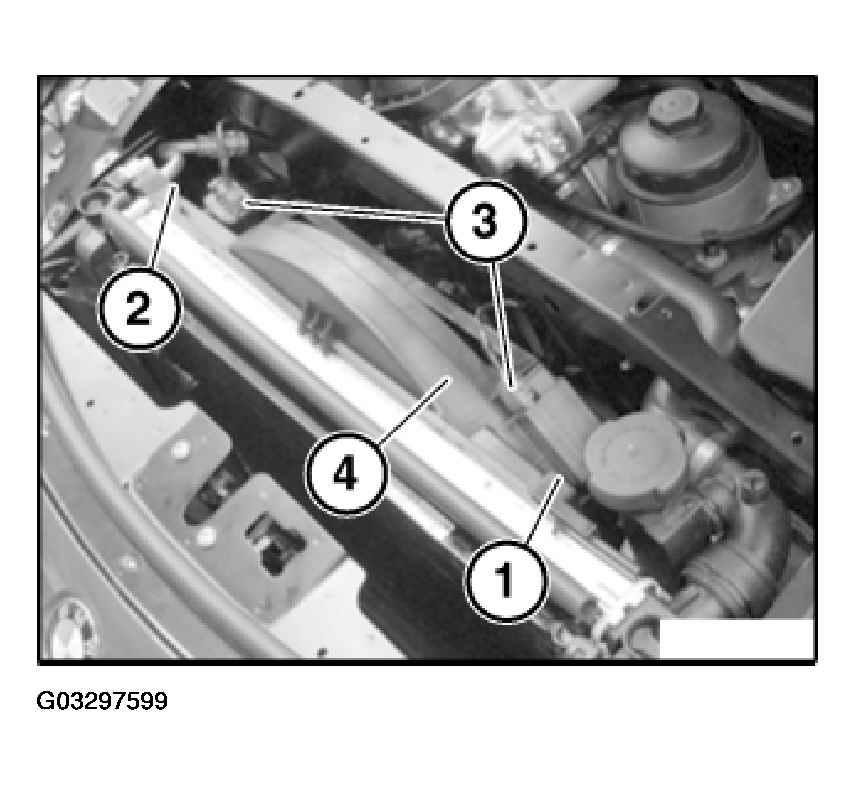

Lift out expansion rivet (1).
Release screw (2).
Unlock and detach plug connections (3).
Remove fan cowl (4) towards top.
NOTE:
Convert AUC sensor when replacing fan cowl.
