62 11 210 Replacing instrument cluster electronics

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove instrument carrier, refer to 62 21 000 REMOVING AND INSTALLING COMPLETE INSTRUMENT CARRIER

Unfasten locking unit, fold over retaining bracket and remove connector.

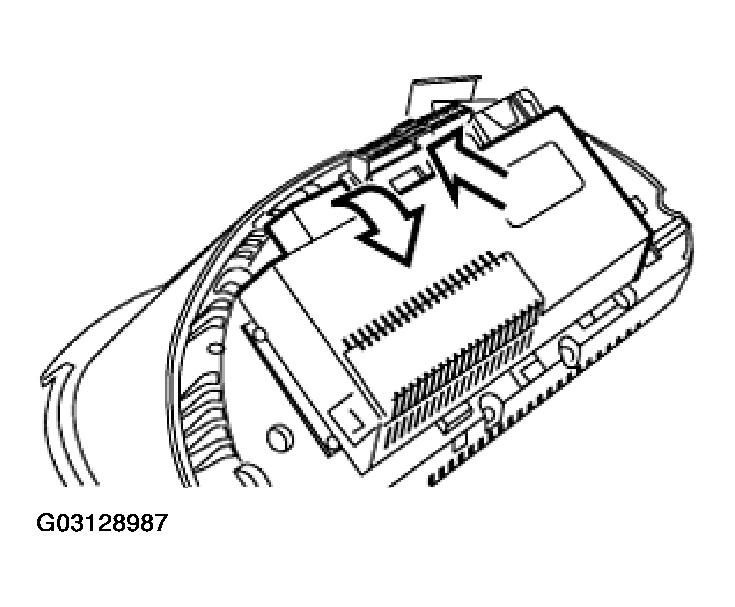

Fig 1: Unfastening Locking Unit & Removing Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten locking unit, slide electronics module sideways and lift out.

Installation:

Encode electronic unit once again after replacement.

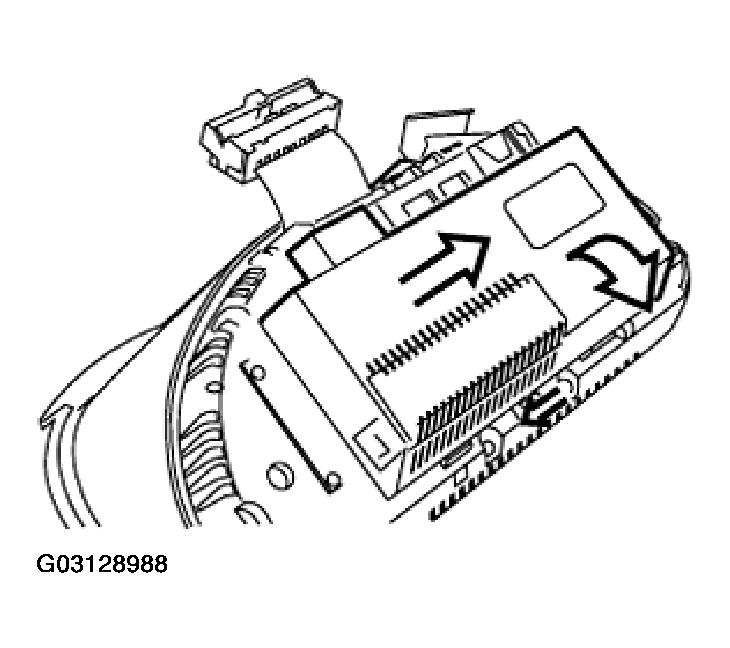

Fig 2: Unfastening Locking Unit & Lifting Out

Courtesy of BMW OF NORTH AMERICA, INC.
