84 50 033 Removing And Installing/Replacing Multiband Telephone Antenna

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2005 BMW 760i, 2005 BMW 760Li, 2004 BMW 760i, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL .

Special Tools Required:

00 9 317

Applicable to vehicles up to 03/2003 only.

Necessary Preliminary Tasks:

Remove insert on rear console. Refer to 51 44 180 REMOVING AND INSTALLING/REPLACING REAR CONSOLE INSERT / MAKE-UP MIRROR IN REAR COMPARTMENT .

Unclip plug connections (1) from insert on rear console (2) and disconnect.

Installation:

Attach a cord to one of the two antenna lead to be fed out to make it easier to feed in later.

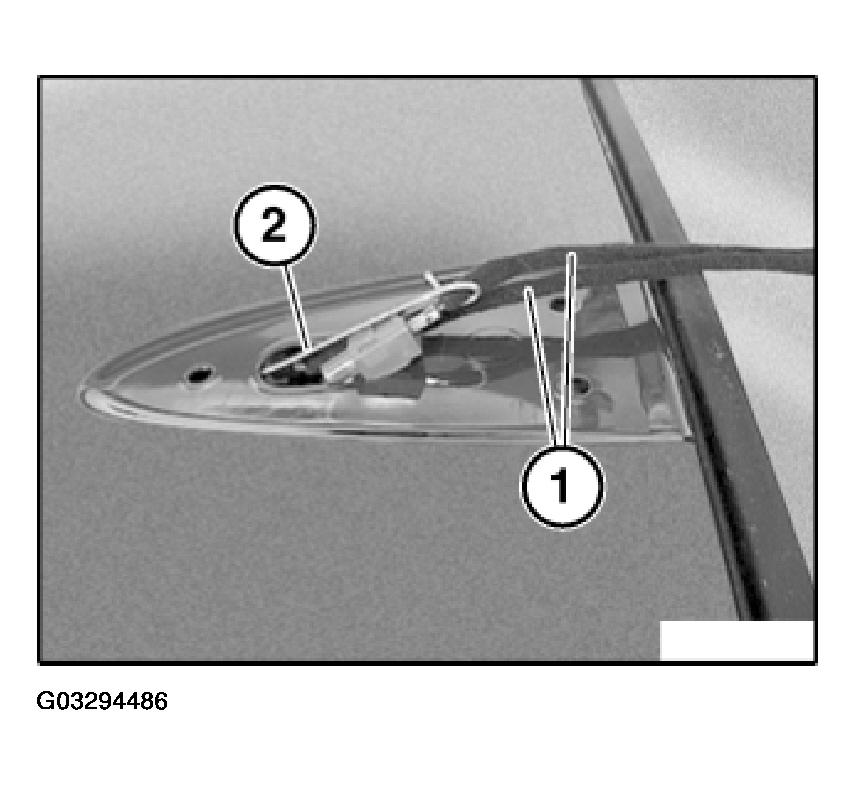

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Further removal of multiband telephone antenna is described separately from installation.

NOTE: Clean roof.

Carefully heat up vehicle roof in antenna area with hot-air blower (max. 50° C).

Using special tool 00 9 317, release seal of multiband telephone antenna (1) all round in direction of arrow.

Raise multiband telephone antenna (1), feed out antenna leads underneath and remove multiband telephone antenna (1).

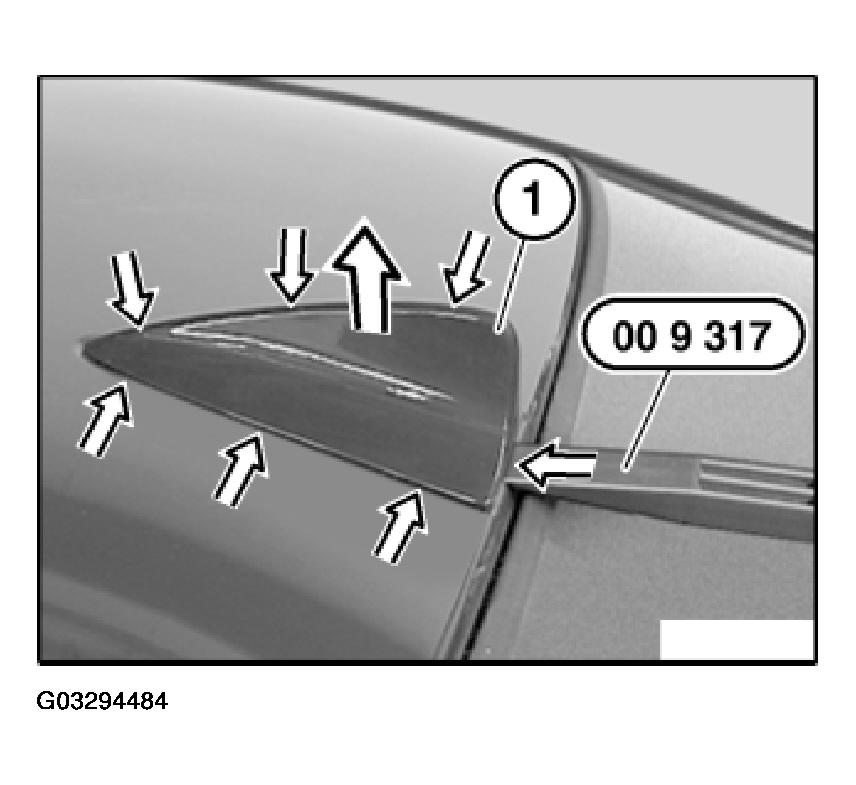

Fig 2: Removing Multiband Telephone Antenna Sealing With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!

Do not under any circumstances treat adhesive residue with scratching, grinding materials or any materials that may dissolve the paint or plastic.

Remove adhesive residue with spirit; use adhesive remover to remove larger residues.

Removal:

Installation of multiband telephone antenna is described separately from removal.

NOTE: Temperature of vehicle roof and multiband telephone antenna must be at least 18° C.

Clean bonding surfaces with spirit and leave to dry (air drying time at least 1 minute).

After this, do not touch bonding surfaces any more.

NOTE: Double-sided adhesive tape (1) is provided with both enclosed and perforated protective film.

Pull off enclosed protective film from double-sided adhesive tape (1).

Stick double-sided adhesive tape (1) as illustrated from rear side to tip centrally onto multiband telephone antenna (2).

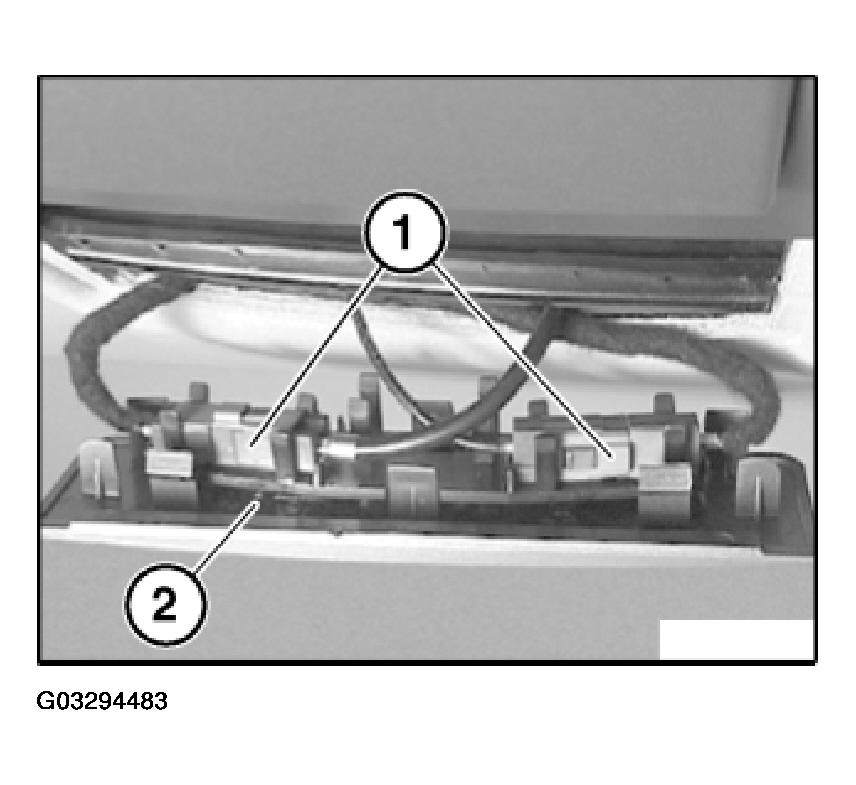

Fig 3: Applying Tape To Multiband Telephone Antenna

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in antenna leads (1) using previously pulled-in cord or wire (2) and connect plug connections.

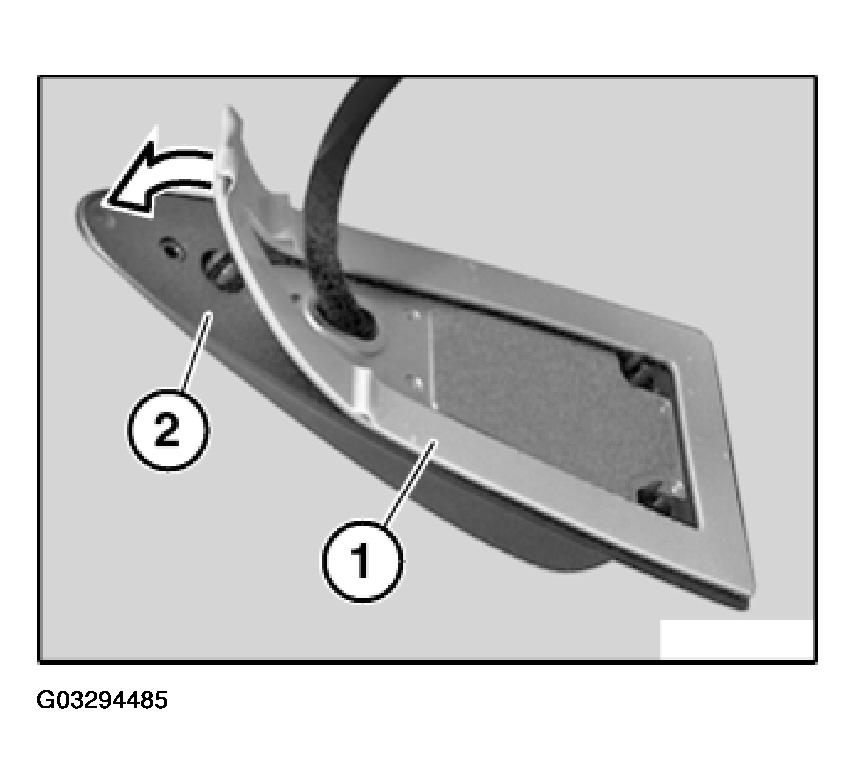

Fig 4: Inserting Antenna Leads And Connecting Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off perforated protective film (1).

NOTE: Do not touch bonding surface of multiband telephone antenna (2).

Mount multiband telephone antenna (2) so that positionings (3) can slide simultaneously into holes (4).

Place multiband telephone antenna (2) in position.

NOTE: Change position of multiband telephone antenna (1) max. three times so as not to impair adhesive effect of adhesive.

Press down telephone antenna (1) at small intervals (1-2 cm) all round with firm thumb pressure.

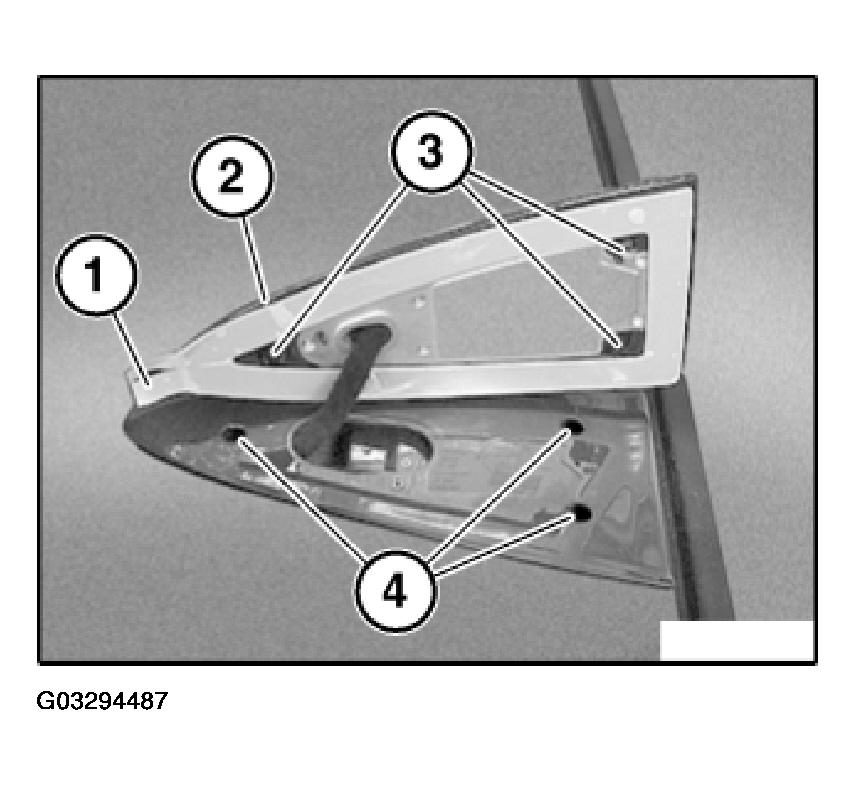

Fig 5: Removing Perforated Protective Film

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To guarantee a permanent bond:

Once it has been pressed down once, double-sided adhesive tape must not be reused after it has been detached - it must be replaced.
Only use washing installations after a period of 24 hours has passed.
