51 44 180 Removing And Installing/Replacing Rear Console Insert/Make-Up Mirror In Rear Compartment

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove ceiling light (rear). Refer to 63 31 003 REMOVING AND INSTALLING/REPLACING COMPLETE CEILING LIGHT (REAR)

Lever out insert (1) in direction of arrow.

Unclip plug connections above and remove rear insert (1).

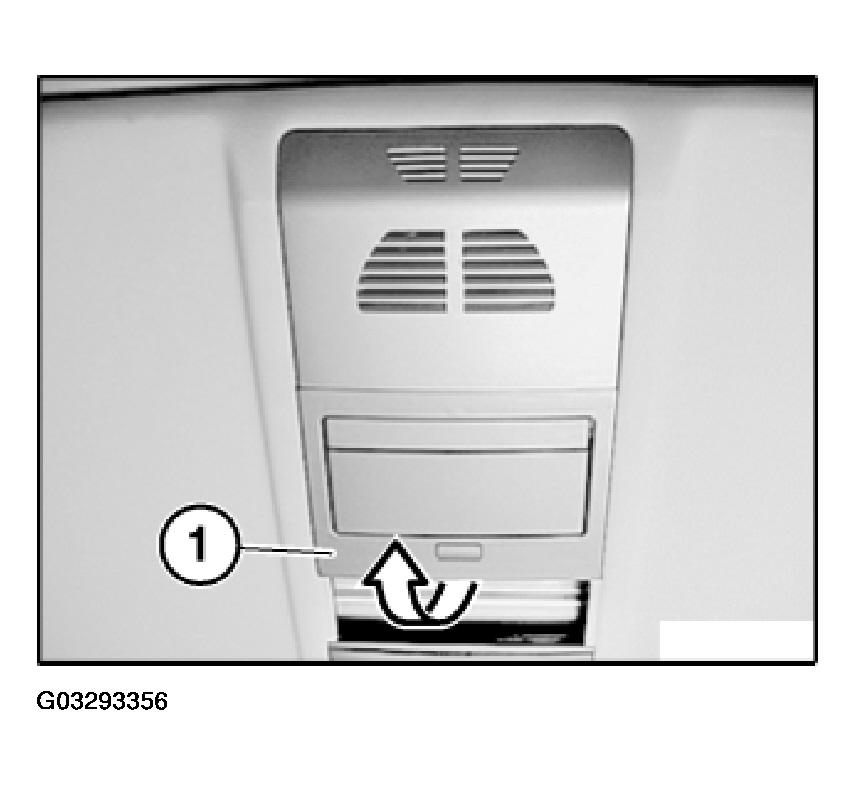

Fig 1: Identifying Rear Insert

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure plug connections (1) are correctly seated in console (2).

Fig 2: Locating Plug Connections In Console

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out make-up mirror (1) in direction of arrow.

Disconnect plug connection underneath and remove make-up mirror (1).

Fig 3: Removing Make-Up Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out insert (1) in direction of arrow.

Version With Anti-Theft Alarm System:

Disconnect plug connection underneath.

Remove insert (1).

Fig 4: Removing Insert

Courtesy of BMW OF NORTH AMERICA, INC.
