67 31 640 Removing And Installing/Replacing Drive For Backrest Head Adjustment (Comfort Seats In Rear Compartment)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear seat. Refer to 52 25 010 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR SEAT .

Detach retainers (1) in area (2).

Turn back backrest cover (3) in direction of arrow slightly.

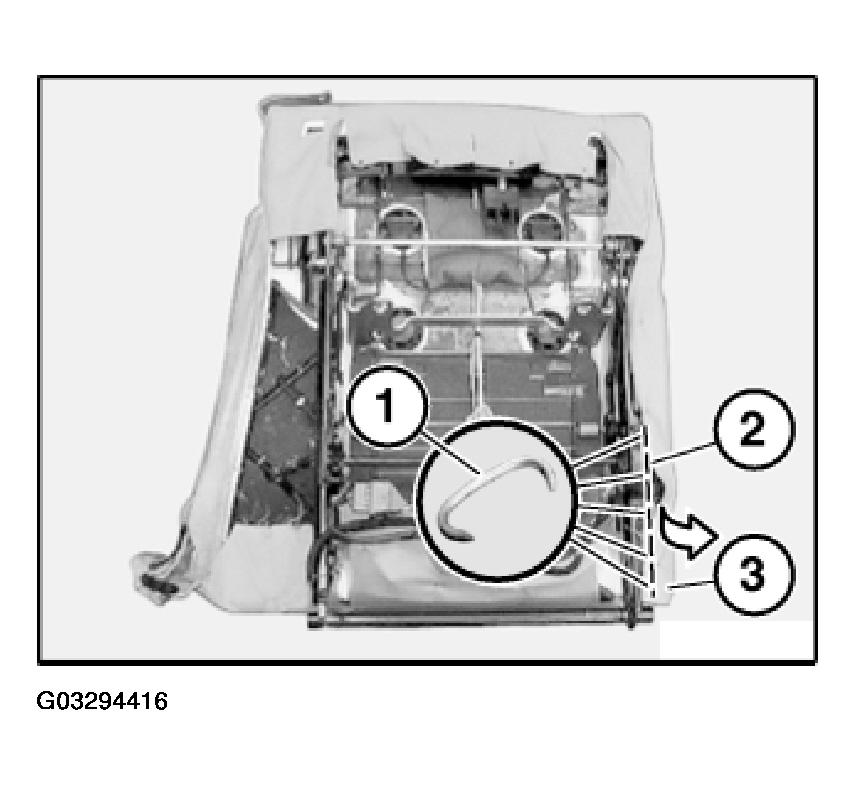

Fig 1: Identifying Retainers In Backrest

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, illustration shows backrest cushion section removed.

Disconnect plug connection (1).

Release screws (2).

Detach drive for seat head adjustment (3) from drive shaft (4) and remove in direction of arrow.

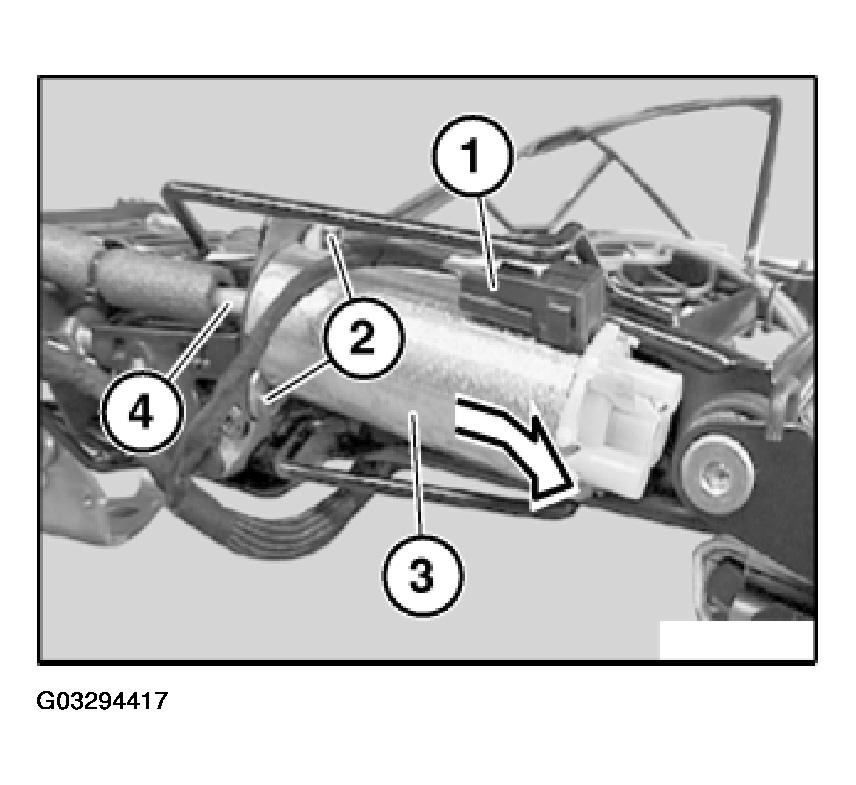

Fig 2: View Of Drive For Seat Head Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure spacer washers (1) are correctly seated.

If necessary, fix spacer washers (1) in place on metal tabs (2) of drive for backrest head adjustment (3).

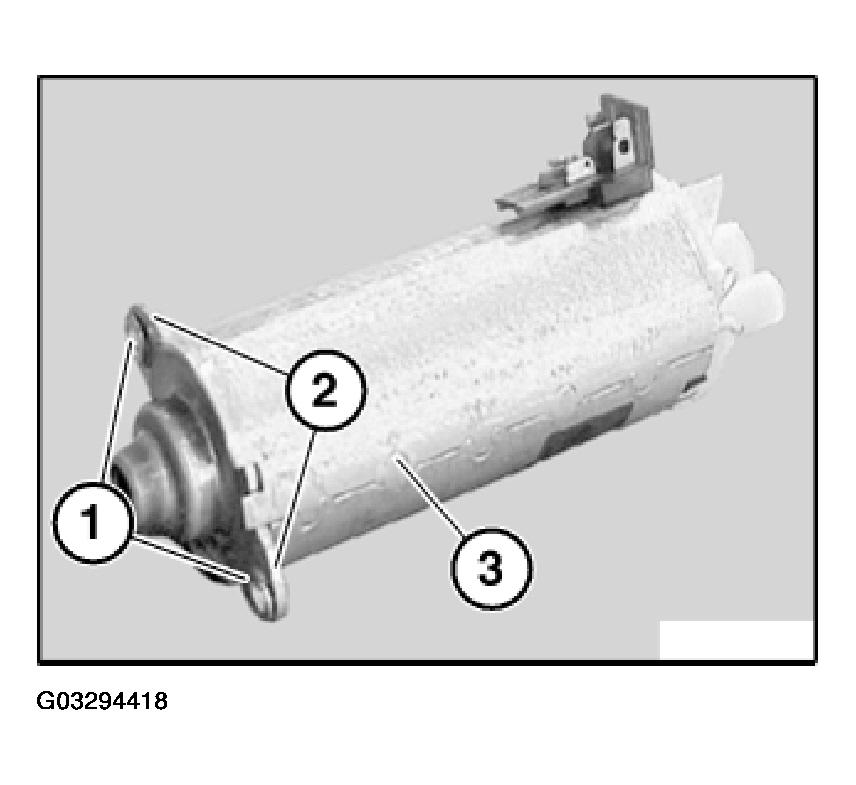

Fig 3: Aligning Spacer Washers On Metal Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Initialize drive unit for backrest head adjustment. Refer to 67 31 ... NOTES ON INITIALIZING ELECTRIC SEAT SERVODRIVES .
