52 25 010 Removing And Installing/Replacing Left Or Right Rear Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove flap in luggage compartment trim panel. Refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .
Remove rear head restraint. Refer to 52 24 390 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT HEAD RESTRAINT (NORMAL) .
Remove padding for rear seat completely. Refer to 52 25 002 REMOVING AND INSTALLING PADDING FOR LEFT OR RIGHT REAR SEAT .
Remove rear entrance cover strip. Refer to 51 47 030 REMOVING AND INSTALLING/REPLACING ENTRANCE COVER STRIP, REAR (INSIDE) LEFT OR RIGHT .
Remove supplementary trim on C-pillar at bottom. Refer to 51 43 240 REMOVING AND INSTALLING/REPLACING SUPPLEMENTARY TRIM ON C-PILLAR AT BOTTOM (WITH ELECTRIC REAR SEAT ADJUSTMENT) ON LEFT OR RIGHT .
Remove trim for armrest at rear. Refer to 52 25 030 REMOVING AND INSTALLING COMPLETE ARMREST FOR REAR SEAT BACKREST .

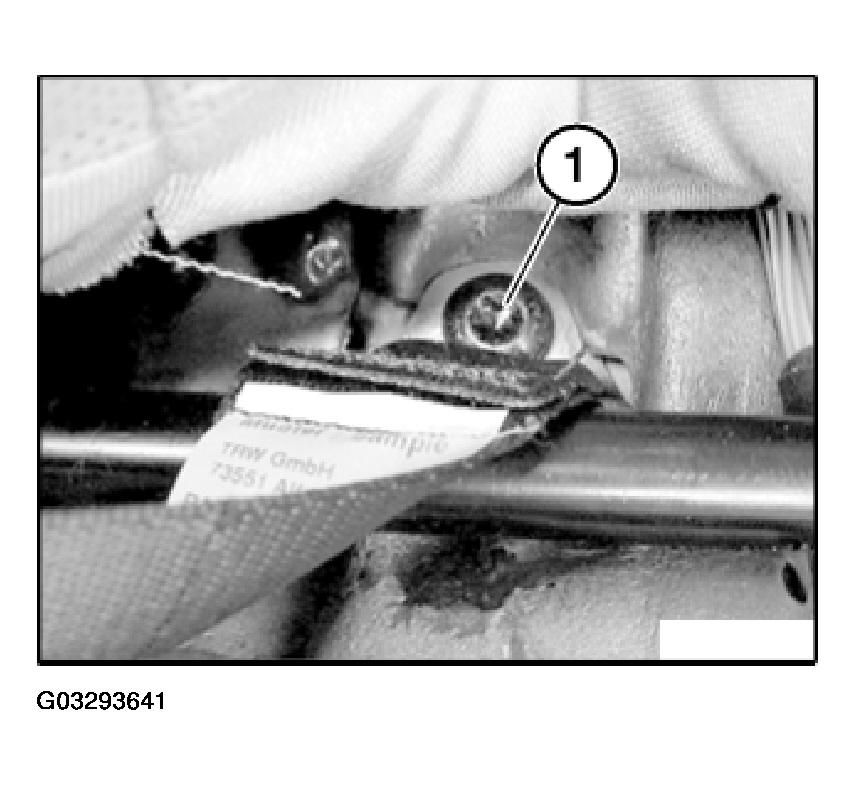

Release screw (1) for seat belt, center.

Installation:

For tightening torque refer to 72 11 1AZ in 72 11 SEAT BELTS .

Fig 1: Center Seat Belt Screw

Courtesy of BMW OF NORTH AMERICA, INC.

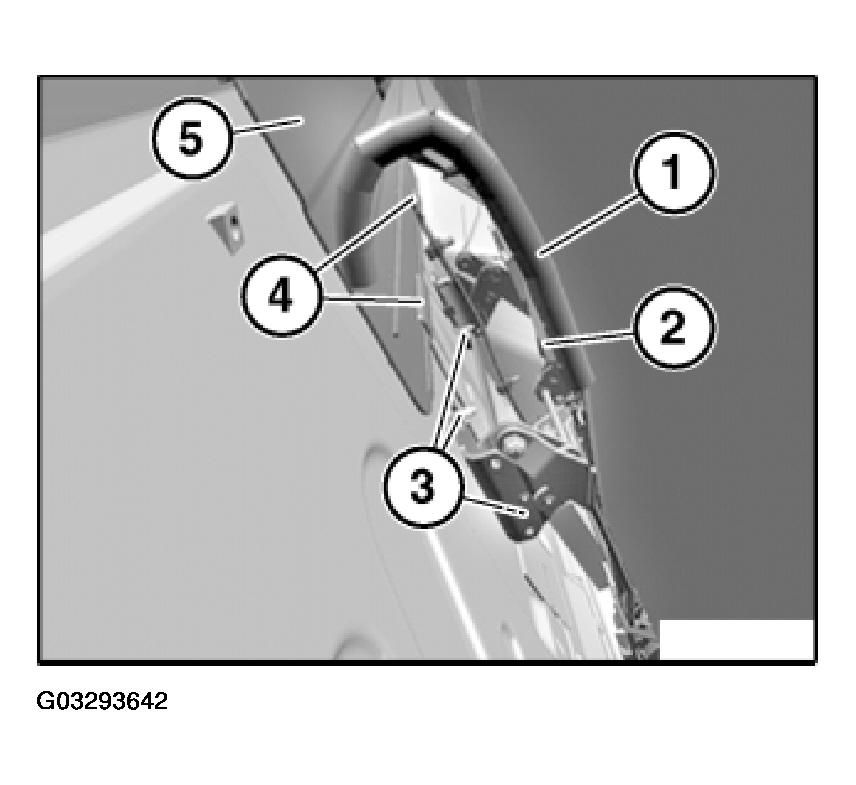

Remove cover (1) upwards out of guide (2).

Detach cover (1) from Velcro-type fastener (5), pull out of guide (4) and lift out completely.

Release screws (3).

NOTE: Backrest is secured with three nuts to body (nut at top/outside is not present).

Installation:

Insert nuts with Loctite, for tightening torque refer to 52 25 1AZ in SEATS - TIGHTENING TORQUES .

Fig 2: Cover, Guides, Screws And Velcro-Type Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

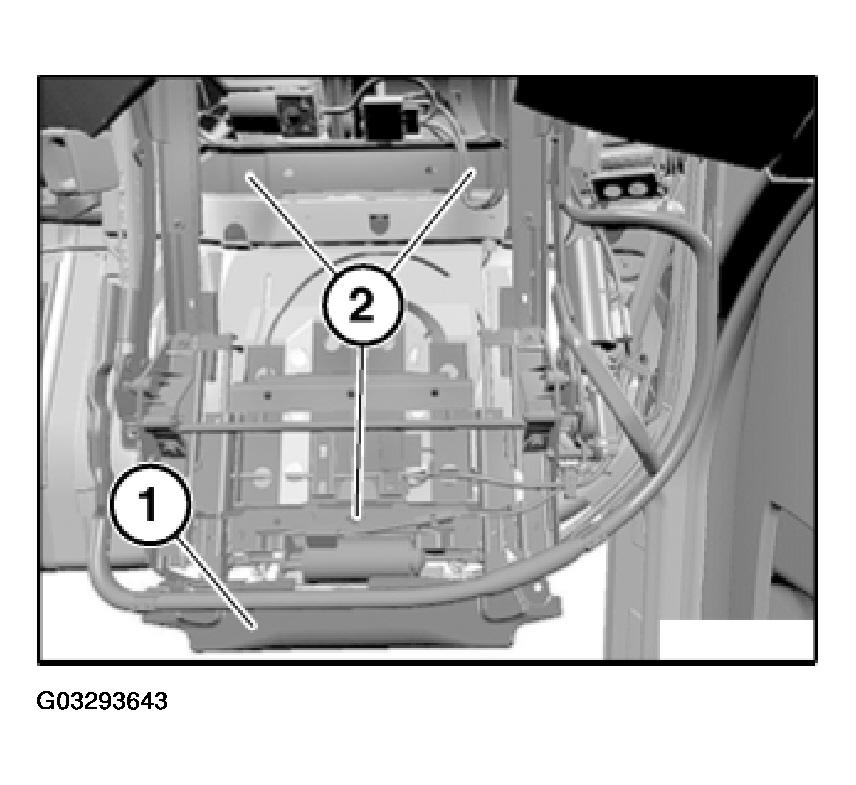

Remove cover (1) towards front.

Release screws (2).

Installation:

For tightening torque refer to 52 25 2AZ in SEATS - TIGHTENING TORQUES .

Disconnect all plug connections and feed out wiring harnesses.

Fig 3: Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

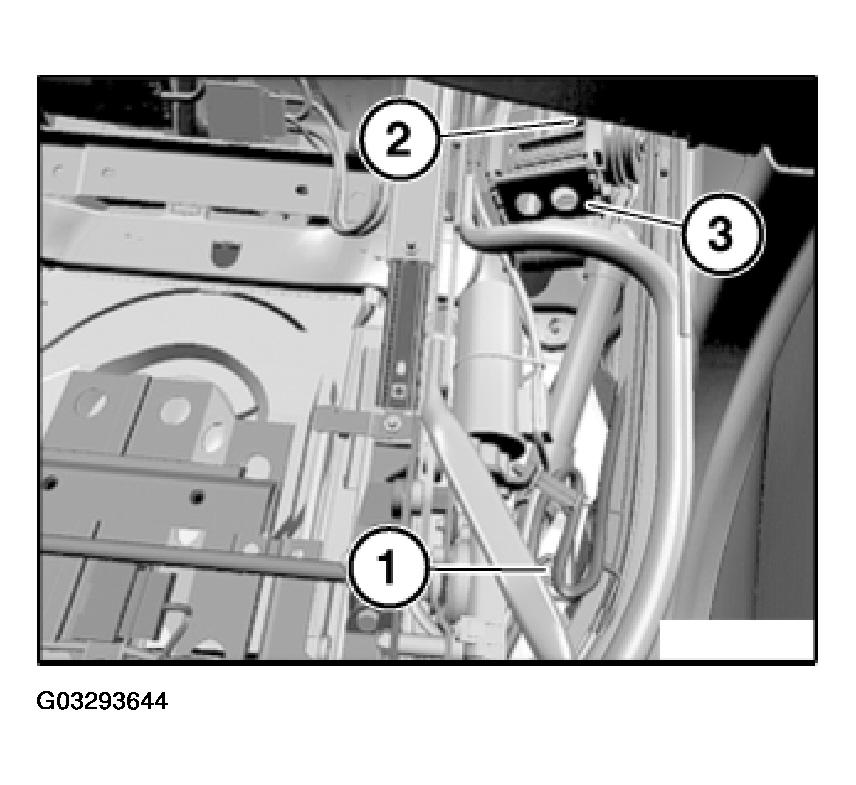

Release screw (1).

Release screw (2).

Installation:

For tightening torque refer to 72 11 20AZ in 72 11 SEAT BELTS .

Lift complete seat with seat frame and set forward slightly.

Feed out belt with tensioner (3) towards rear. Remove complete seat.

Fig 4: Seat Retaining Screws And Belt Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.
