65 82 530 Replacing MOST CAN Gateway Control Unit

Special Tools Required:

• 64 1 020

Necessary Preliminary Tasks:

• Remove control display. Refer to 65 82 010 REMOVING AND INSTALLING (REPLACING) CONTROL DISPLAY .

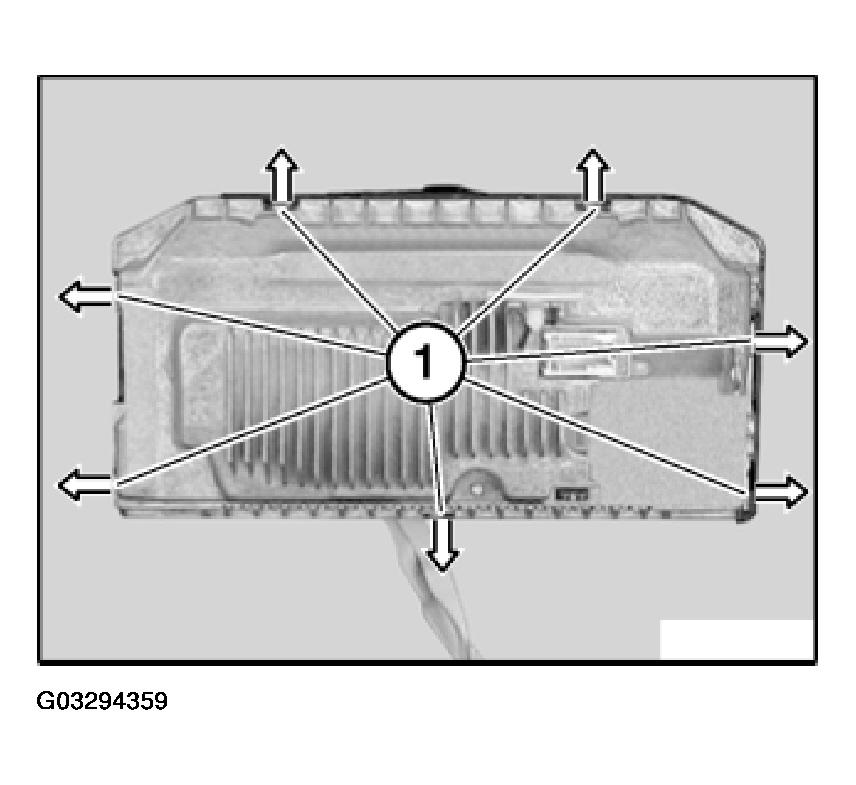

Lever out lugs (1) in direction of arrow.

Fig 1: Control Display Lugs And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.

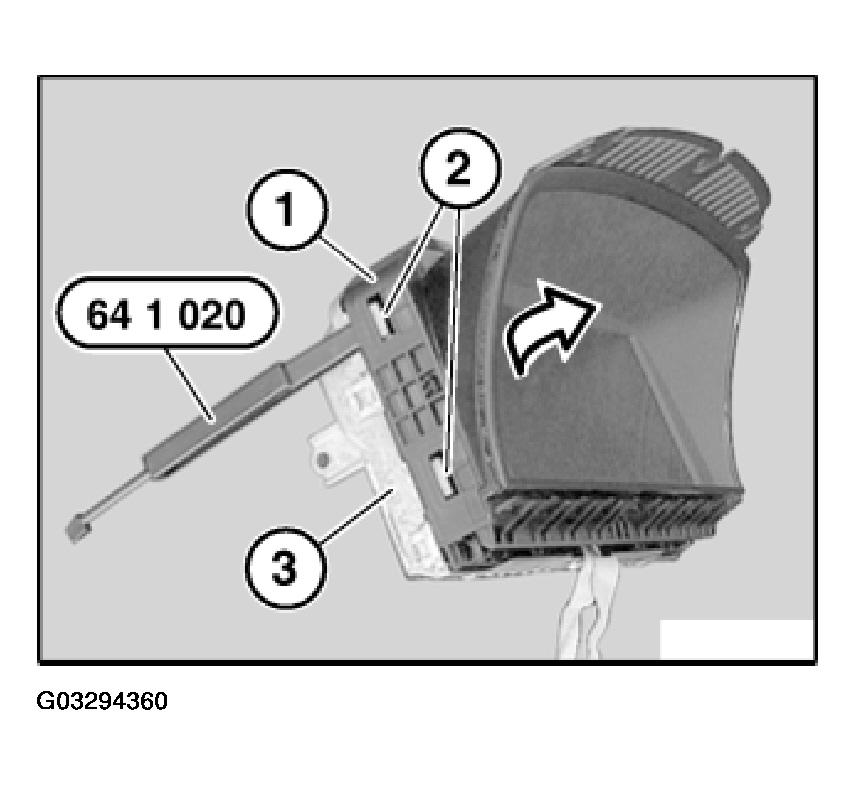

Lift housing of control display (1) over catches (2) using special tool 64 1 020.

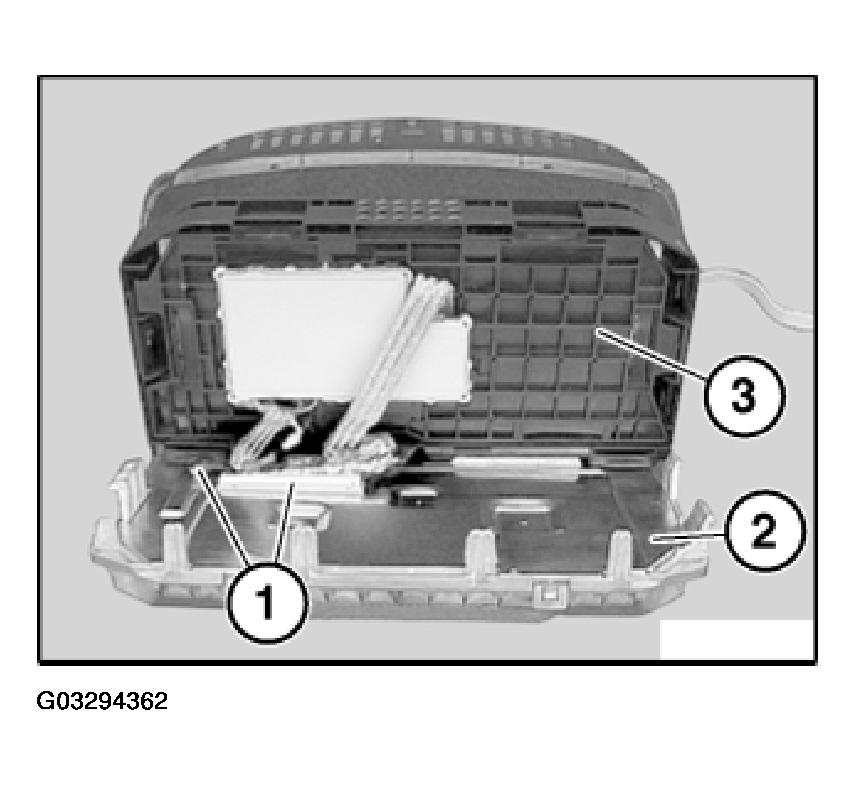

Fold up control display (2) in direction of arrow and feed out of MOST CAN gateway control unit (3).

Fig 2: Catches, Control Display, Housing, Special Tool (64 1 020) And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

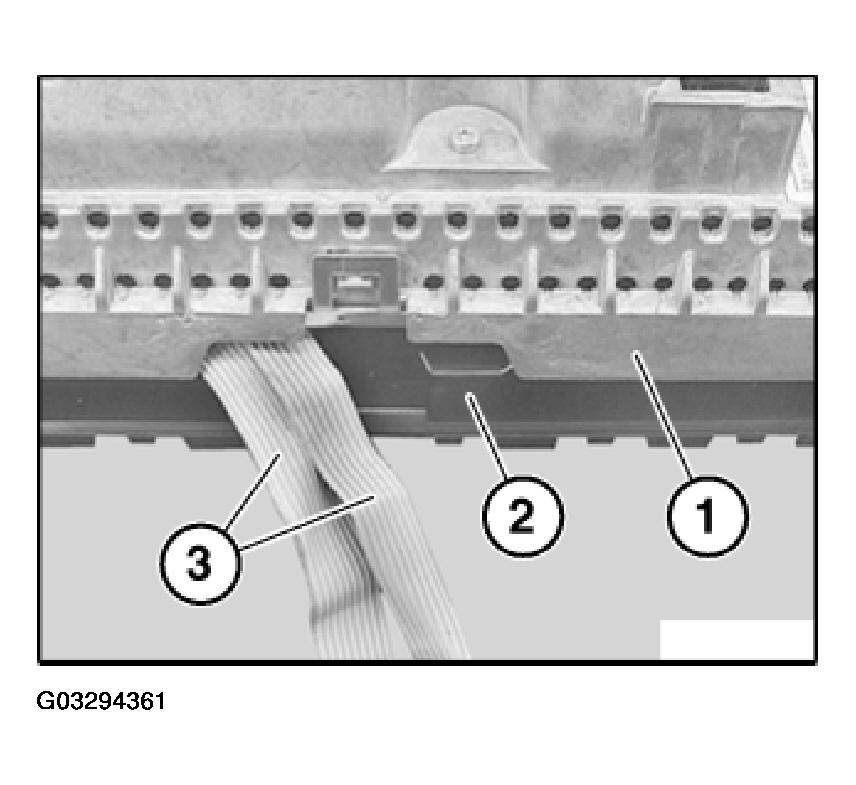

Do not kink ribbon cables (3) when assembling control display (2) and MOST CAN gateway control unit (1).

Fig 3: Ribbon Cables, Control Display, MOST CAN Gateway Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Remove MOST CAN gateway control unit (2) from control display (3).

Fig 4: MOST CAN Gateway Control Unit, Plug Connections And Control Display

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming. Refer to DIAGNOSIS PROGRAMMING/CODING .

Observe following IDC specifications:

• Programming.
• Coding.
• Car & Key Memory.
• CD "CIP".

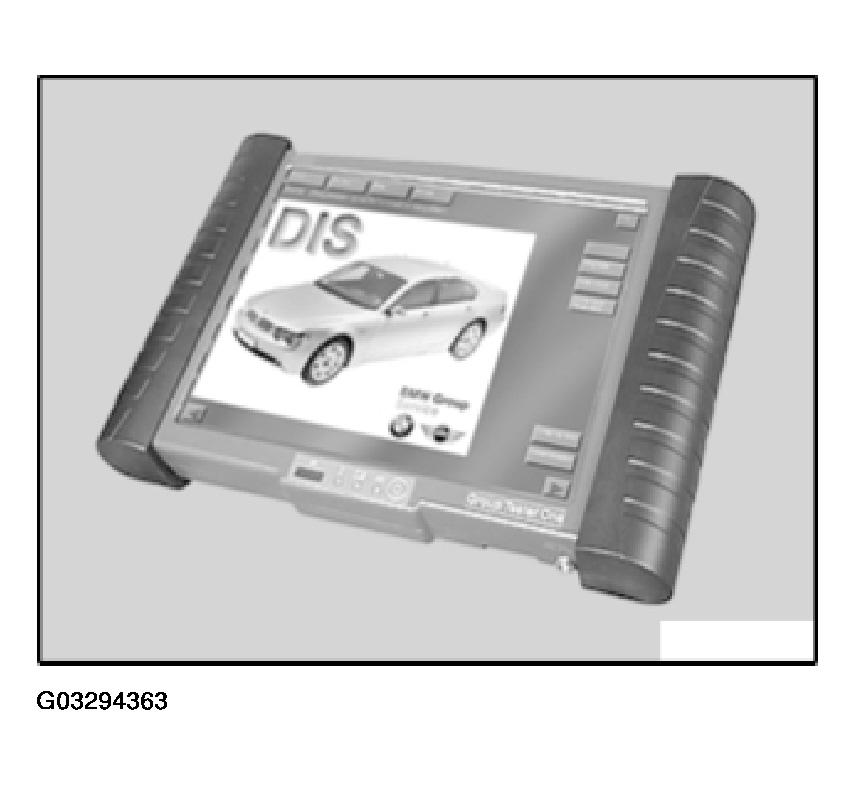

  Fig 5: Programming Equipment

  Courtesy of BMW OF NORTH AMERICA, INC.
