65 82 010 Removing And Installing (Replacing) Control Display

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Disconnect battery negative lead. Refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY .
Remove wood trim on instrument panel on right. Refer to 51 45 366 REMOVING AND INSTALLING/REPLACING WOOD TRIM ON RIGHT .

NOTE: Follow instructions for handling optical fibers. Refer to 61 00 ... NOTES ON HANDLING OPTICAL FIBERS .

Release screws (1).

Remove control display (2) in direction of arrow.

Unlock plug connection behind and disconnect.

Remove control display (2).

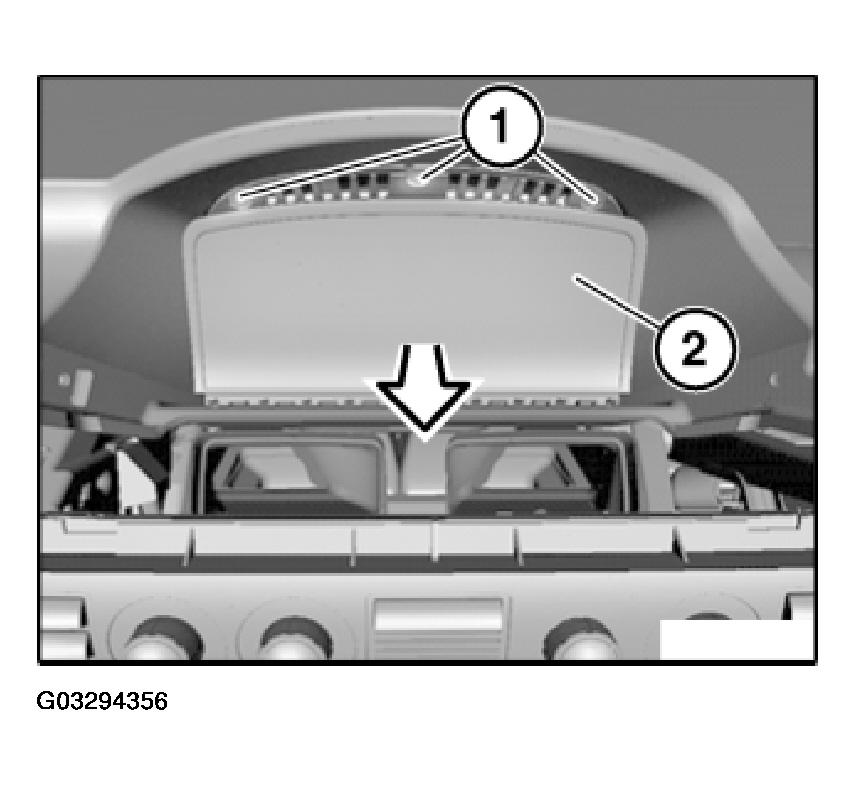

Fig 1: Control Display, Retaining Screws And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) of control display (2) must be exactly seated in mountings of instrument panel.

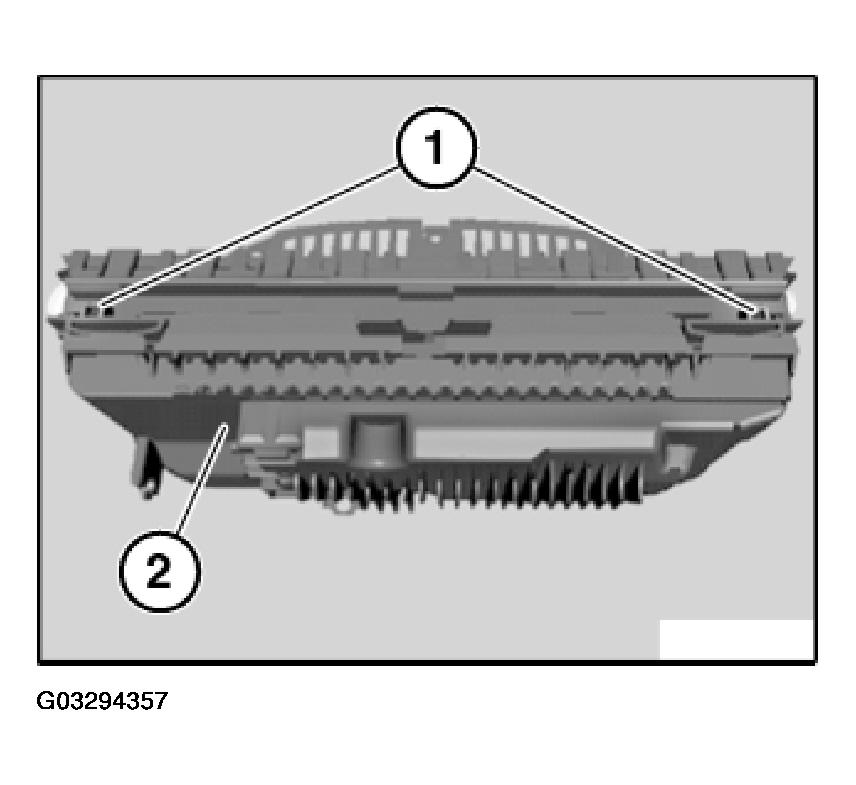

Fig 2: Guides And Control Display

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming. Refer to DIAGNOSIS PROGRAMMING/CODING .

Observe following IDC specifications:

Programming.
Coding.
Car & Key Memory.
CD "CIP".

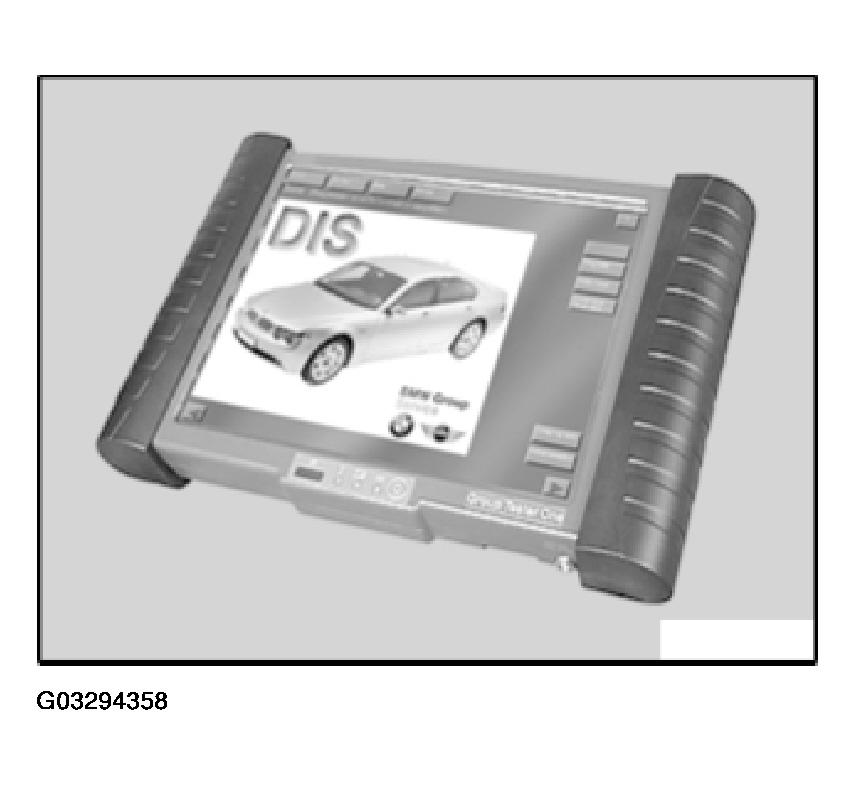

Fig 3: Programming Equipment
Courtesy of BMW OF NORTH AMERICA, INC.
