65 75 071 Removing And Installing (Replacing) Module For Passenger Compartment Sensor

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove make-up mirror and front console insert. Refer to 51 44 180 REMOVING AND INSTALLING/REPLACING REAR CONSOLE INSERT / MAKE-UP MIRROR IN REAR COMPARTMENT .

Open detent lugs (1) in direction of arrow and remove module for passenger compartment sensor (2) from front console insert (3).

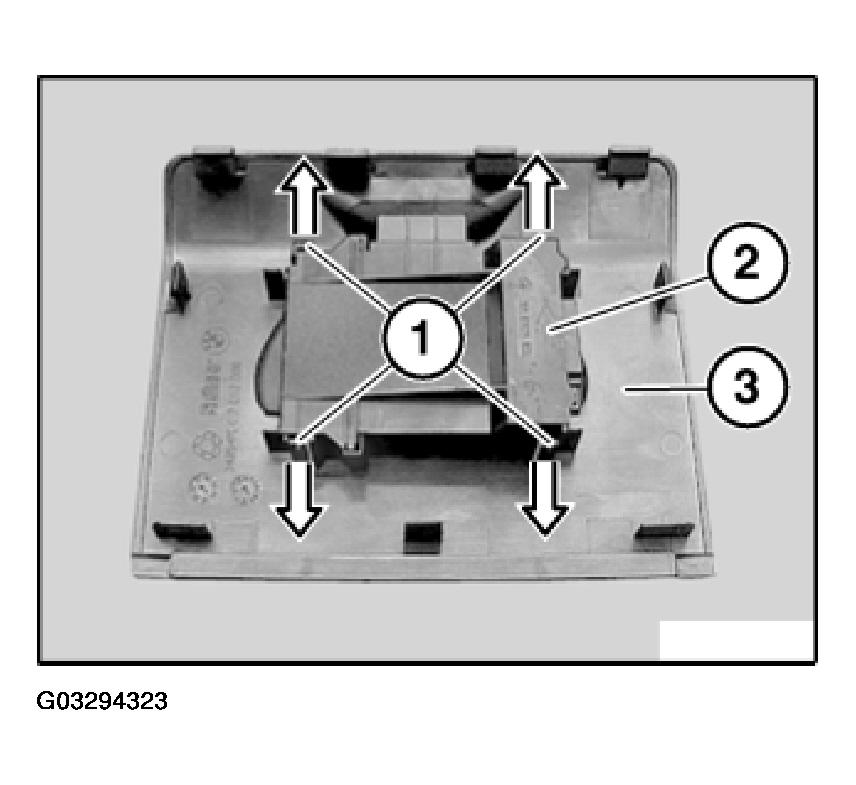

Fig 1: Detent Lugs, Passenger Compartment Sensor, Front Console Insert And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming. Refer to DIAGNOSIS PROGRAMMING/CODING .

Observe following IDC specifications:

Programming.
Coding.
Car & Key Memory.
CD "CIP".

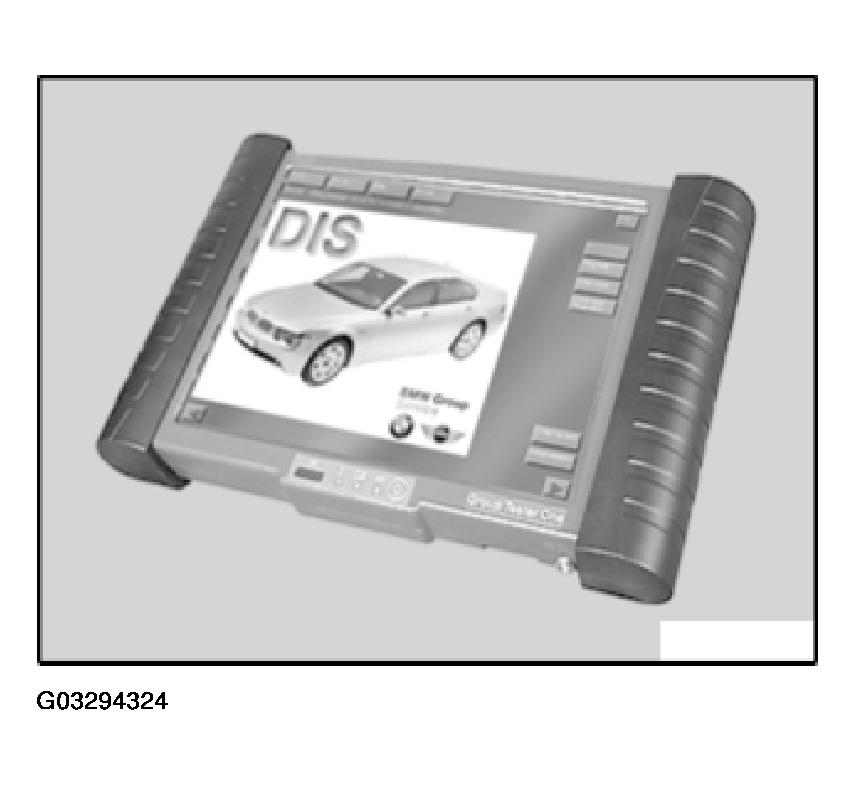

Fig 2: Programming Equipment
Courtesy of BMW OF NORTH AMERICA, INC.
