65 20 220 Removing And Installing/Replacing Rear Window Antenna Amplifier

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove blocking circuit. Refer to 65 24 020 REMOVING AND INSTALLING OR REPLACING BLOCKING CIRCUIT .

NOTE: For purposes of clarity, the illustration shows the panel for the rear parcel shelf removed. Disconnect plug connections (1). Release screws (2) and remove rear window antenna amplifier (3) in direction of arrow.

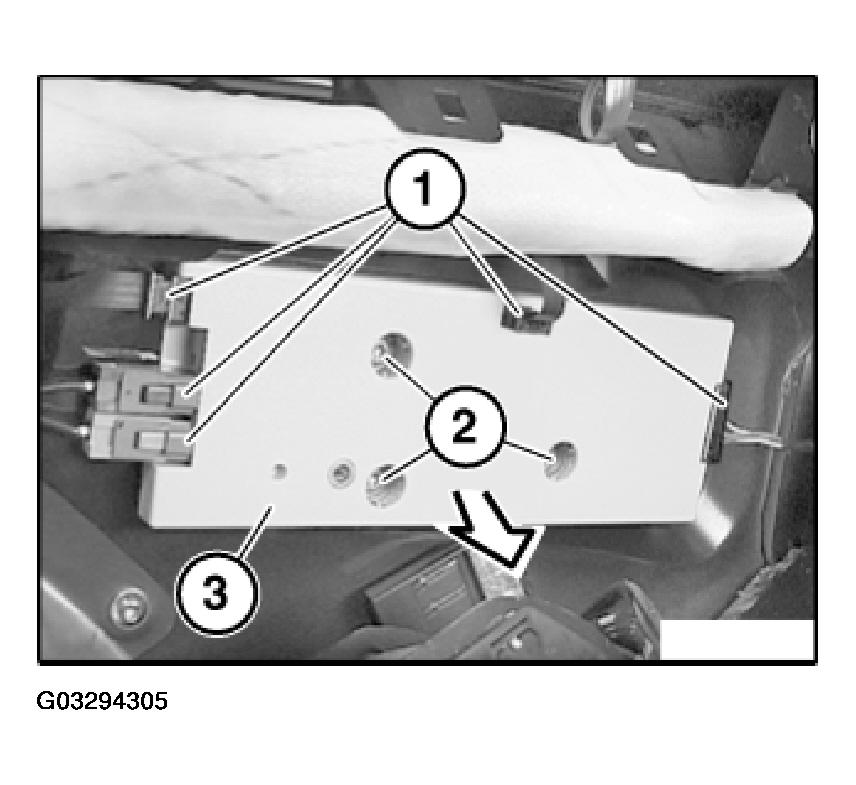

Fig 1: Rear Window Antenna Amplifier, Plug Connection, Retaining Screws And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
