65 24 020 Removing And Installing Or Replacing Blocking Circuit

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove trim on C-pillar at bottom right. Refer to 51 43 230 REMOVING AND INSTALLING/REPLACING TRIM ON C-PILLAR AT BOTTOM LEFT OR RIGHT and/or 51 43 245 REMOVING AND INSTALLING/REPLACING TRIM ON C-PILLAR AT BOTTOM (WITH ELECTRIC REAR SEAT ADJUSTMENT) ON LEFT OR RIGHT .

NOTE: For purposes of clarity, the illustration shows the panel for the rear parcel shelf removed. Disconnect plug connections (1). Release screw (2) and remove blocking circuit (3) in direction of arrow from rear window antenna amplifier.

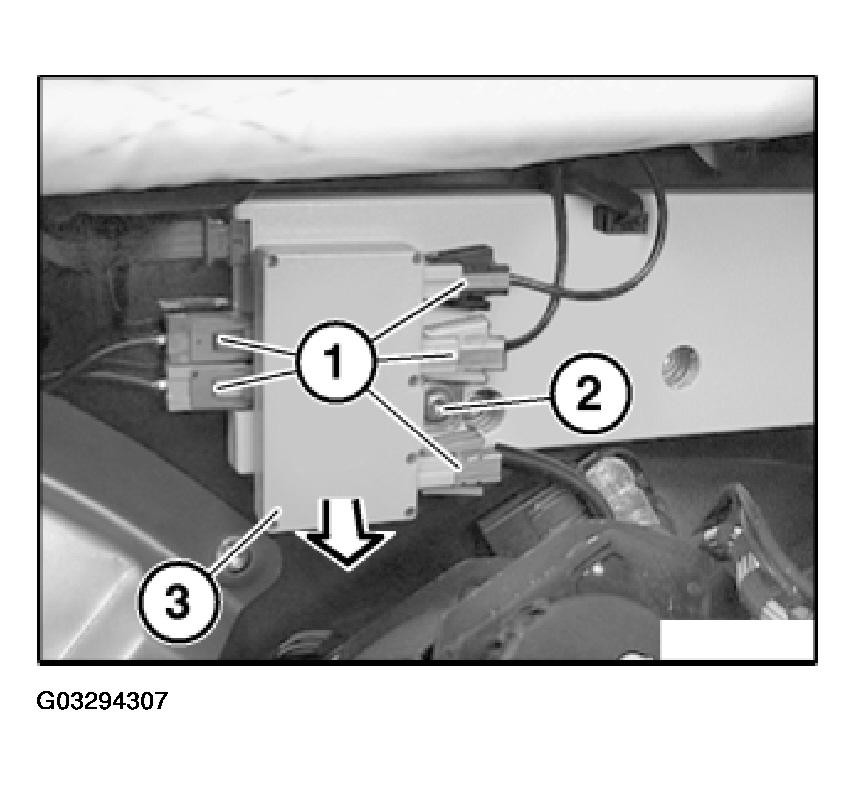

Fig 1: Blocking Circuit, Plug Connectors, Retaining Screws And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure guide pin (1) of blocking circuit (2) is correctly seated in bore in rear window antenna amplifier.

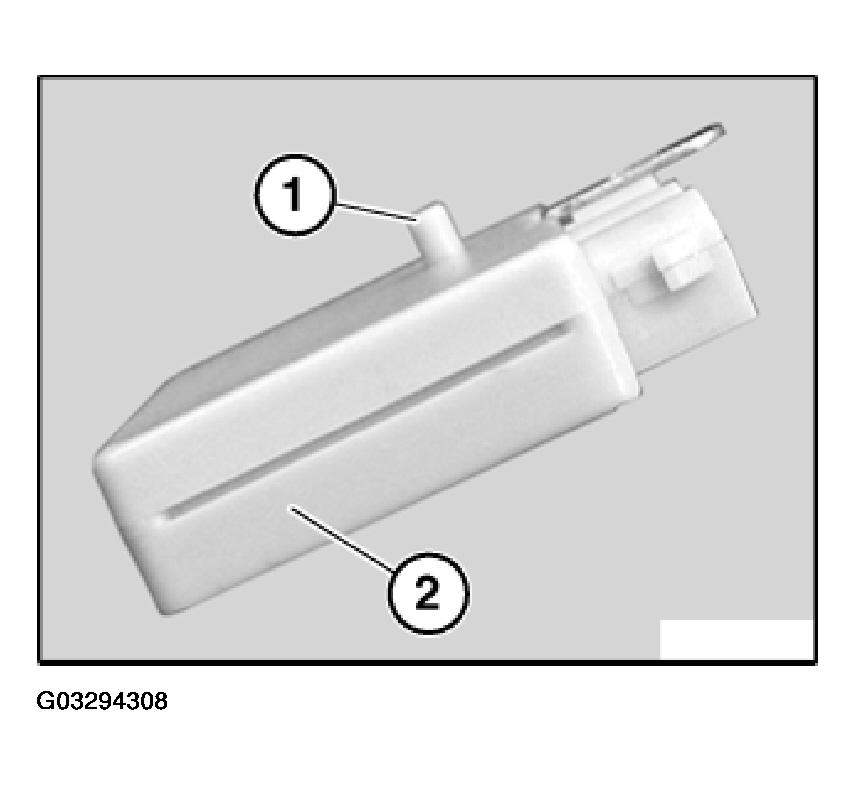

Fig 2: Guide Pin And Blocking Circuit
