65 13 060 Removing And Installing/Replacing Speaker (Mid-Range Speaker, In Instrument Panel)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove speaker trim. Refer to 51 45 115 REMOVING AND INSTALLING SPEAKER FRAME ON PANEL FOR INSTRUMENT PANEL AT TOP .

Release screws (1).

Remove speaker (2).

Disconnect plug connection underneath and remove speaker (2) towards top.

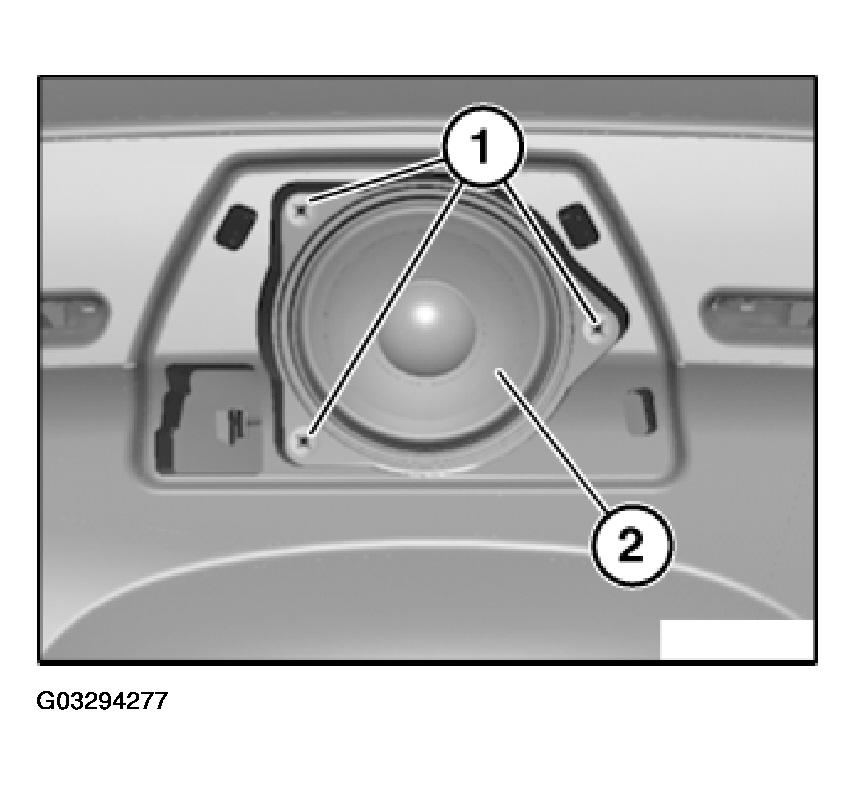

Fig 1: Speaker Trim And Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.
