51 45 115 Removing And Installing Speaker Frame On Panel For Instrument Panel At Top

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 341

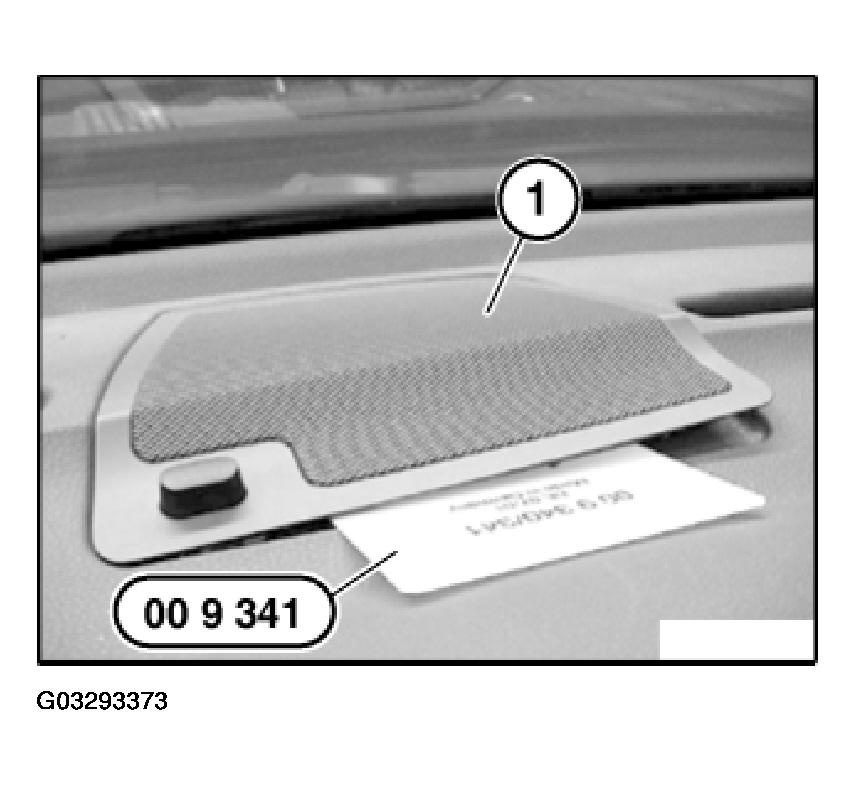

Unclip speaker frame (1) with special tool 00 9 341.

Fig 1: Removing Speaker Frame

Courtesy of BMW OF NORTH AMERICA, INC.

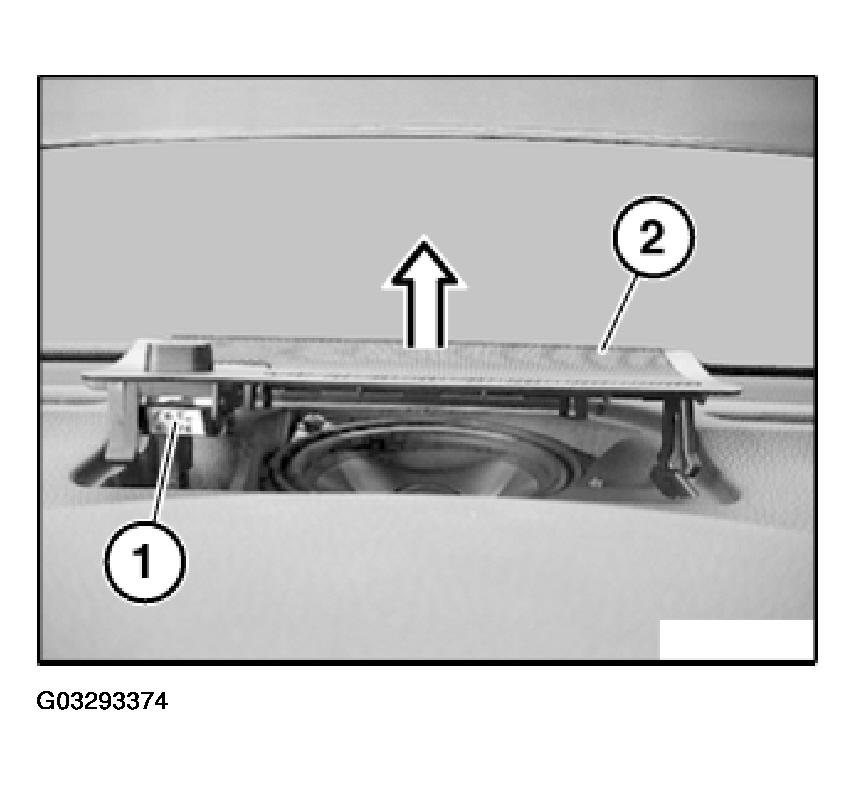

Lever out speaker frame (2) in direction of arrow.

Disconnect plug connection from solar sensor (1) and remove speaker frame (2).

Fig 2: Identifying Solar Sensor Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

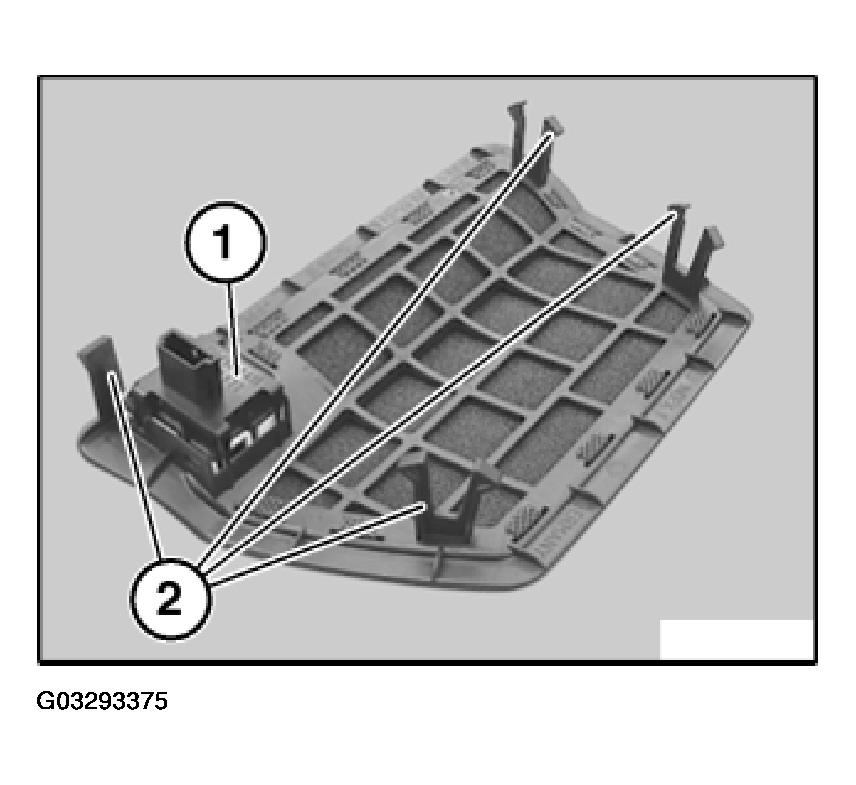

Locks (2) must not be damaged.

Replacement Only:

Remove solar sensor (1). Refer to 64 11 992 REMOVING AND INSTALLING/REPLACING SOLAR SENSOR .

Fig 3: Inspecting Locks

Courtesy of BMW OF NORTH AMERICA, INC.
