65 13 050 Removing And Installing/Replacing Speaker (Treble Speaker, Front Door)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Detach cover on door window frame in front area. Refer to 51 32 160 REMOVING AND INSTALLING/REPLACING HOUSING COVER ON INNER LEFT OR RIGHT DOOR WINDOW FRAME .

Unfasten plug connection (1) and disconnect.

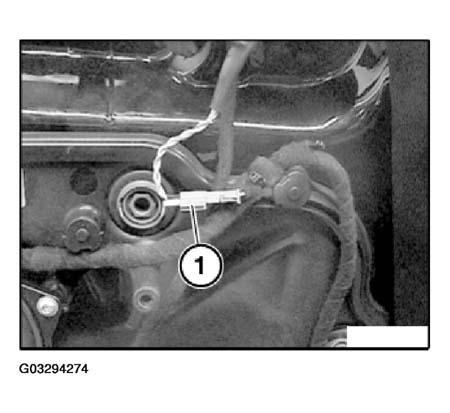

Fig 1: Front Door Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, illustration shows cover removed on door window frame.

Remove foam wedge (1) from cover on door window frame (2).

Fig 2: Foam Wedge, Cover And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Detach speaker (2) from cover on door window frame (3) and remove.

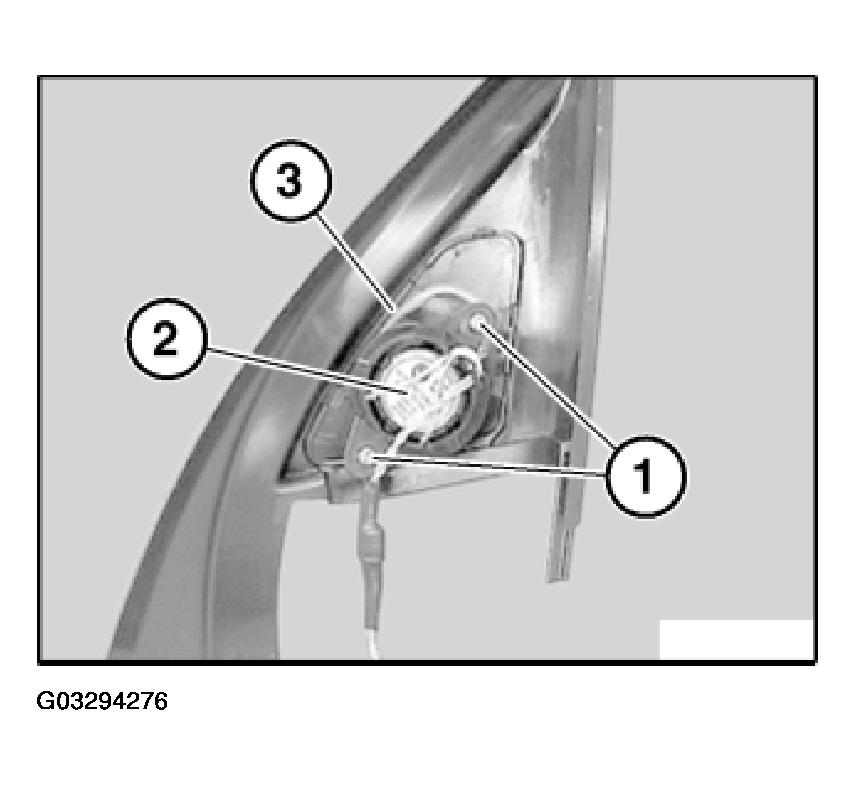

Fig 3: Speaker, Door Window Frame Cover And Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.
