51 32 160 Removing And Installing/Replacing Housing Cover On Inner Left Or Right Door Window Frame

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

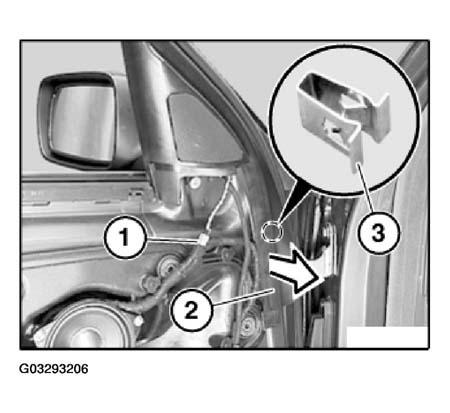

Disconnect plug connection (1) for speaker.

Lever cover (2) in direction of arrow out of retainer (3).

Fig 1: Removing Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

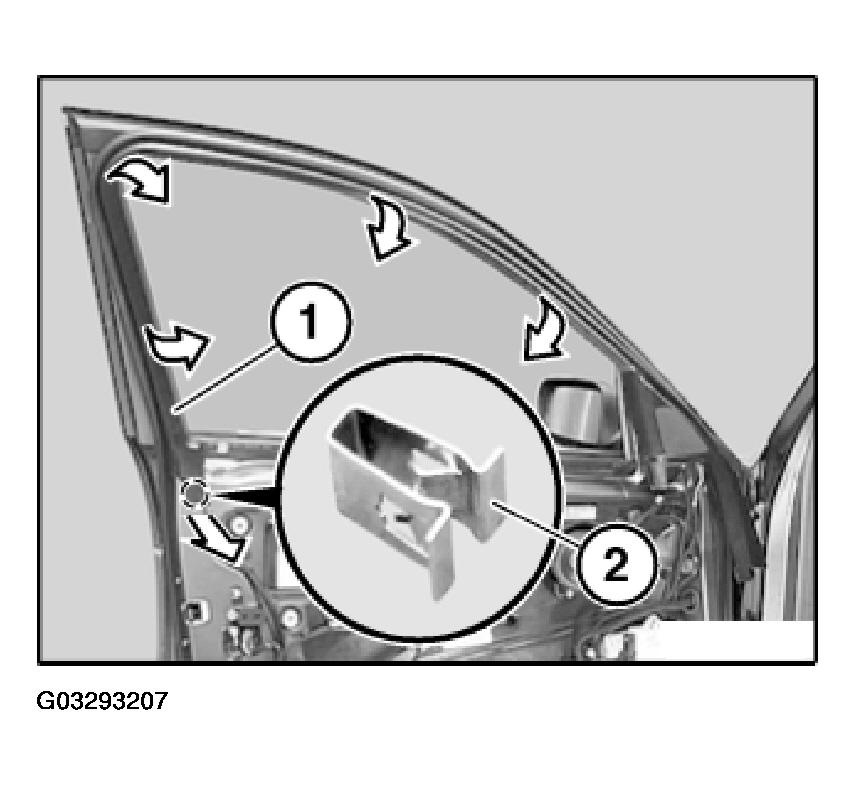

Detach cover (1) from retainer (2) and remove rest.

Fig 2: Detaching Cover From Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

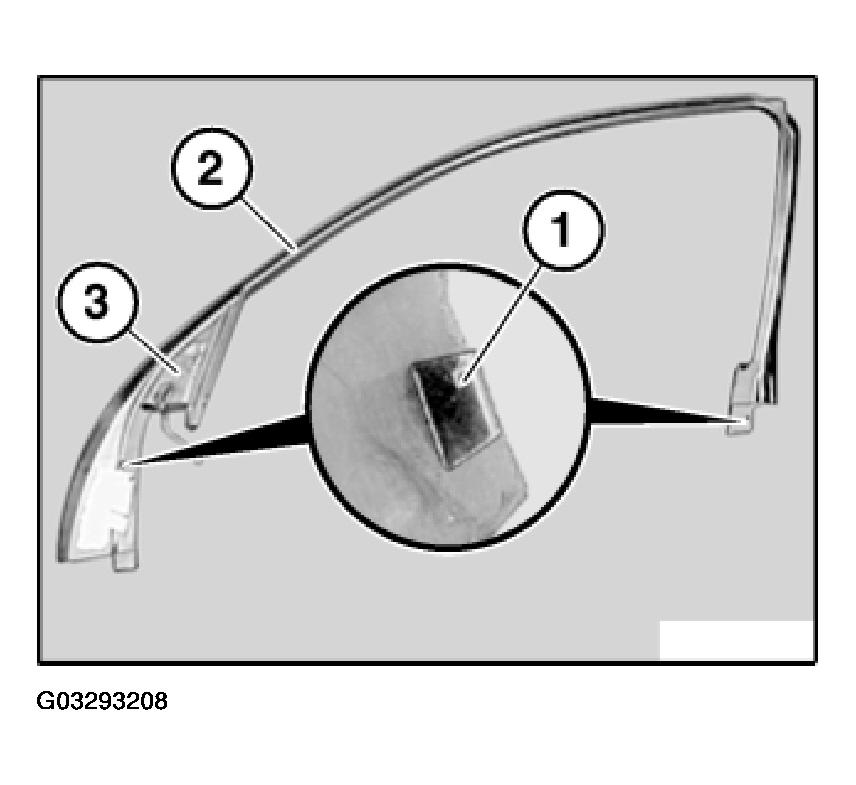

Following parts of cover (2) must not be damaged or missing:

1) Bridges.

3) Foam.

Initialize power window. Refer to 67 62... NOTES ON INITIALIZING POWER WINDOW .

Replacement:

Remove speaker. Refer to 65 13 070 REMOVING AND INSTALLING/REPLACING SPEAKER (MID-RANGE SPEAKER, DOOR AT FRONT) .

Fig 3: Identifying Bridges And Foam

Courtesy of BMW OF NORTH AMERICA, INC.
