64 11 992 Removing And Installing/Replacing Solar Sensor

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Remove speaker frame at middle of instrument panel. Refer to 51 45 115 REMOVING AND INSTALLING SPEAKER FRAME ON PANEL FOR INSTRUMENT PANEL AT TOP .

Unlock catches (1) in direction of arrow and remove solar sensor (2) from speaker frame (3).

Fig 1: Locating Catches For Solar Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locking windows (1) of speaker frame (2) must not be damaged.

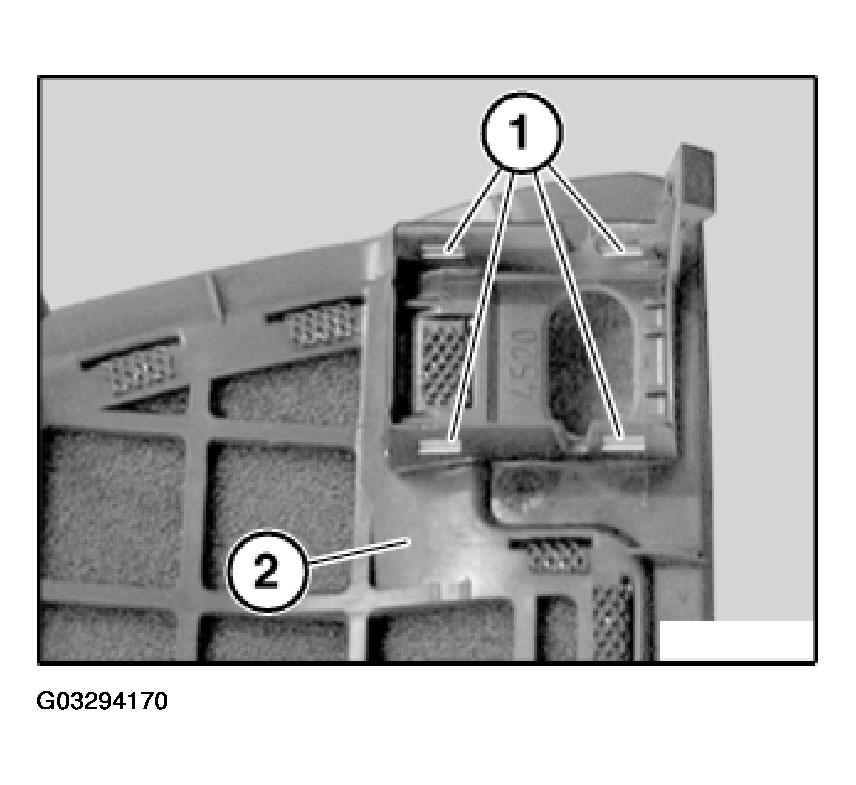

Fig 2: View Of Locking Windows Of Speaker Frame

Courtesy of BMW OF NORTH AMERICA, INC.
