64 11 943 Replacing Evaporator Temperature Sensor (High Automatic A/C)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

Press sound insulation for A/C unit at rear left downwards slightly.

Disconnect plug connection (1).

Pull out evaporator temperature sensor (2) in direction of arrow.

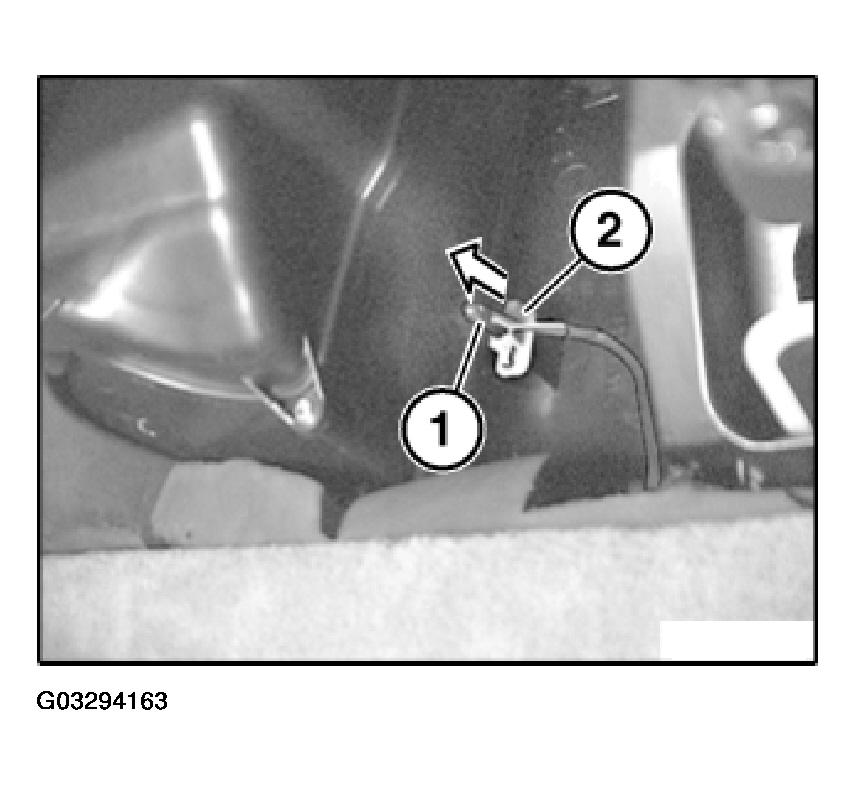

Fig 1: Removing Evaporator Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

When installing evaporator temperature sensor, pay attention to guide (1) in mount (2).

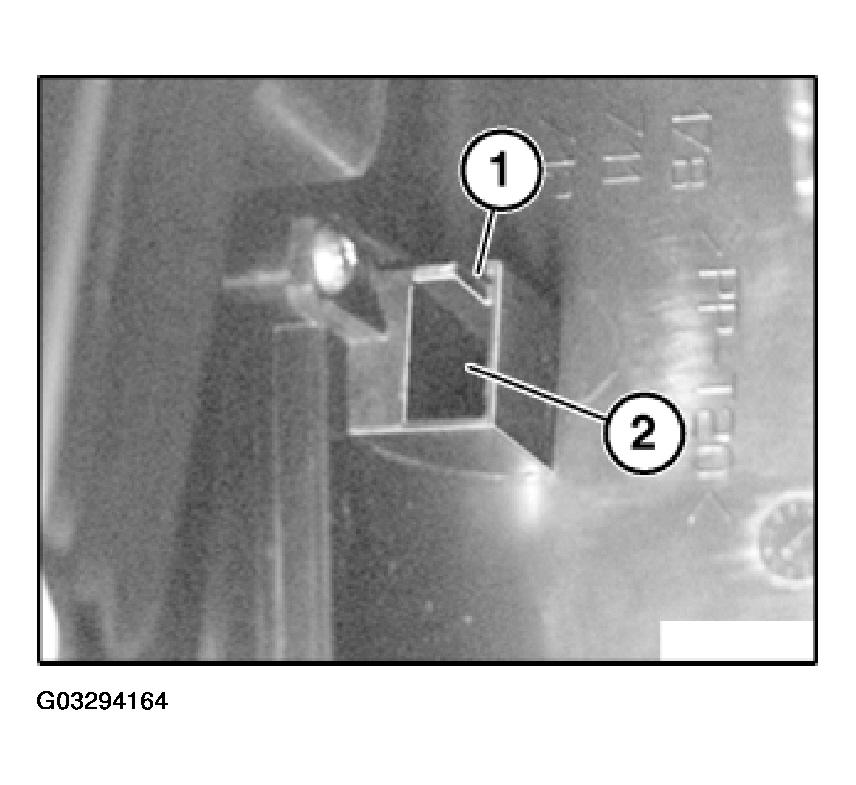

Fig 2: Locating Guide In Evaporator Temperature Sensor Mount

Courtesy of BMW OF NORTH AMERICA, INC.
