51 45 185 Removing And Installing/Replacing Trim For Pedal Assembly

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Lower trim (2) slightly and disconnect plug connection for footwell light (3).

Remove trim (2).

Replacement Only:

Lever out footwell light (3).

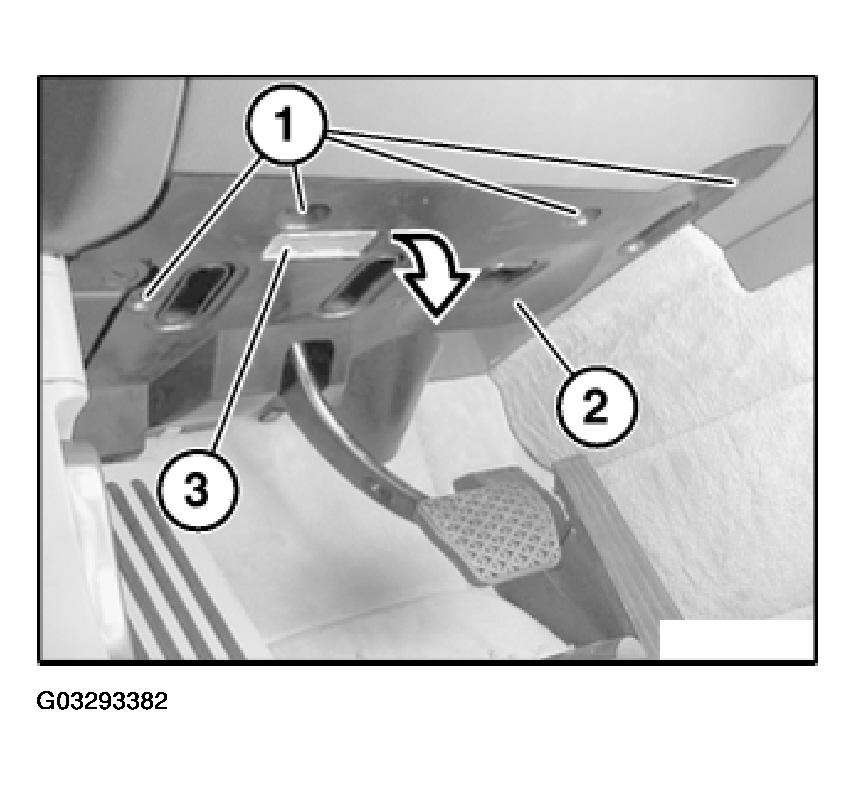

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach hook (2) to carpet lining (3).

Slide trim (4) with guides (5) into holders (1).

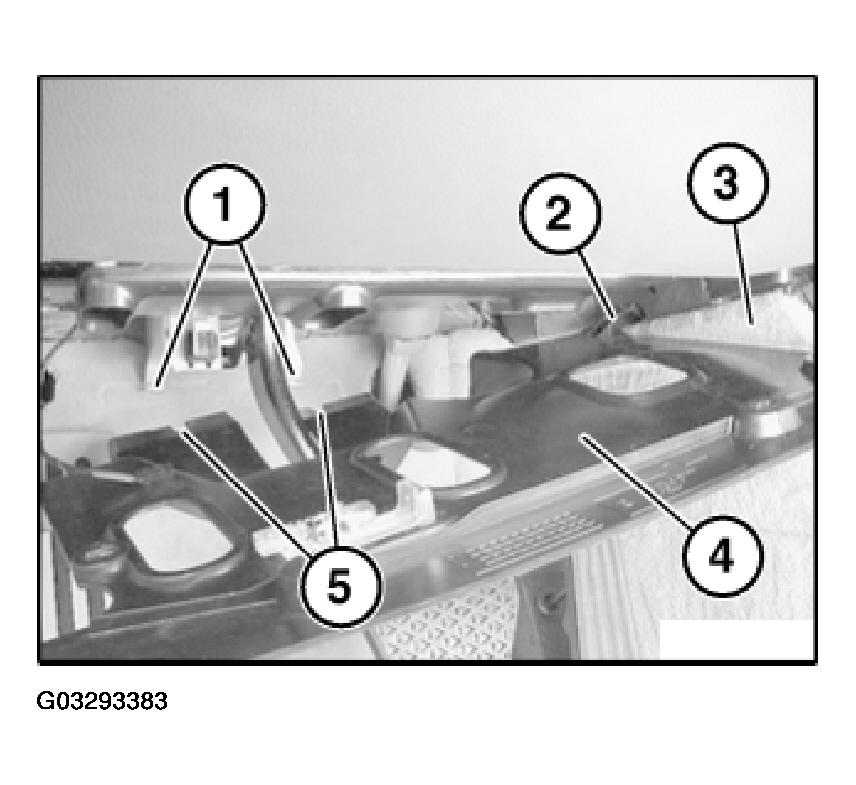

Fig 2: Attaching Hook To Carpet Lining

Courtesy of BMW OF NORTH AMERICA, INC.
