64 11 911 Removing And Installing/Replacing Temperature Sensor For Heating Unit (Automatic A/C High)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY

Remove center console trim at front left. Refer to 51 16 195 REMOVING AND INSTALLING CENTER ARMREST (FRONT) .

Remove sound insulation for A/C unit at rear left.

Disconnect plug connection (1).

Pull out temperature sensor (2) in direction of arrow.

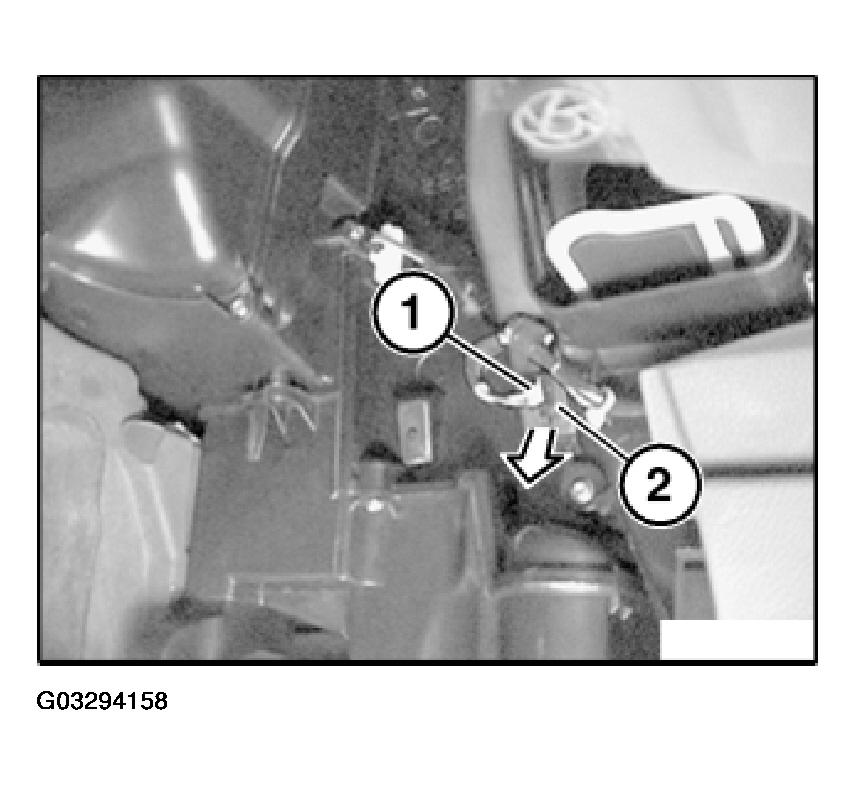

Fig 1: Removing Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

When installing temperature sensor, pay attention to guide (1) in mount (2).

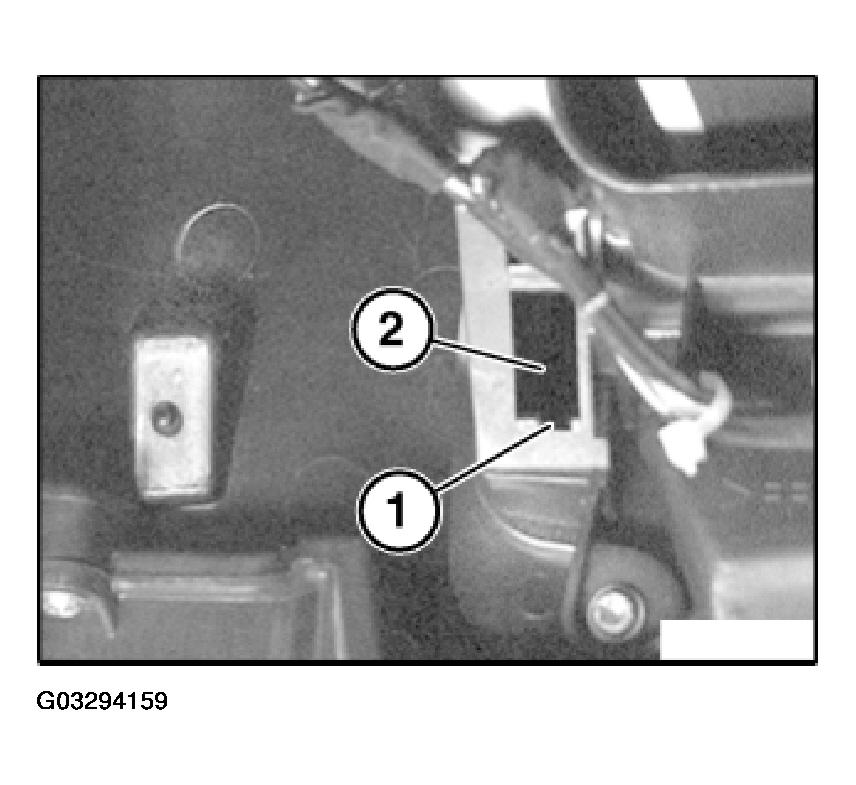

Fig 2: Locating Temperature Sensor Guide

Courtesy of BMW OF NORTH AMERICA, INC.
