64 11 889 Replacing Sensor Fan For Interior Temperature.
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove control panel for heater - A/C system. Refer to 64 11 377 REMOVING AND INSTALLING (REPLACING) CONTROL PANEL FOR HEATER - A/C SYSTEM .

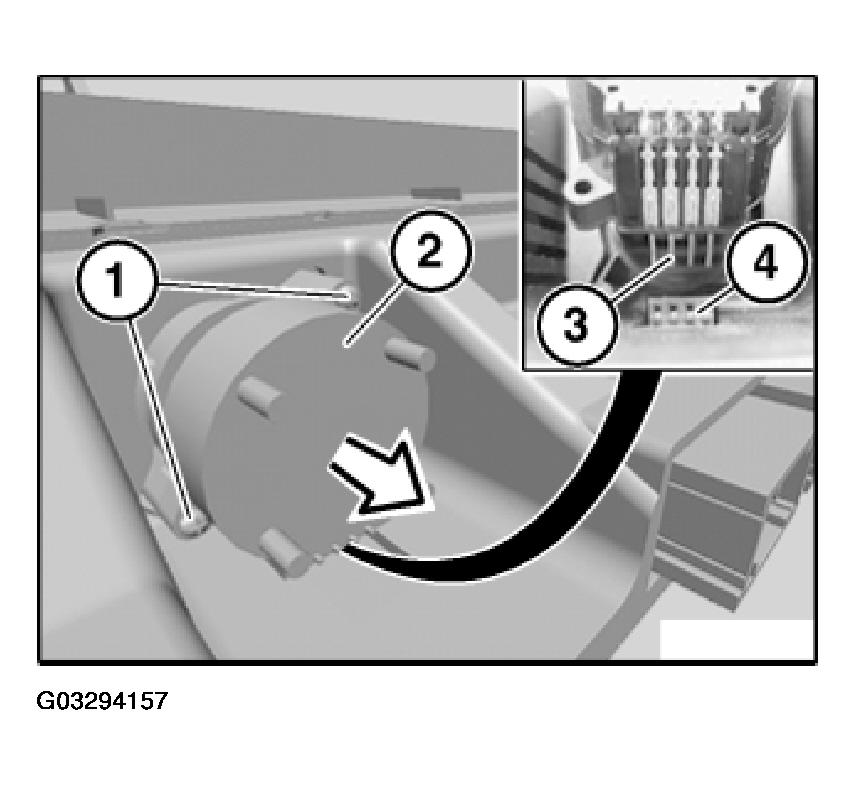

Release screws (1).
Pull out sensor blower for interior temperature (2) in direction of arrow.
Installation:
Make sure pins (3) are correctly seated in base (4).
