64 11 377 Removing And Installing (Replacing) Control Panel For Heater - A/C System

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove and install right trim on instrument panel. Refer to 51 45 263 REMOVING AND INSTALLING/REPLACING INSTRUMENT PANEL TRIM ON RIGHT .
Remove and install center trim on instrument panel. Refer to 51 45... REMOVING AND INSTALLING/REPLACING CENTER INSTRUMENT PANEL TRIM .

Lever out clips (1).

Pull out control panel for heater - A/C system (2) in direction of arrow.

Disconnect plug connections behind and remove control panel for heater - A/C system (2).

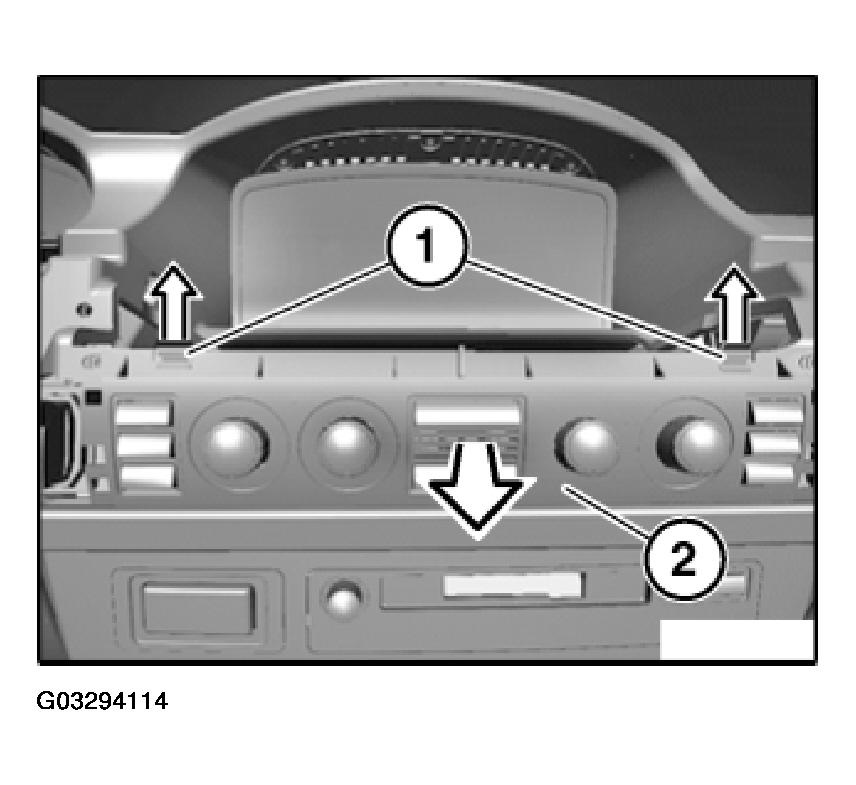

Fig 1: Removing Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming.
Coding.
Car & Key Memory.
CD "CIP".

Fig 2: Identifying Programming Unit (DIS)
Courtesy of BMW OF NORTH AMERICA, INC.
