64 11 864 Replacing Servodrive For Cold-Air Duct (On Rear Air Conditioner)
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove panel for luggage compartment partition. Refer to 51 47 141 REMOVING AND INSTALLING/REPLACING PANEL FOR LUGGAGE COMPARTMENT PARTITION .

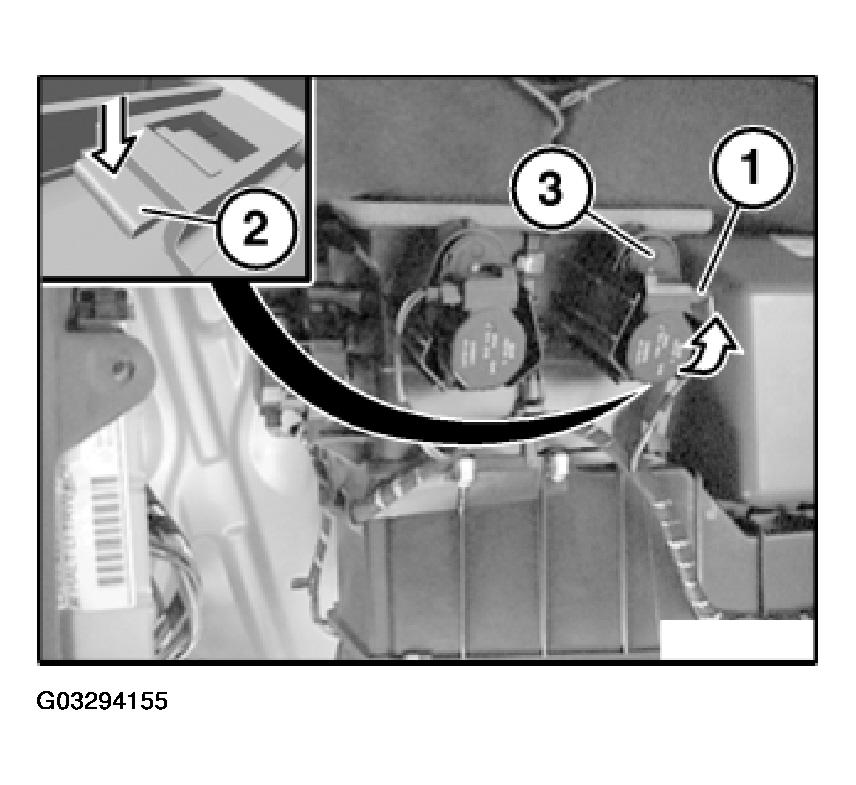

Disconnect plug connection (1).
Press lock (2) and unclip servodrive for cold-air duct (3) in direction of arrow.
Installation:
Follow repair instruction, refer to 64 11... INSTALLING SERVODRIVE .
