64 11 851 Replacing Servodrive For Left Rear Compartment Flap (Automatic A/C High)
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove servodrive for right rear compartment flap. Refer to 64 11 853 REPLACING SERVODRIVE FOR RIGHT REAR COMPARTMENT FLAP (AUTOMATIC A/C HIGH) .

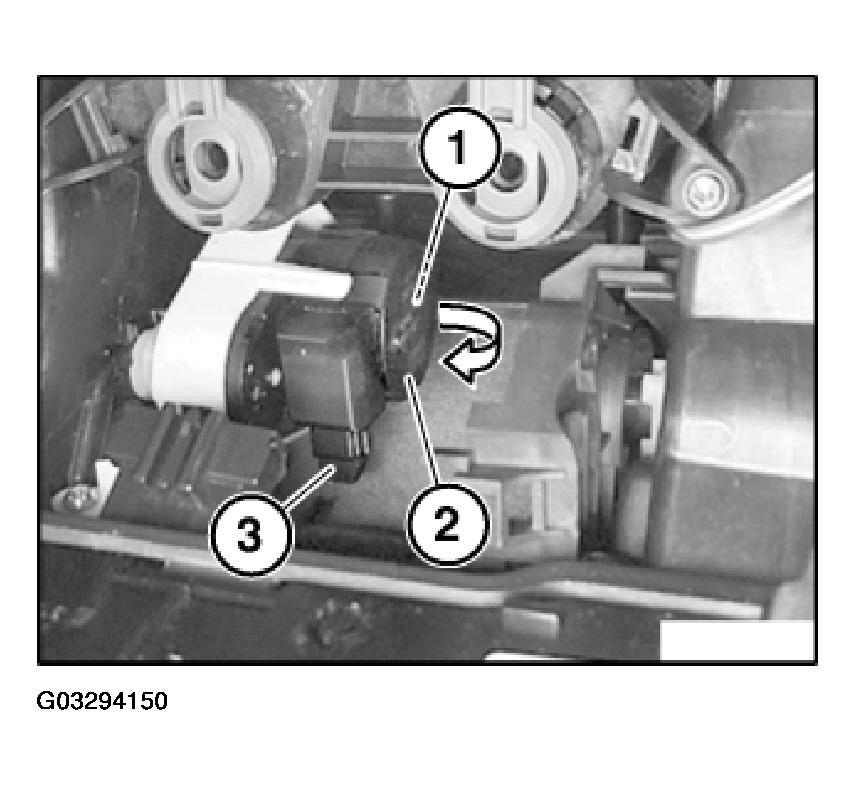

Press lock (1) and unclip servodrive for left rear compartment flap (2) in direction of arrow.
Disconnect plug connection (3) and remove servodrive for left rear compartment flap (2).
Installation:
If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.
