64 11 853 Replacing Servodrive For Right Rear Compartment Flap (Automatic A/C High)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove function carrier on trim for instrument panel. Refer to 51 16 170 REMOVING AND INSTALLING FUNCTION CARRIER ON PANEL FOR INSTRUMENT PANEL .

Unclip cover (1) at both retaining hooks (2) and remove in direction of arrow.

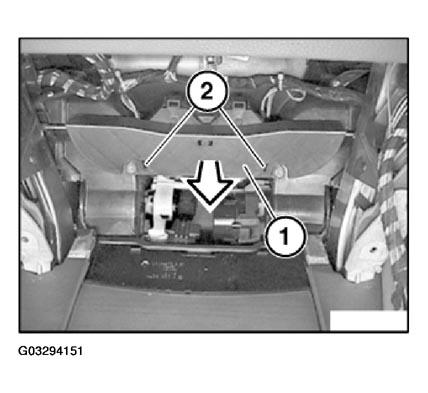

Fig 1: View Of Retaining Hooks On Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (1) and unclip servodrive for right rear compartment flap (2) in direction of arrow.

Disconnect plug connection (3) and remove servodrive for right rear compartment flap (2).

Installation:

If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.

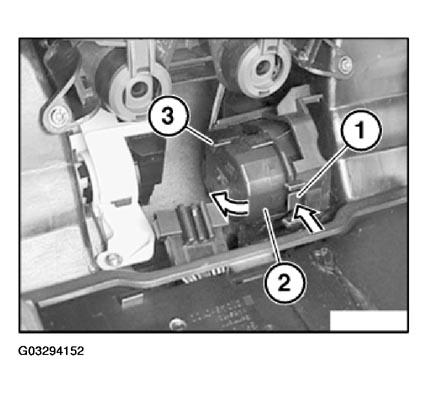

Fig 2: Removing Servodrive For Right Rear Compartment Flap

Courtesy of BMW OF NORTH AMERICA, INC.
