64 11 844 Replacing Servodrive For Ventilation/Defrosting Flaps (Automatic A/C High)
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove instrument panel trim. Refer to 51 45 030 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM .
NOTE:

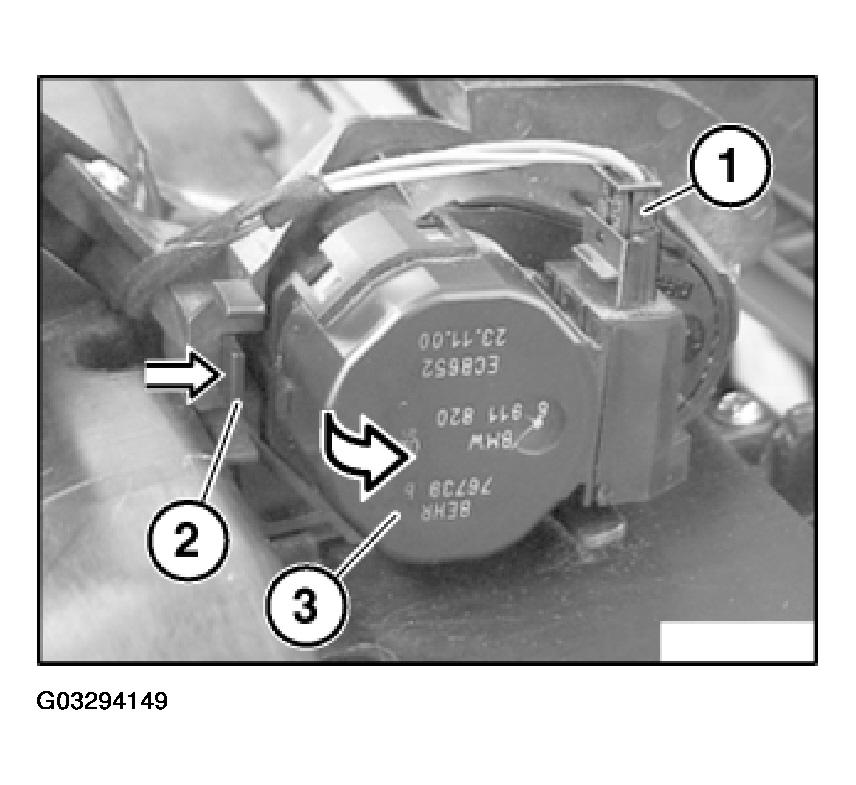

For purposes of clarity, graphic shows servodrive with heater removed.
Disconnect plug connection (1).
Press lock (2) and unclip servodrive (3) in direction of arrow.
Installation:
If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.
