64 11 821 Replacing Servodrive For Fresh Air Flaps (Automatic A/C High)
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove holder with servodrive for recirculated air flaps. Refer to 64 11 826 REPLACING SERVODRIVE FOR RECIRCULATED AIR FLAPS (AUTOMATIC A/C HIGH) .

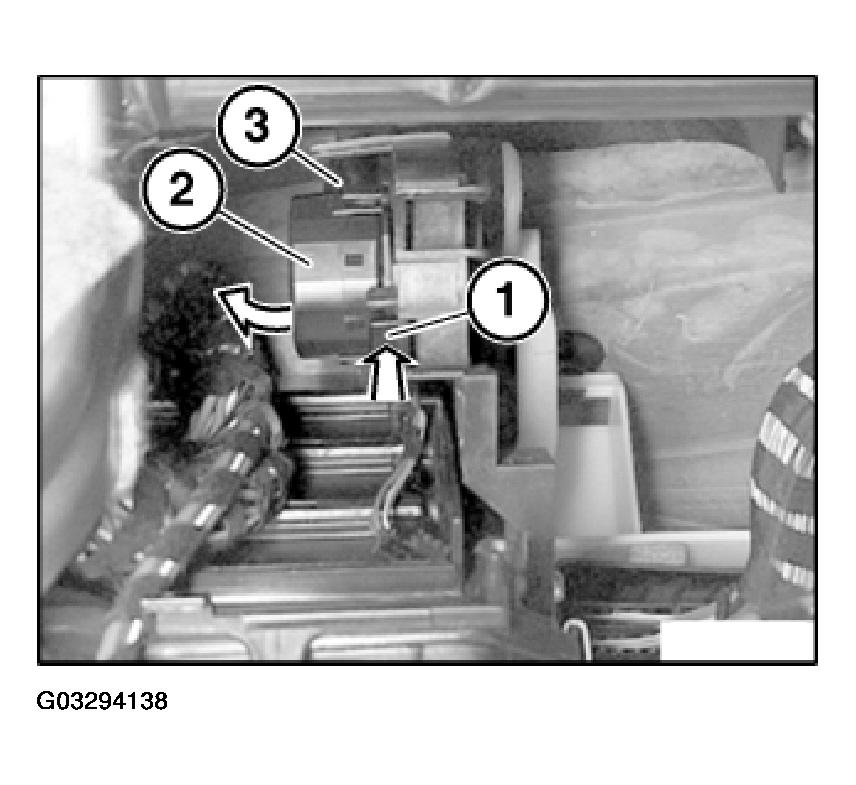

Press lock (1) and unclip servodrive (2) in direction of arrow.
Disconnect plug connection (3) and remove servodrive (2).
Installation:
If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.
