64 11 826 Replacing Servodrive For Recirculated Air Flaps (Automatic A/C High)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove battery negative lead. Refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND .
Remove glovebox. Refer to 51 16 366 REMOVING AND INSTALLING RIGHT GLOVEBOX WITH HOUSING and 51 16 367 REMOVING AND INSTALLING RIGHT GLOVEBOX (WITH ACTIVE KNEE PROTECTOR) WITH HOUSING .

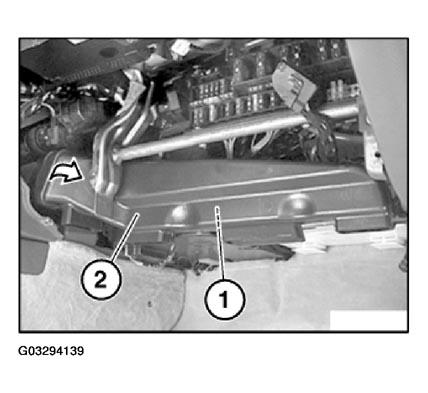

Release screw (1).

Detach right footwell air duct (2) in direction of arrow and remove towards bottom.

Fig 1: Removing Right Footwell Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

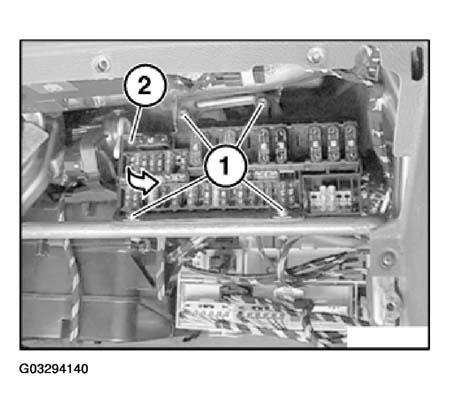

Release screws (1).

Fold back fuse box (2) in direction of arrow and place to one side.

Fig 2: View Of Fuse Box

Courtesy of BMW OF NORTH AMERICA, INC.

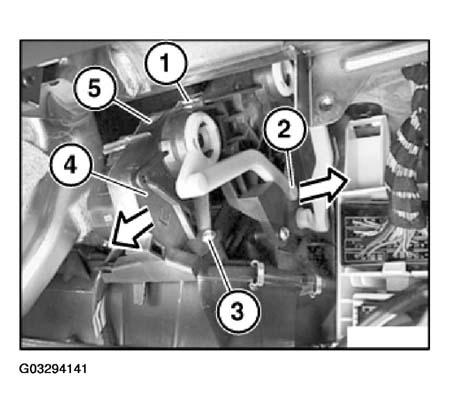

Remove retainer (1).

Unclip linkage (2) in direction of arrow.

Release screw (3) and pull back holder (4) in direction of arrow.

Disconnect plug connection (5) and remove holder (4).

Fig 3: Removing Retainer And Linkage

Courtesy of BMW OF NORTH AMERICA, INC.

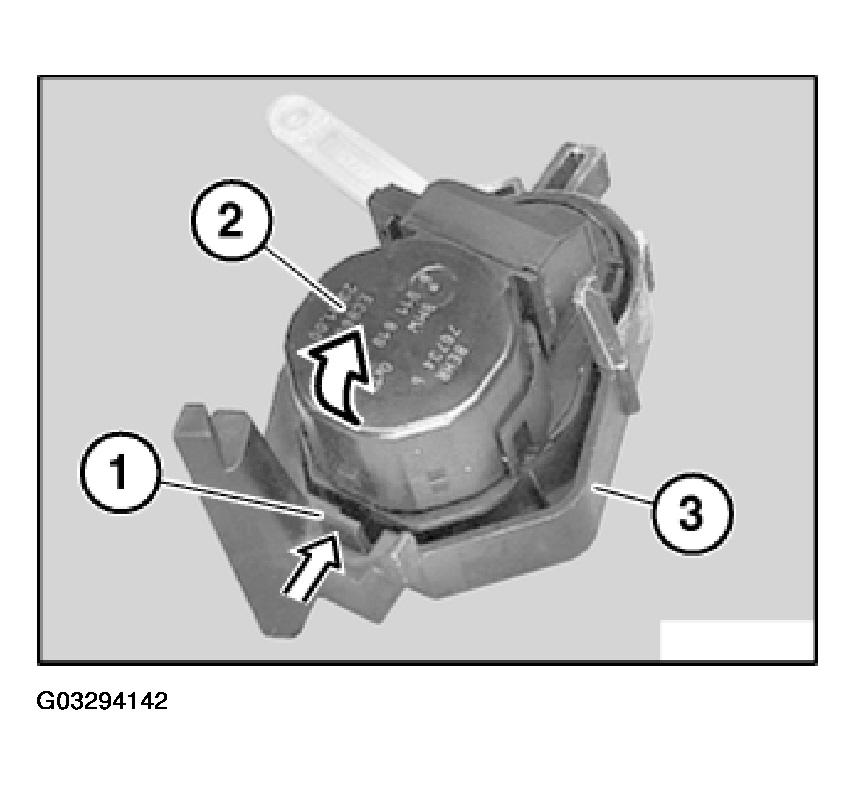

Press lock (1) and unclip servodrive (2) in direction of arrow from holder (3).

Installation:

If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.

Fig 4: Removing Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.
