64 11 818 Replacing Servodrive For Right Cold Air Duct (Automatic A/C High)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove servodrive for right hot air flap. Refer to 64 11 813 REPLACING SERVODRIVE FOR RIGHT HOT AIR FLAP (AUTOMATIC A/C HIGH) .

Release screw (1).

Remove holder for servodrive for right hot air flap (2).

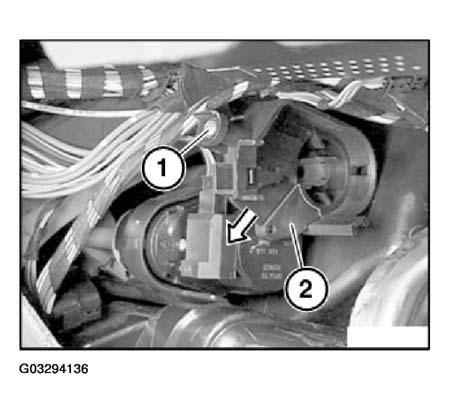

Fig 1: Removing Servodrive For Right Hot Air Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Press lock (2) and unclip servodrive for right cold air duct (3) in direction of arrow.

Installation:

If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.

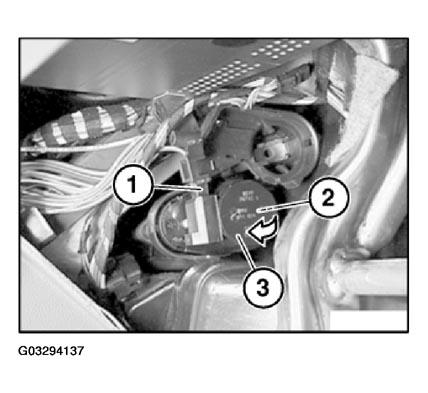

Fig 2: Disconnecting Servodrive Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
