64 11 813 Replacing Servodrive For Right Hot Air Flap (Automatic A/C High)
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove glovebox. Refer to 51 16 366 REMOVING AND INSTALLING RIGHT GLOVEBOX WITH HOUSING and 51 16 367 REMOVING AND INSTALLING RIGHT GLOVEBOX (WITH ACTIVE KNEE PROTECTOR) WITH HOUSING .

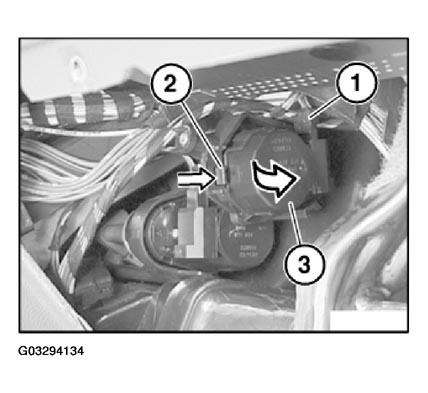

Disconnect plug connection (1).
Press lock (2) and unclip servodrive for right hot air flap (3) in direction of arrow.
Installation:
If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.
