64 11 482 Removing And Installing/Replacing Cooler Box Cooling Unit

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove complete cooler box. Refer to 64 11 475 REMOVING AND INSTALLING COMPLETE COOLER BOX .

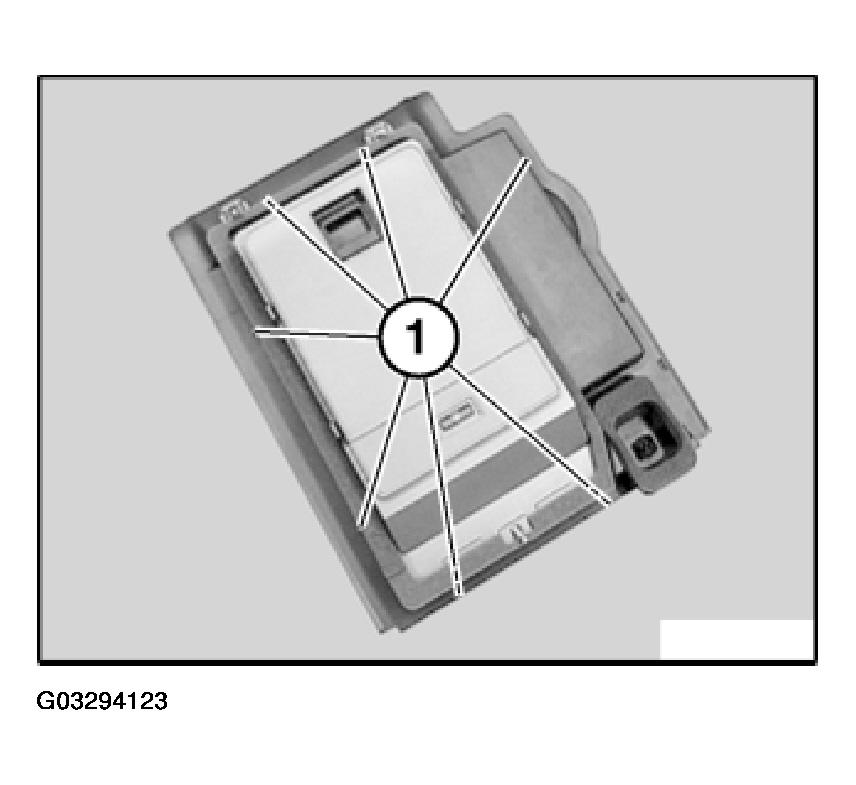

Release screws (1).

Fig 1: Identifying Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

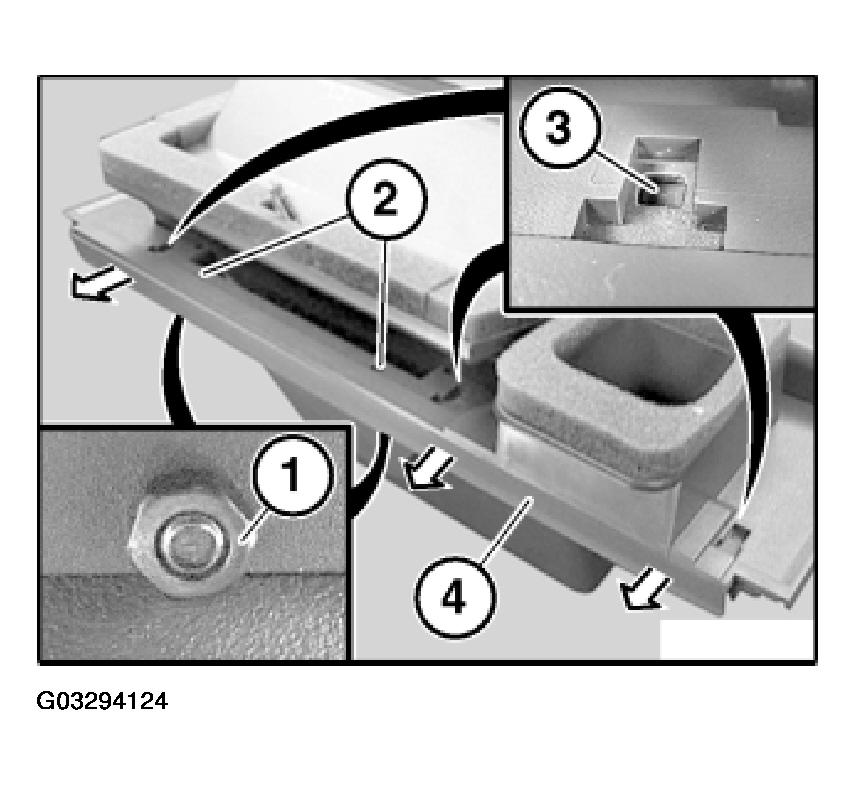

Unscrew nuts (1).

Remove screws (2).

Gently press catch (3) downwards and pull out strip (4) in direction of arrow.

Fig 2: Locating Cooler Box Catch

Courtesy of BMW OF NORTH AMERICA, INC.

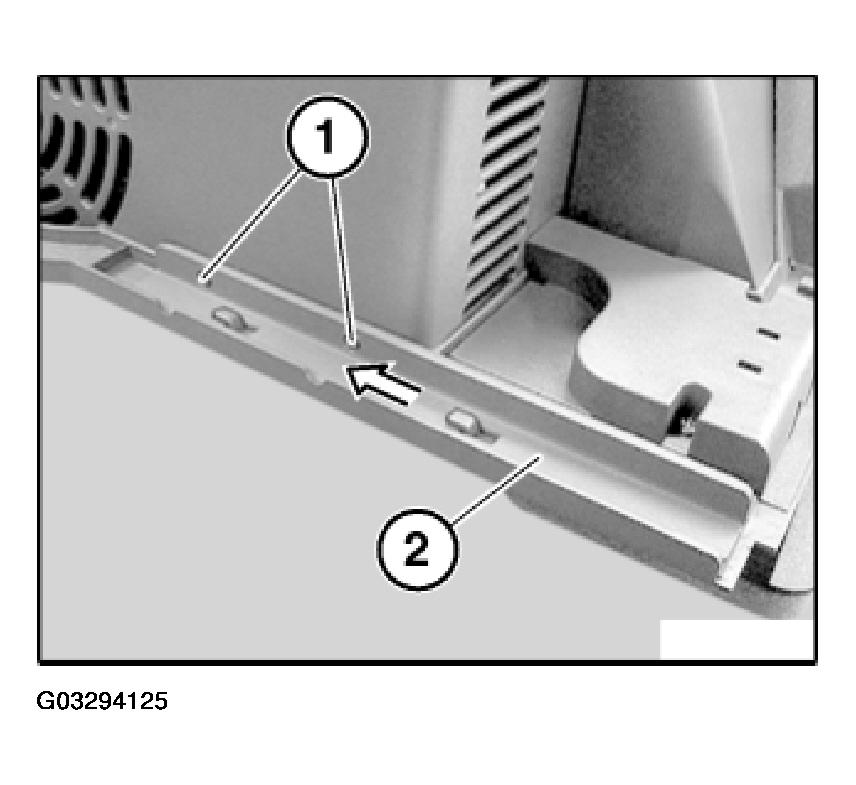

Release screws (1).

Move strip (2) in direction of arrow and remove.

Fig 3: Removing Trim Strip From Cooler Box

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Note different screw lengths:

1 = Long screw.
2 = Short screw.

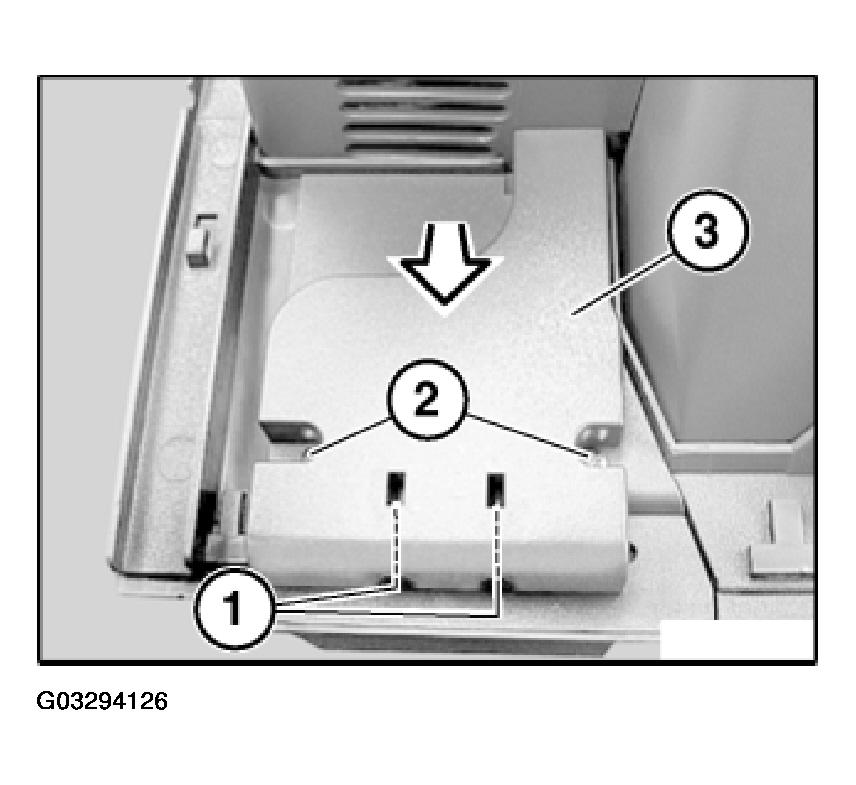

Remove screws (1) and (2).

Pull off cover (3) in direction of arrow.

Fig 4: Identifying Types Of Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

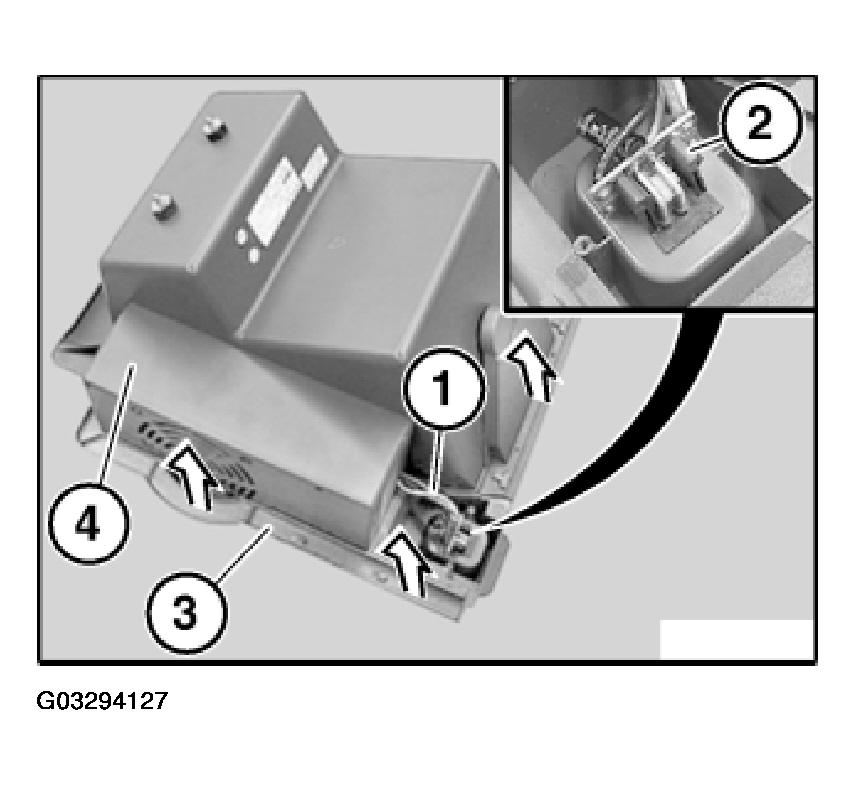

CAUTION: Protect wiring harness (1) against damage.

Unclip plug (2).

Detach frame (3) in direction of arrow from cooler box (4).

Installation:

Make sure wiring harness (1) is correctly laid.

Fig 5: Locating Plug In Cooler Box Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

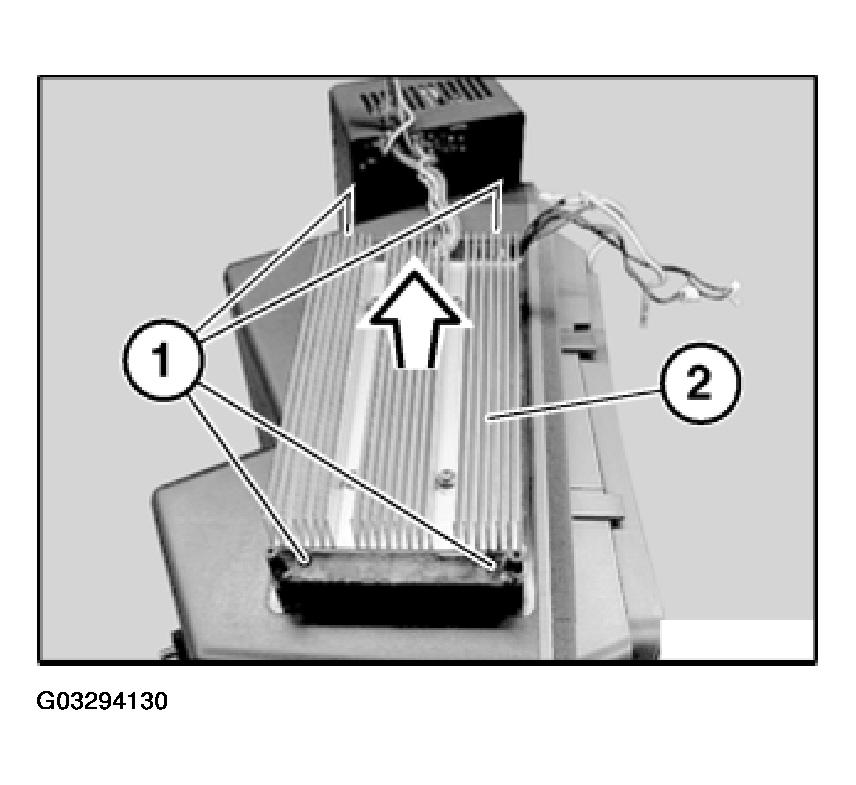

Release screws (1).

Remove cover (2) in direction of arrow.

Fig 6: Removing Cover Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

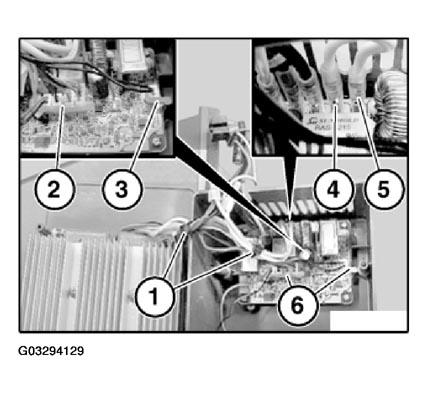

CAUTION: Note markings on cables for pin assignment on circuit board.

Detach cable straps (1).

Disconnect plug connections (2), (3), (4) and (5).

NOTE: If there are no markings on cables, note pin assignment:

2 = Red/black (CP1).
3 = Black/black (CP4).
4 = Yellow (S3).
5 = White (S4).

If necessary, cut through adhesive bead (6) on plug connections with a suitable knife.

If necessary, separate base from socket housing.

Fig 7: View Of Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

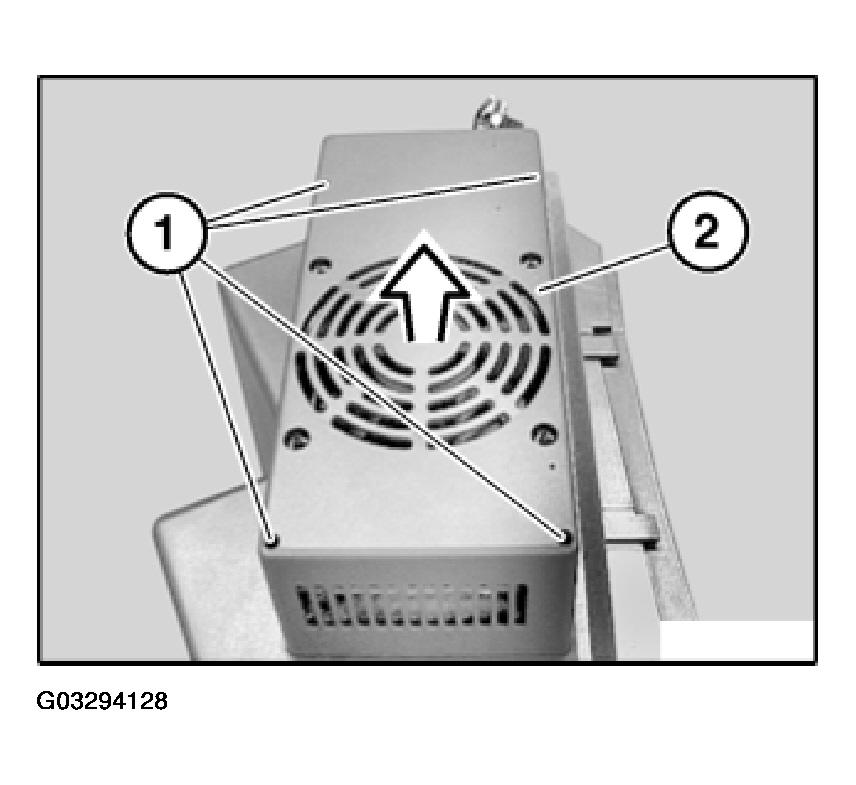

Release screws (1).

Installation:

Make sure cooling unit (2) is in correct installation position.

Remove cooling unit (2) in direction of arrow.

Fig 8: Removing Cooling Unit
