64 11 480 Removing And Installing/Replacing Cooler Box Button
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see HEATING AND AIR CONDITIONING - SPECIAL TOOLS .
Special Tools Required:
- 64 1 020
Necessary Preliminary Tasks:
- Remove cooler box lid. Refer to 64 11 478 REMOVING AND INSTALLING/REPLACING COOLER BOX LID .
WARNING:
When working with adhesive cleaners in enclosed rooms: Ensure room is well ventilated.
CAUTION:
Observe the following when handling adhesive areas: After cleaning, do not touch bonding area with bare hands. The adhesive areas must be dry and free from dust and grease. After cleaning, do not touch bonding area with bare hands.

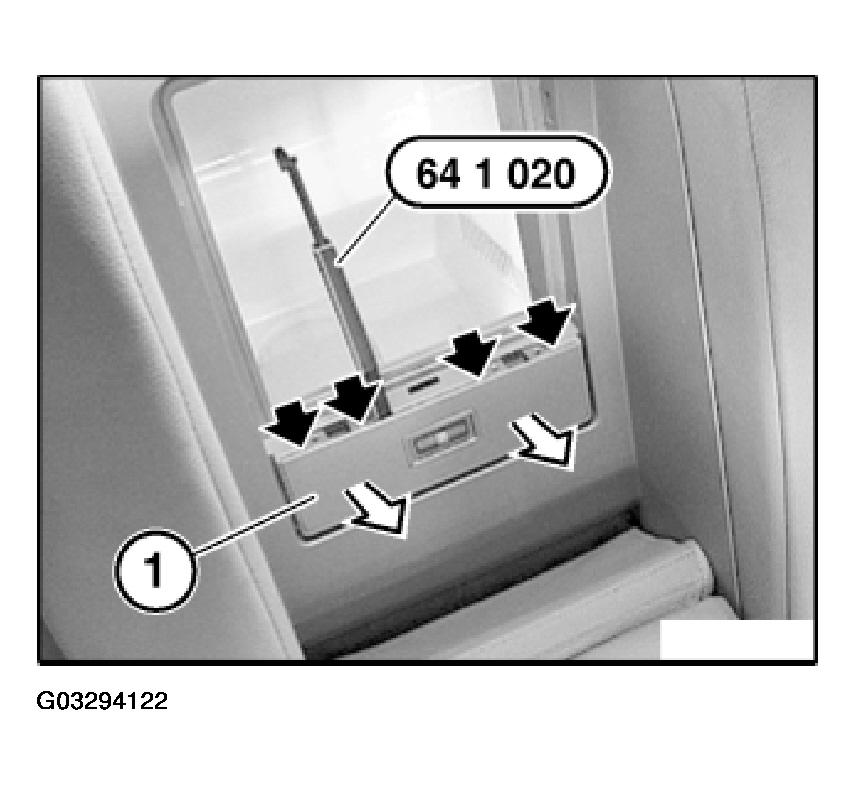

Carefully lever out cover (1) with special tool 64 1 020 at marked areas.
Disconnect plug.
Installation:
Remove coarse adhesive residues from adhesive area of cooler box and degrease with adhesive cleaner.
Make sure button and cover (1) are correctly installed.
Press down cover (1) evenly.
