64 11 478 Removing And Installing/Replacing Cooler Box Lid

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Open cooler box lid (1).

Release screws (2).

Pull out cooler box lid (1) in direction of arrow and remove.

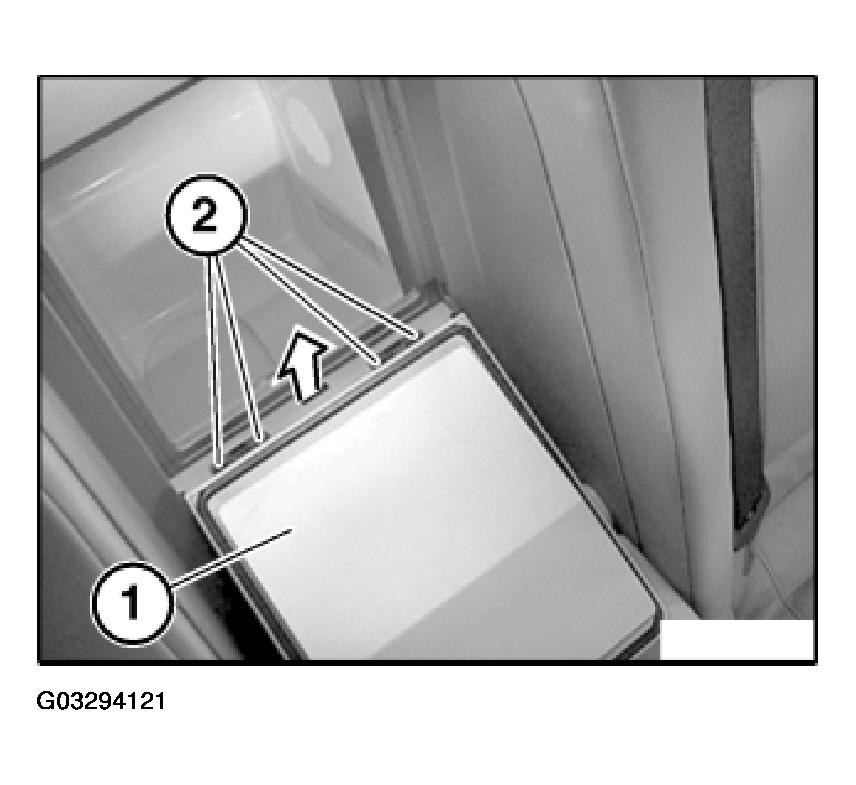

Fig 1: Locating Cooler Box Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.
