64 11 216 Removing And Installing/Replacing Rear A/C System Fan

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove panel for luggage compartment partition. Refer to 51 47 141 REMOVING AND INSTALLING/REPLACING PANEL FOR LUGGAGE COMPARTMENT PARTITION .

Unlock plug housing (1) and detach towards bottom.

Unfasten plug connection (2) and disconnect.

Release screws (3).

Pull out cover with rear A/C system fan (4) towards top.

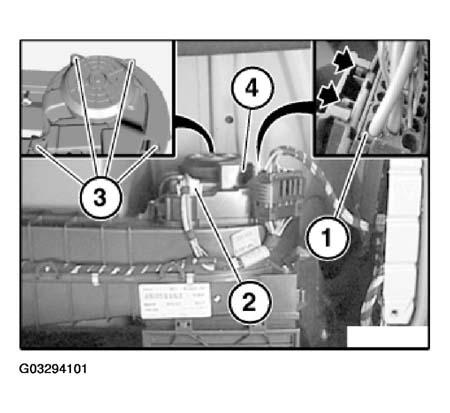

Fig 1: Identifying Plug Housing

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure rear A/C system fan against falling out.
Release screws (1).

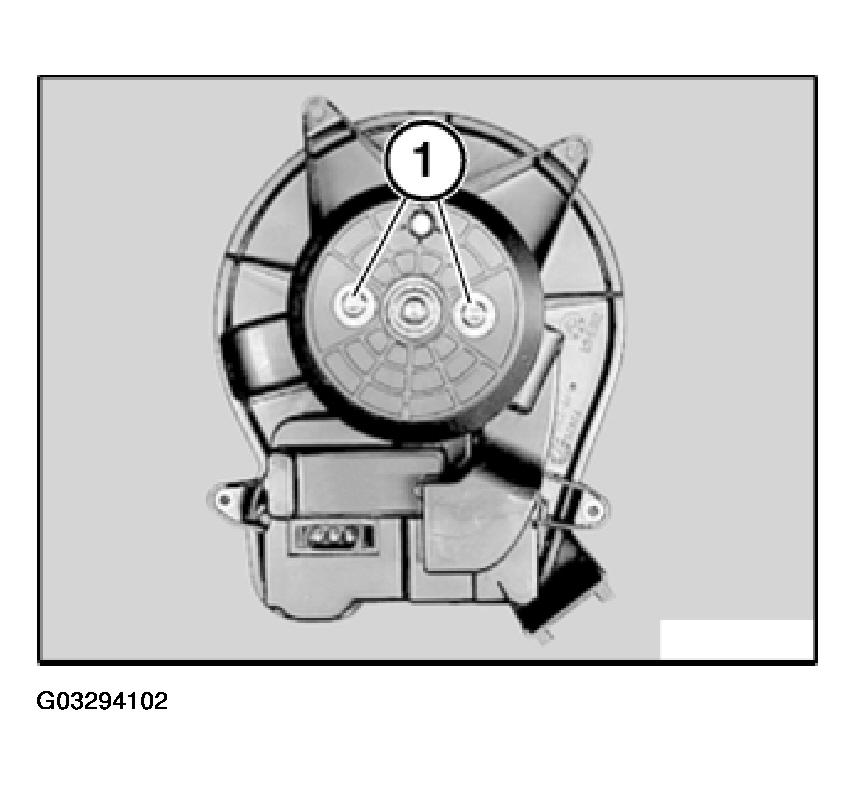

Fig 2: Locating Rear A/C System Fan Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove rear A/C system fan (2) and controller for rear A/C system fan (3) together in direction of arrow.

Unlock plug connection underneath and disconnect.

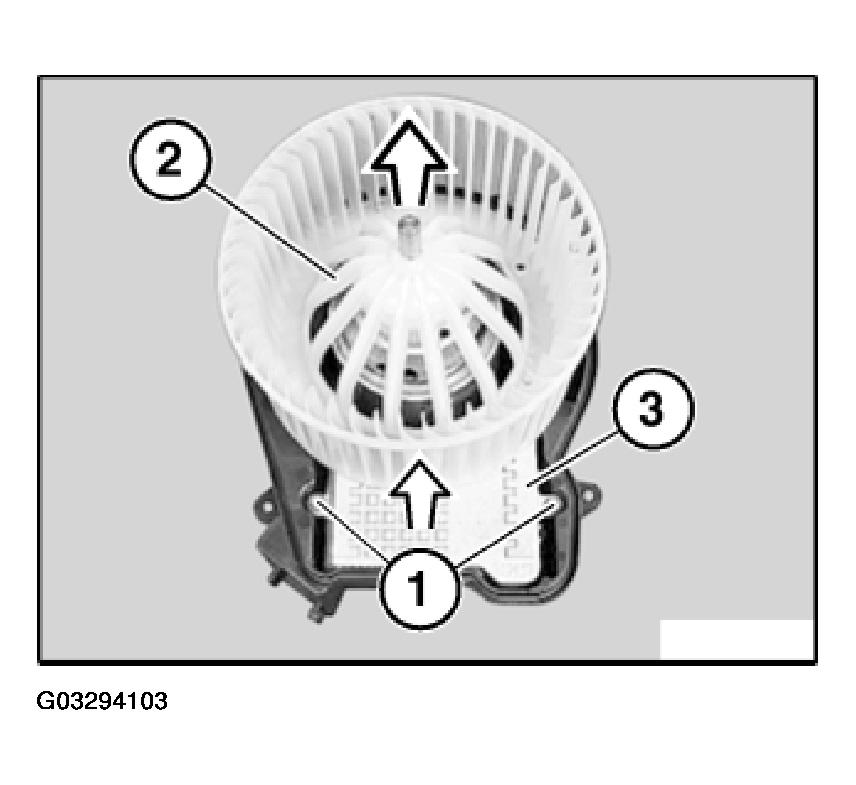

Fig 3: View Of Controller For Rear A/C System Fan

Courtesy of BMW OF NORTH AMERICA, INC.
