64 12 600 Removing And Installing/Replacing Fuel Pump
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see FUEL SYSTEM - SPECIAL TOOLS .
Special Tools Required:
- 13 3 010
Necessary Preliminary Tasks:
- Remove rear left underbody paneling. Refer to 51 47... REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT UNDERBODY PANELING .

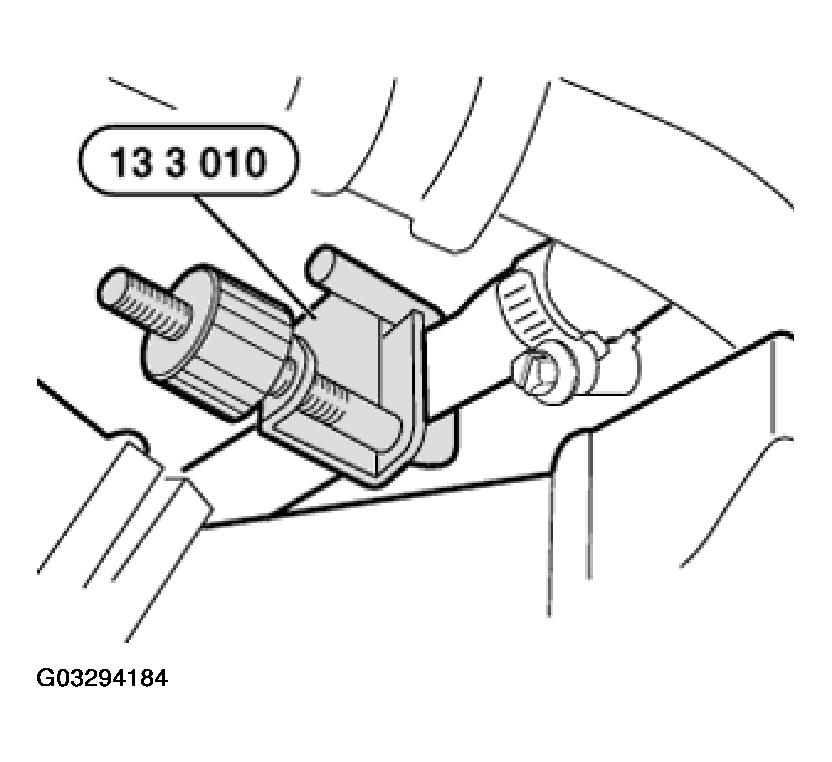

Seal off water hoses at fuel pump with special tool 13 3 010.
Recycling
Fuel escapes when fuel lines are detached. Have a suitable collecting container ready.
Catch and dispose of escaping fuel.
Observe country-specific waste-disposal regulations.

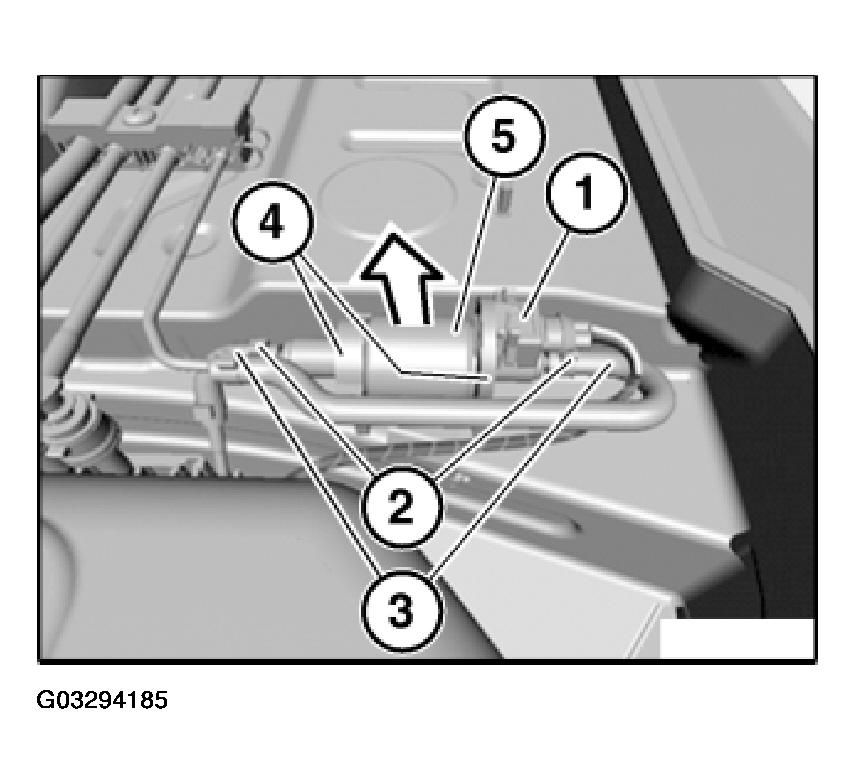

Unlock plug connection (1) and disconnect.
Loosen hose clamps (2).
Disconnect fuel hoses (3).
Pull holder (4) apart and remove fuel pump (5) in direction of arrow.
Installation:
Observe direction of flow of fuel pump (5).
