51 47... Removing And Installing/Replacing Rear Left Or Right Underbody Paneling
WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

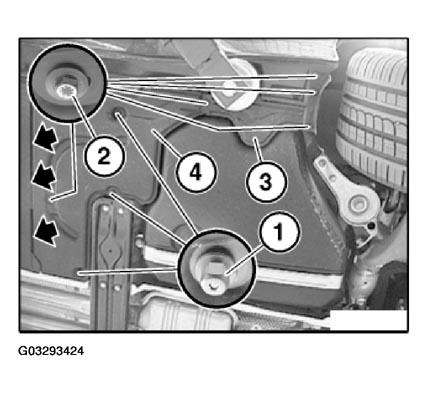

Secure rear stowage lip (3) and rear underbody paneling (4) against falling out.
Release expansion nuts (1).
Release screws (2).
Remove rear stowage lip (3) and rear underbody paneling (4).
Installation:
Make sure rear underbody paneling (4) is correctly seated in underbody paneling.
