64 12 525 Replacing Complete Independent Heater

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove complete independent heater. Refer to 64 12 021 REMOVING AND INSTALLING COMPLETE INDEPENDENT HEATER .

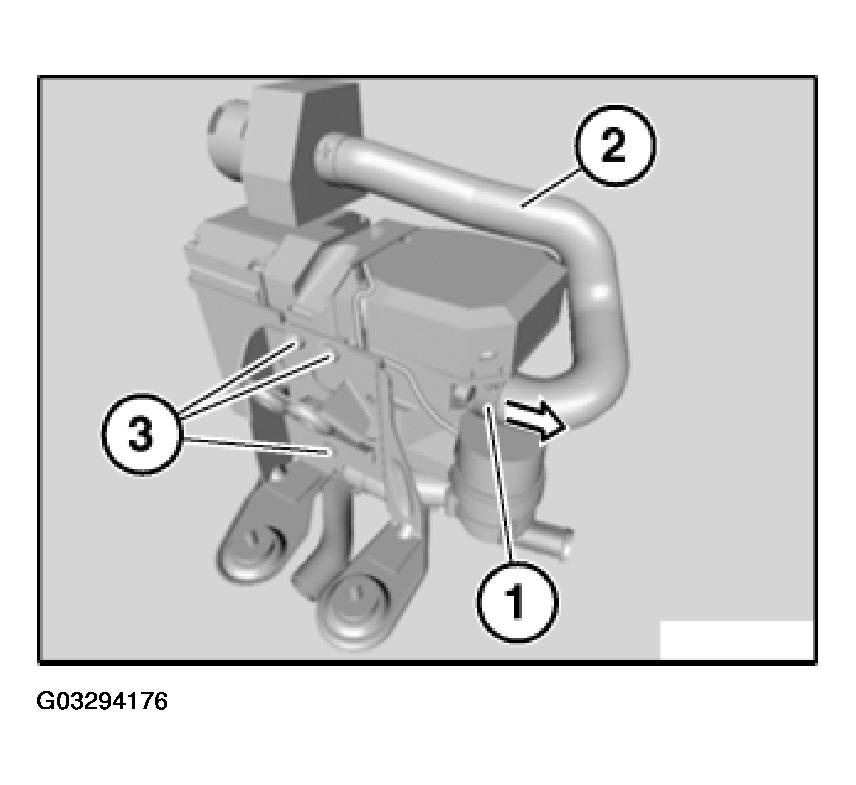

Unfasten hose clip (1).

Detach air intake hose (2) in direction of arrow.

Release screws (3).

Fig 1: Removing Air Intake Hose

Courtesy of BMW OF NORTH AMERICA, INC.

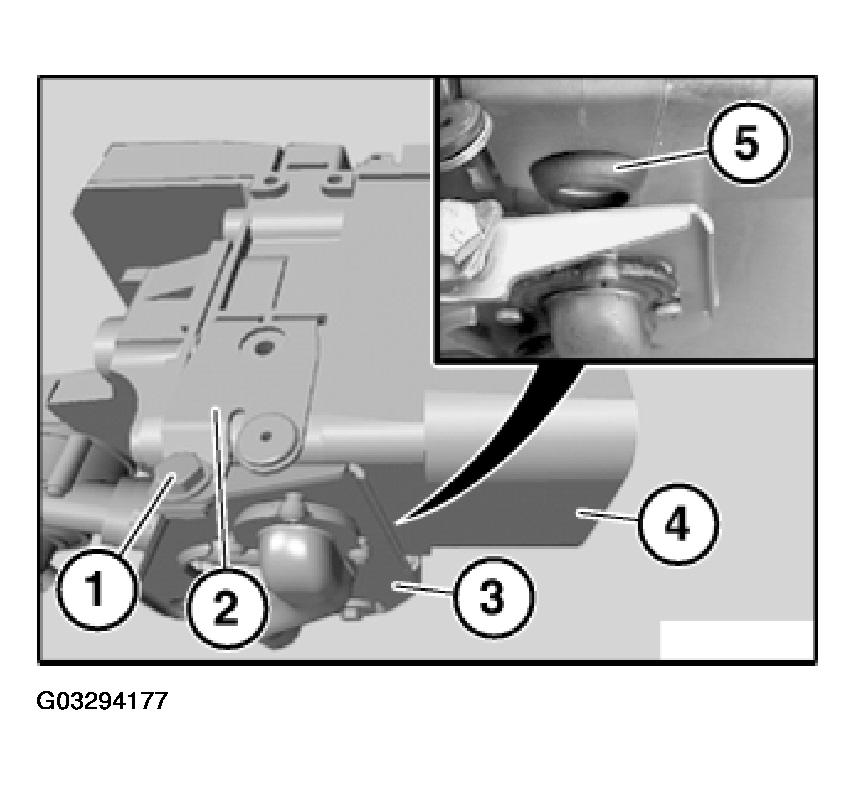

Release screw (1) slightly.

Pull counter holder (2) out of guide.

Disconnect independent heater holder (3) from independent heater (4).

Installation:

Replace exhaust gasket (5).

Fig 2: Identifying Exhaust Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Carry out coding/programming.

Observe following IDC specifications:

Programming.
Coding.
Car & Key Memory.
CD "CIP".

Fig 3: Identifying Coding/Programming Unit (DIS)
Courtesy of BMW OF NORTH AMERICA, INC.
