64 51 600 Removing And Installing/Replacing Evaporator For Rear Air Conditioner

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear air conditioner (with cooler box). Refer to 64 11 198 REMOVING AND INSTALLING REAR AIR CONDITIONER (WITH COOLER BOX) .

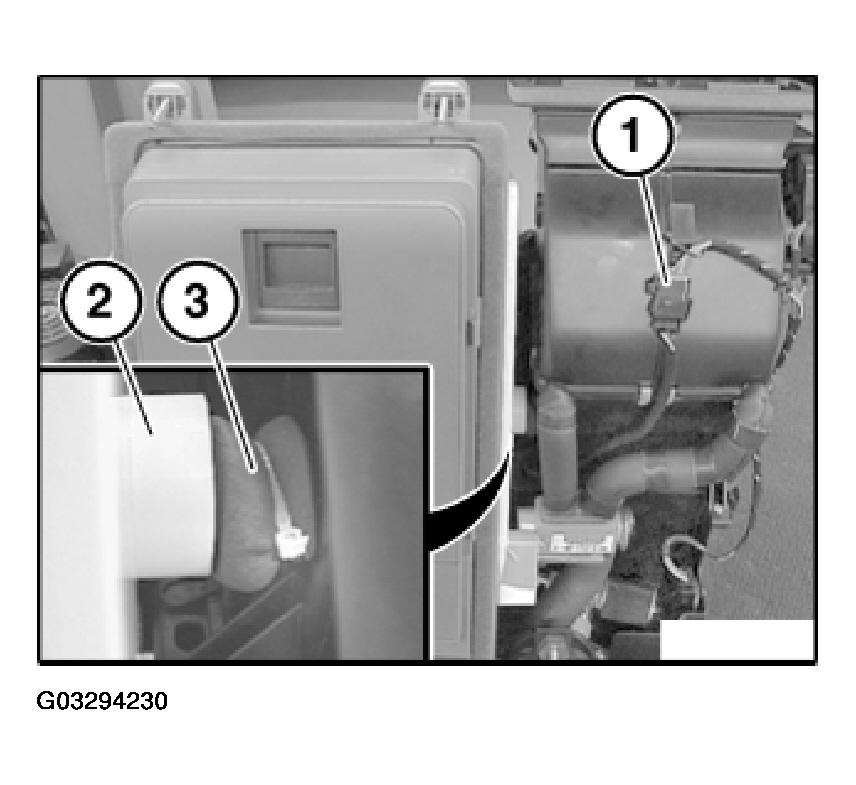

Disconnect plug connection (1).

Installation:

Make sure fitting (2) is correctly seated in mounting (3).

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

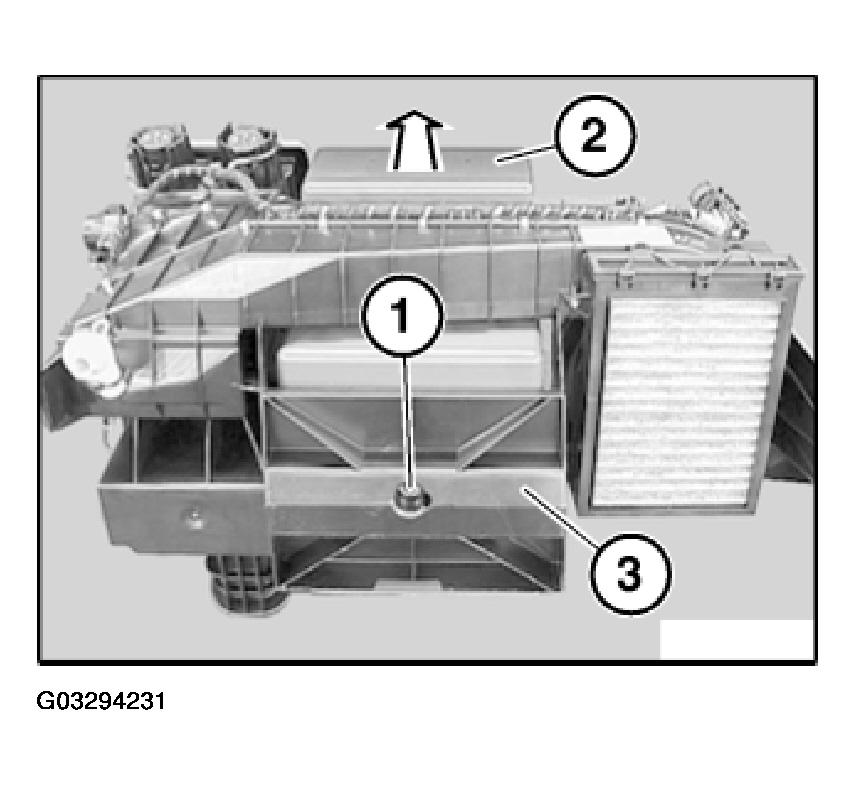

Unscrew nut (1).

Remove cooler box (2) in direction of arrow from rear air conditioner (3).

Fig 2: Removing Cooler Box

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) and disconnect.

Unlock plug housing (2) and detach towards bottom.

Release screws (3).

Release clip (4).

Remove cover (5) in direction of arrow.

Installation:

Make sure cover (5) is correctly seated on grommet (6).

Fig 3: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

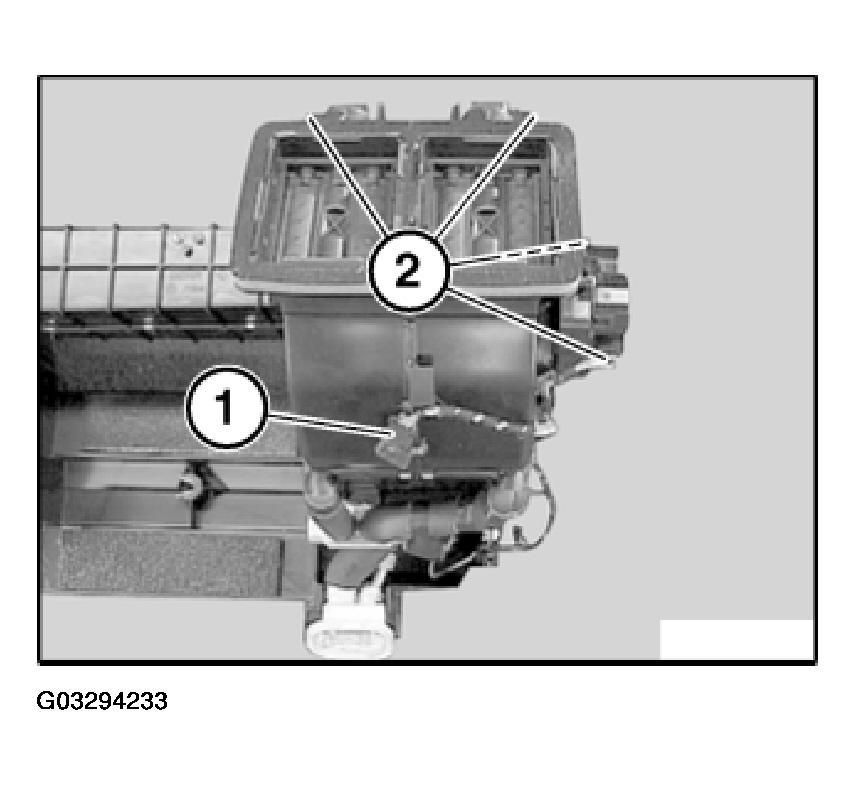

Cut through cable tie (1).

Disconnect plug connections (2).

Fig 4: Disconnecting Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

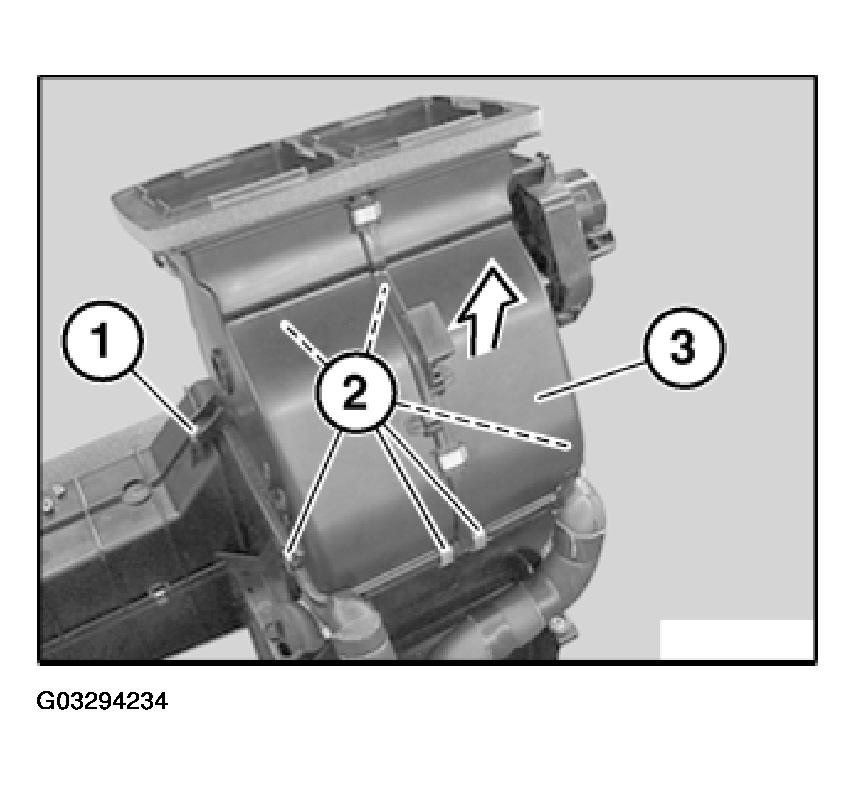

Release screw (1).

Release clips (2).

Remove distributor housing (3) in direction of arrow.

Fig 5: Removing Distributor Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

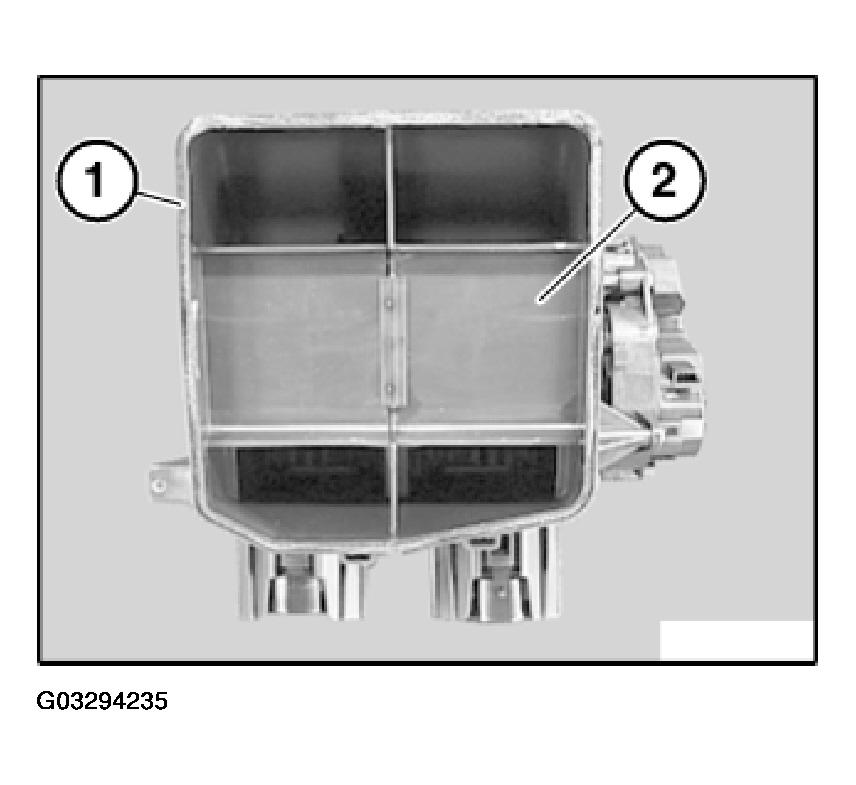

Make sure sealing frame (1) is correctly seated in groove of distributor housing (2).

If necessary, replace sealing frame (1).

Fig 6: Identifying Sealing Frame

Courtesy of BMW OF NORTH AMERICA, INC.

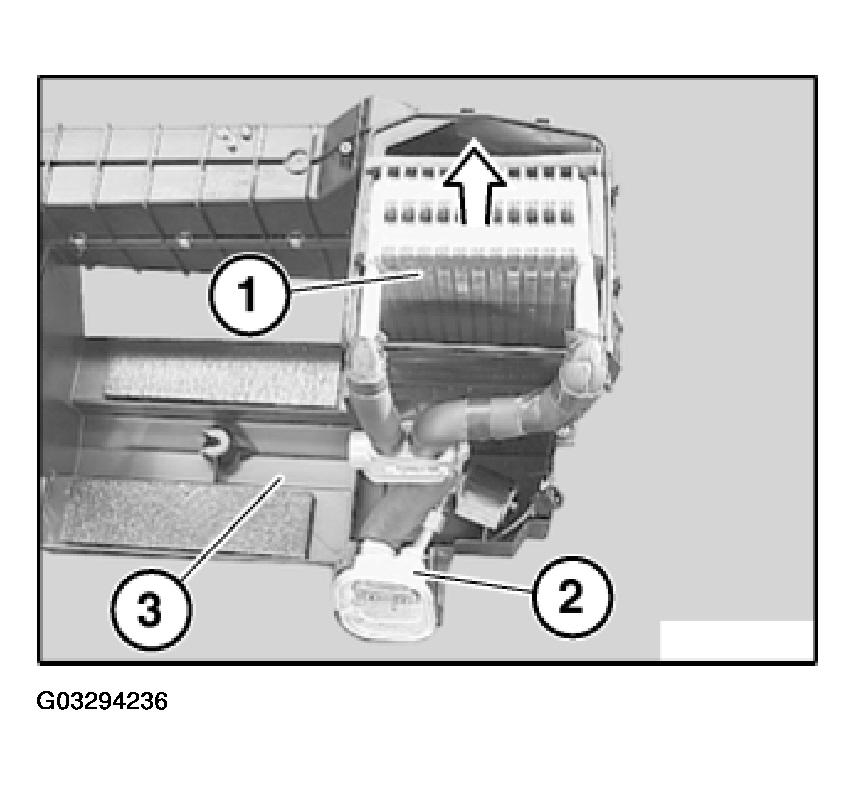

Pull evaporator for rear air conditioner (1) in direction of arrow out of rear air conditioner housing (3).

Installation:

Make sure grommet (2) is correctly seated in rear air conditioner housing (3).

Fig 7: Locating Rear Air Conditioner Housing Grommet

Courtesy of BMW OF NORTH AMERICA, INC.

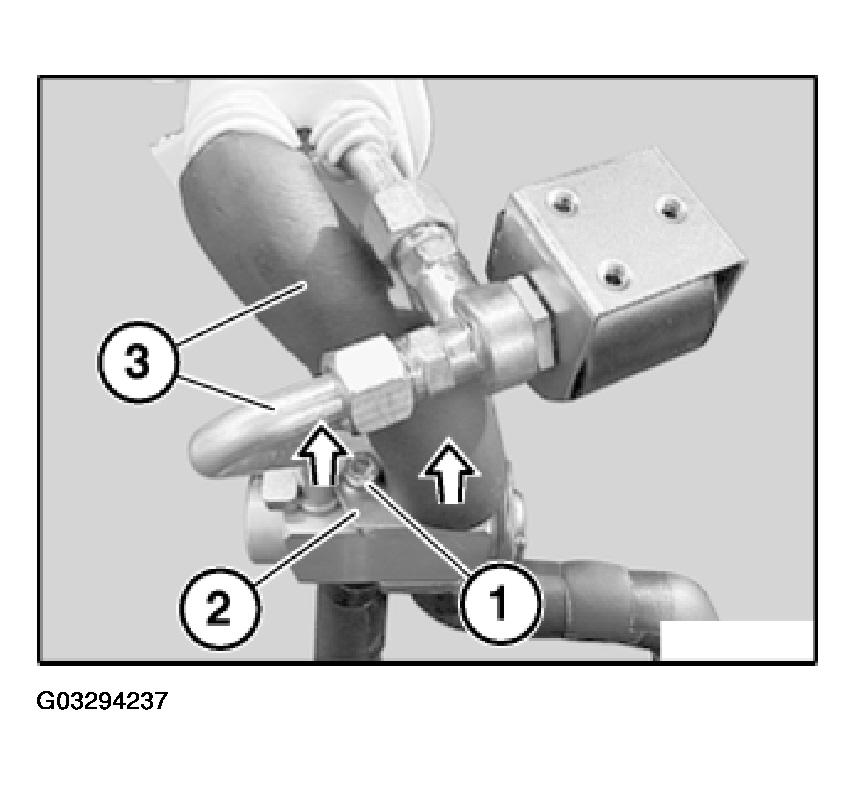

Release screw (1).

Remove plate (2).

Pull out refrigerant lines (3) in direction of arrow.

Installation:

Replace sealing rings.

Fig 8: Removing Refrigerant Lines

Courtesy of BMW OF NORTH AMERICA, INC.

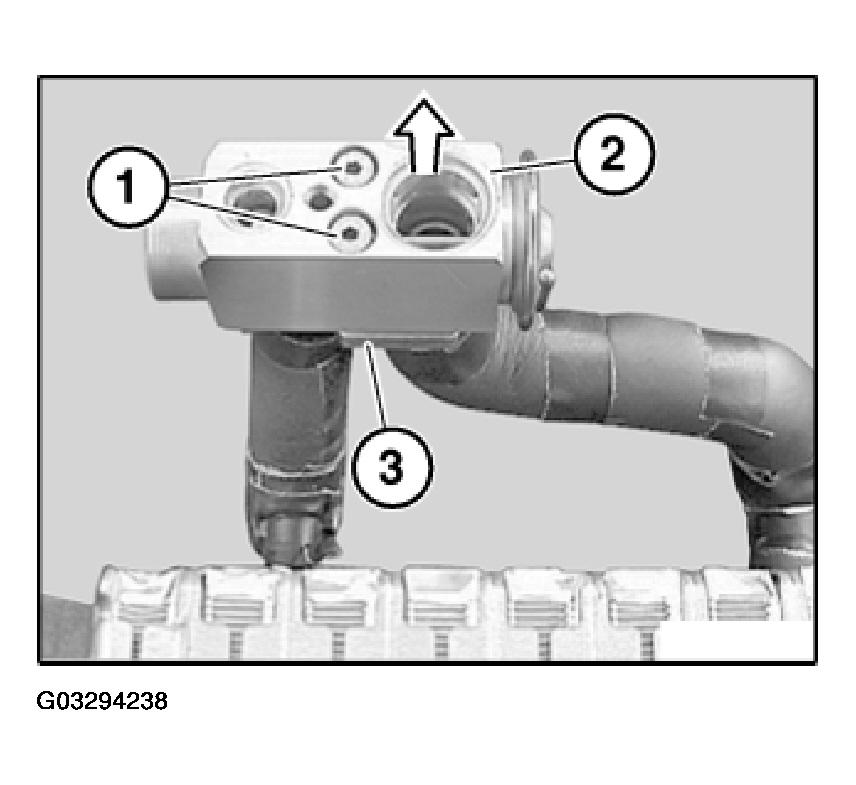

Release screws (1).

Pull out expansion valve (2) in direction of arrow.

Remove plate (3).

Installation:

Replace sealing rings.

Fig 9: Identifying Expansion Valve

Courtesy of BMW OF NORTH AMERICA, INC.
