64 51 527 Removing And Installing/Replacing Expansion Valve (With Rear A/C System)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Draw off refrigerant from A/C system. Refer to 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM (R 134A) .
Remove expansion valve cover. Refer to 64 51 525 REMOVING AND INSTALLING/REPLACING EXPANSION VALVE (AUTOMATIC A/C HIGH) .
Remove trim in center console at front left. Refer to 51 16 195 REMOVING AND INSTALLING CENTER ARMREST (FRONT)

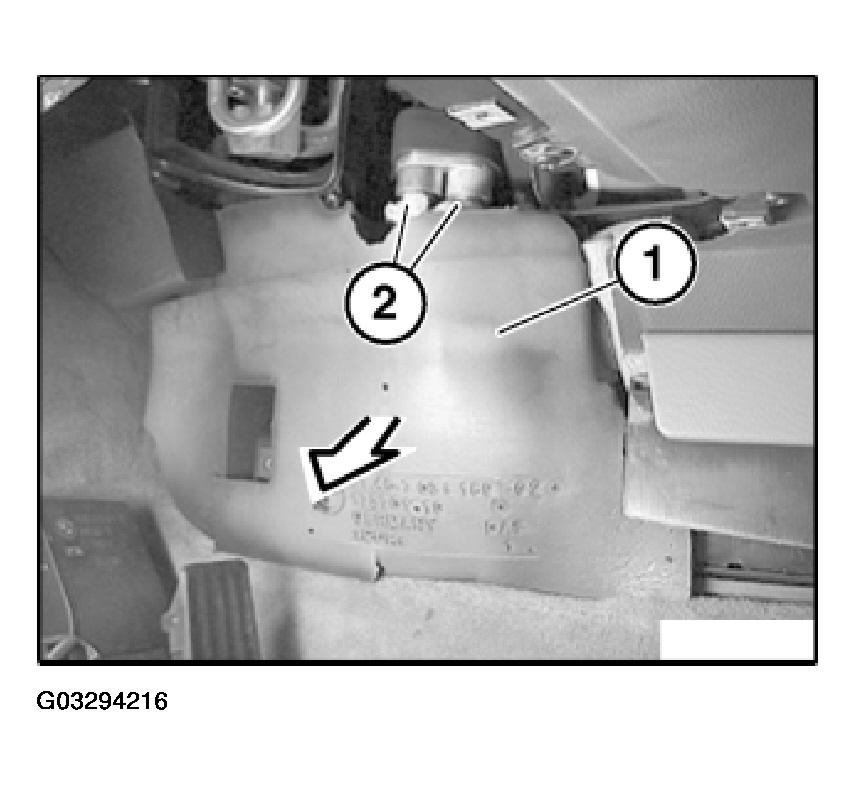

Remove foam cover (1) in direction of arrow.

Expose screw heads (2).

Fig 1: Removing Foam Cover

Courtesy of BMW OF NORTH AMERICA, INC.

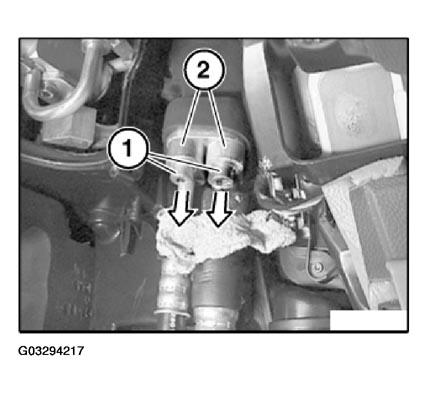

Release screws (1).

Detach refrigerant lines (2) in direction of arrow.

Installation:

Replace sealing rings.

Fig 2: Identifying Refrigerant Lines Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

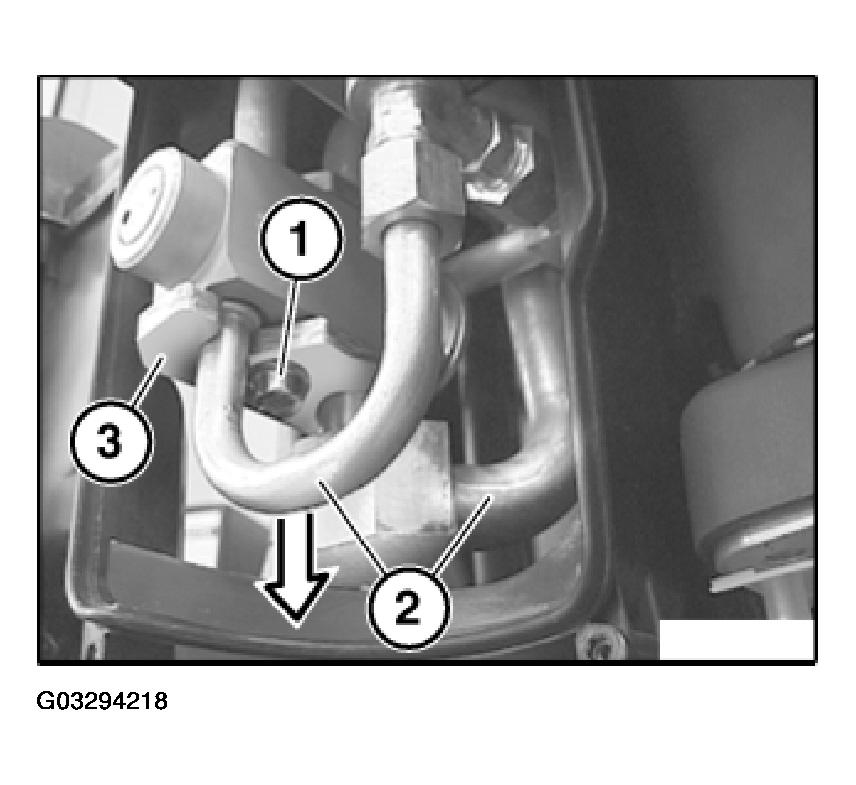

Release screw (1).

Detach refrigerant lines (2) in direction of arrow.

Remove plate (3).

Installation:

Replace sealing rings.

Fig 3: View Of Refrigerant Lines

Courtesy of BMW OF NORTH AMERICA, INC.

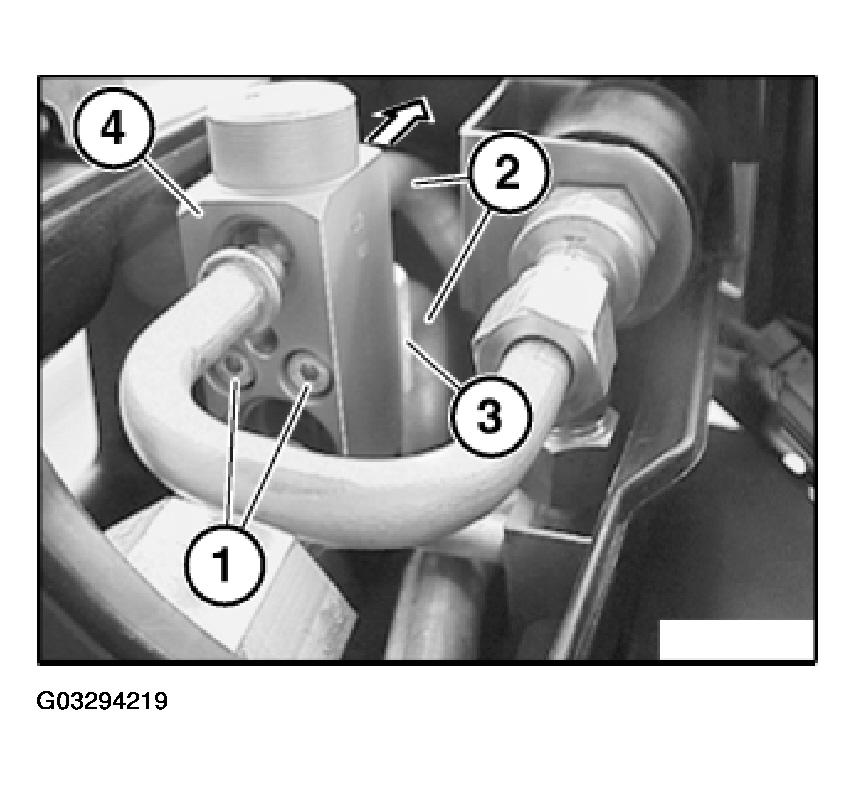

Release screws (1).

Detach refrigerant lines (2) in direction of arrow.

If necessary, remove plate (3).

Remove expansion valve.

Fig 4: Locating Expansion Valve

Courtesy of BMW OF NORTH AMERICA, INC.
