64 51 514 Replacing Valve For Rear A/C System

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Draw off refrigerant from A/C system. Refer to 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM (R 134A) .
Remove expansion valve cover. Refer to 64 51 525 REMOVING AND INSTALLING/REPLACING EXPANSION VALVE (AUTOMATIC A/C HIGH) .

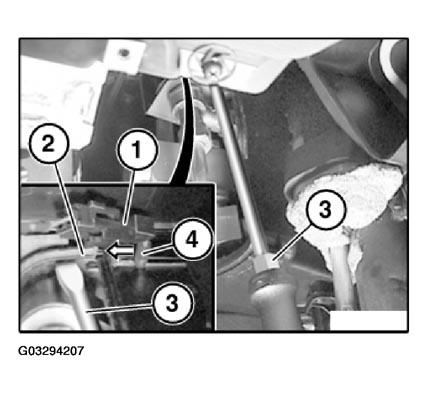

Unlock plug connection (1) and disconnect.

Press housing half (2) upwards slightly with a suitable screwdriver (3).

Feed out cable (4) in direction of arrow.

Installation:

Make sure housing half (2) is correctly seated on housing.

Fig 1: Identifying Housing Half

Courtesy of BMW OF NORTH AMERICA, INC.

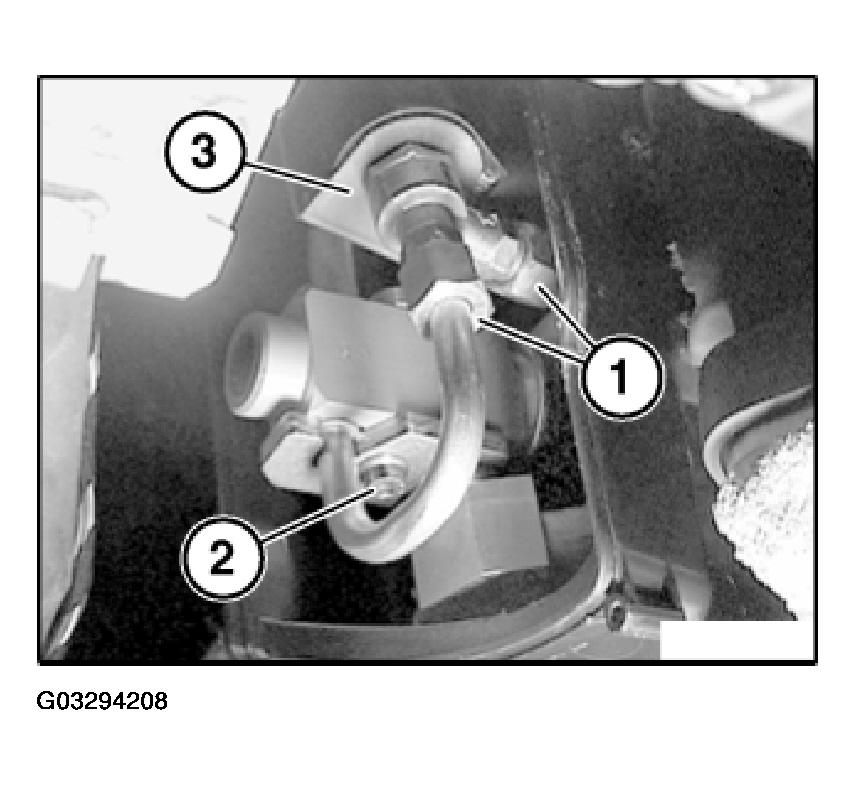

Unscrew nuts (1).

Release screw (2) slightly.

Pull out valve for rear A/C system (3).

Installation:

Replace sealing rings.

Fig 2: Removing Valve For Rear A/C System

Courtesy of BMW OF NORTH AMERICA, INC.
