63 99 491 Replacing Light Module For Rear Left Or Right Outside Door Handle Lighting (From 09/2004)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove outside handle on rear door. Refer to 51 22 170 REMOVING AND INSTALLING/REPLACING OUTSIDE HANDLE ON LEFT OR RIGHT BACK DOOR .

Release screws (2).

Disconnect plug connection (3).

Remove light module (1).

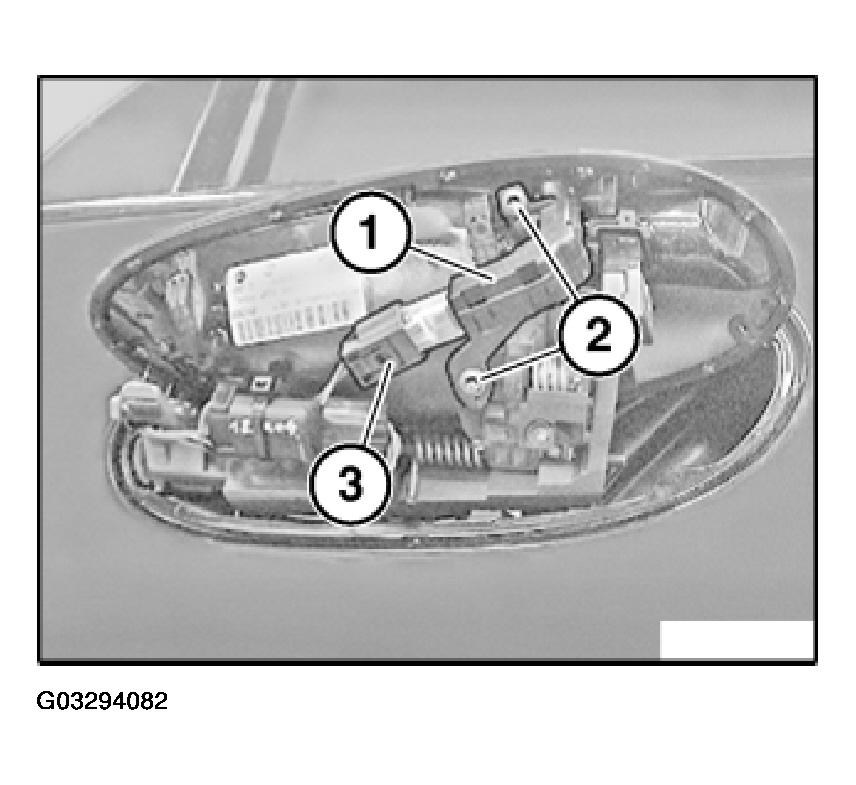

Fig 1: Light Module, Retaining Screws And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
