63 99 486 Replacing Light Module For Front Left Or Right Outside Door Handle Lighting (From 09/2004)

WARNING: This page is about a different car, the 2006 BMW 760Li, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove outside handle. Refer to 51 21 795 DISASSEMBLING AND ASSEMBLING OUTSIDE HANDLE FOR PAINTING .

Disconnect plug connection.

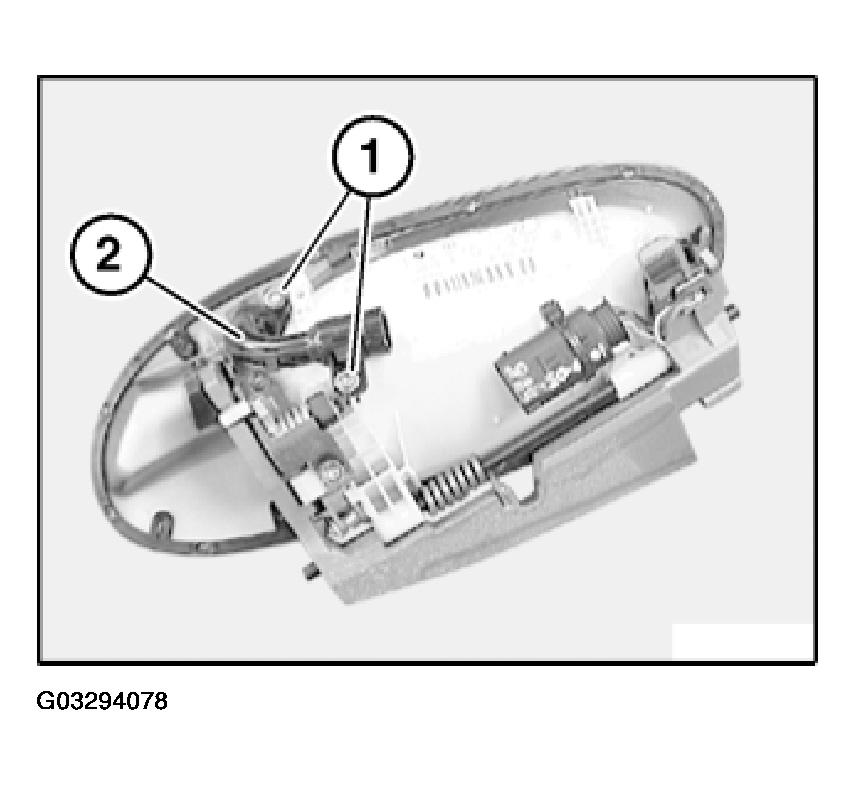

Release screws (1).

Remove light module (2) for outside door handle lighting (5).

Fig 1: Light Module And Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seals (2) of light module for outside door handle lighting (1) must not be damaged or missing.

Fig 2: Seals And Outside Door Handle Light Module

Courtesy of BMW OF NORTH AMERICA, INC.
